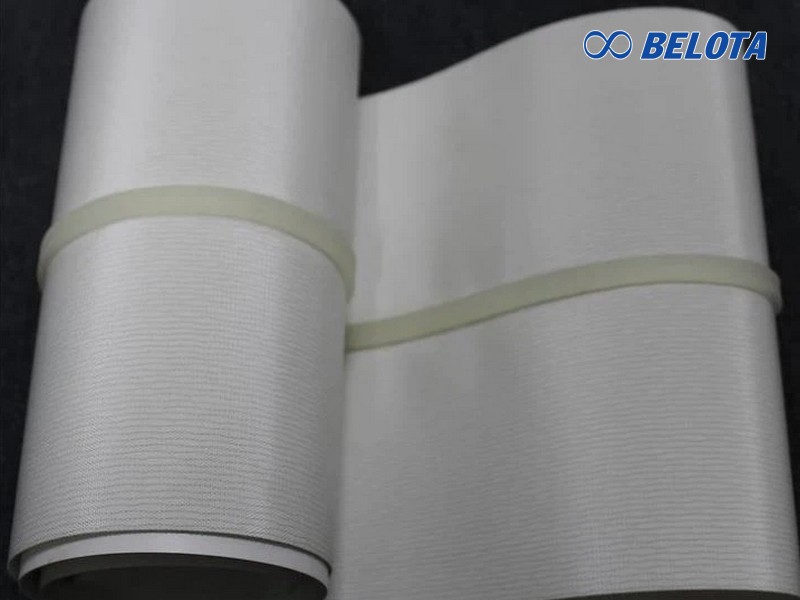

PU V-Guide Conveyor Belts are designed with raised profiles on the belt surface to increase friction, prevent slipping, and keep products stable during transport. Depending on the type of guide profile, each belt is suitable for specific industrial applications. On the market today, common types include V-profile guides, U-guides, T-guides, block guides, and herringbone guides—each offering distinct advantages. Let’s explore them in detail with Belota.
General Structure of V-Guide Conveyor Belts
V-Guide Conveyor Belts help create physical barriers that stabilize and separate products during conveying, especially when handling slippery items or operating on steep inclines.
- Frame: Typically made from 304 stainless steel or aluminum for durability and corrosion resistance.
- PU Conveyor Belt: Offers excellent wear resistance, chemical resistance, and easy cleaning.
- Guide Profiles (V-Guide / T-Guide / Herringbone): Welded, pressed, or bonded onto the belt surface for tracking and product retention.
- Rollers: Steel or plastic rollers that reduce friction and enhance belt longevity.
- Drive & Control System: Includes motor, pulleys, sprockets, chains, PLC/inverter, sensors, and safety switches.
- Control Components: PLC, inverters, switches, sensors—managing belt speed, direction, and emergency stops.
Reference Technical Specifications
- PU layer thickness: 1.5 – 1.6 mm
- Belt width: 200 – 1,200 mm (customizable)
- Guide types: K6, K8, K10, K13
- Guide height (on belt surface): 3 – 15 mm
- Minimum pulley diameter (Dmin): depends on V-profile (e.g., K8 ≈ 40 mm, K13 ≈ 80 mm)
- Operating speed: 0.2 – 1.5 m/s
- Incline angle: 0°–35°, extendable to 45°–75° with additional support cleats
- Recommended roller diameter: ≥ 60 mm to reduce bending stress and protect splices
Common Guide Types for PU Conveyor Belts
- V-Guide (K-Profile): Standard V-shaped guide for precise tracking and anti-skewing.
- Block Profile: Square/rectangular profile providing larger contact area for product separation.
- Rectangular (R-Profile): Straight-edged profile ideal for flat-groove tracking systems and easy machining.
Available in multiple colors such as green, dark green, white, blue, or transparent. Surface options include smooth or grooved, with grooved versions offering enhanced flexibility when rotating around small pulleys.
Important Notes When Measuring V-Guide Conveyor Belts
- Identify belt material (PU, PVC, PE) and dimensions (width × circumference × thickness).
- Specify the required guide profile (e.g., K6) and location (bottom/top/center).
- Ensure guide compatibility with pulley grooves to prevent fatigue and delamination.
- Avoid placing belt splices over small-diameter pulleys or tight bending zones.
- Align frame, shaft, and pulleys properly; tension according to manufacturer guidelines.
- Choose the correct splicing method: finger splice for hygienic use, mechanical splice for quick repairs.
Key Advantages of V-Guide Conveyor Belts
- The V-guide creates strong product support, preventing slippage and product loss.
- Guide profiles divide the surface into compartments, ensuring product stability and minimizing collision or shifting.
- High-quality belt materials and frame ensure excellent durability, load capacity, and corrosion resistance.
- Easy adjustments for speed and direction; multiple guide designs allow customization for different product shapes and sizes.
Typical Applications
- Automated packaging and sorting lines
- Food processing and pharmaceutical production
- Logistics and warehouse automation
- Electronics manufacturing (ESD-safe options)
- Conveying bulk or loose materials on inclines
Operation, Cleaning & Maintenance Guide
- Clean with neutral detergents and soft brushes; avoid high-pressure jets on splices.
- Weekly inspection of belt tension, alignment, guide condition, edges, and splices.
- Scheduled maintenance of rollers, bearings, pulleys, and fastening components.
- Keep records of operating parameters such as speed, motor load, belt tracking issues.
- Store spare parts or use professional service providers to minimize downtime.
Trusted Supplier of PU V-Guide Conveyor Belts
Stable operation, long-lasting performance, and international safety standards—Belota’s V-Guide Conveyor Belts are the top choice for modern manufacturing lines. We guarantee:
✅ Genuine quality & high durability
✅ Optimal performance with reduced friction and wear
✅ Flexible customization: length, width, surface type, tension strength, guide height
✅ Safe and hygienic for food, pharmaceuticals, and electronics
✅ Expert consultation for system-specific solutions
✅ Fast installation & maintenance nationwide
✅ Chemical and heat resistance for industrial environments
✅ Long-term efficiency with extended lifespan
✅ Tailor-made fabrication for all conveyor systems
Contact us at 0917.657.946 for the best solution for your production line.
