Rollers Conveyor

Conveyor rollers are a core component that directly affects the operating performance of industrial conveyor systems. Understanding the technical characteristics of this industrial component helps businesses optimize investment costs and extend equipment service life. Let’s explore the detailed information with Belota in the article below.

What Is a Conveyor Roller?

A conveyor roller (idler/roller) is a cylindrical component that rotates around a shaft. It is installed on a conveyor frame or arranged consecutively to create a supporting surface and assist in transporting goods. Depending on its design and application, a roller can support the conveyor belt, guide the belt or products, transmit motion, or directly support goods during transportation.

Thanks to its simple structure, smooth operation, and easy maintenance, conveyor rollers are widely used in logistics systems, warehouses, distribution centers, food processing plants, pharmaceutical facilities, electronics manufacturing, packaging, and industrial production.

Structure of an Industrial Conveyor Roller

A standard material-handling roller consists of the following precision mechanical components:

Roller shell: This is the outer cylindrical section, commonly made from steel, galvanized steel, stainless steel, aluminum, or plastic. The shell directly contacts and supports goods or the conveyor belt. For applications requiring increased grip or impact reduction, the shell can be rubber-coated or wrapped with abrasive belt material around the shaft to increase friction between the roller surface and the product.
Roller shaft: This is the load-bearing core running through the center of the roller, typically made from solid round steel. Both ends of the shaft are designed to secure the roller to the conveyor frame while ensuring stable rotation.
Bearings: Bearings are installed at both ends of the roller, allowing the roller shell to rotate smoothly around the shaft, reducing friction, and maintaining consistent rotation during operation.
Roller bearing cups: The bearing cups are pressed into both ends of the shell and work together with the bearings and shaft to form an enclosed roller assembly. The bearing cup diameter is selected according to the roller shell diameter.
Spring: Usually made from steel, the spring is a compression spring installed at one end of the shaft. It provides a retractable shaft function, making it easier to install or remove the roller from the conveyor frame.

Working Principle of Conveyor Rollers

Conveyor rollers operate based on rotational movement around a shaft to create a supporting surface and help goods or the conveyor belt move. When arranged consecutively on a conveyor frame, the rollers form a continuous conveying surface, reducing friction between the goods and the conveyor system during operation.

The operating principle varies depending on the type of roller:

Driven roller: A driven roller is connected to a motor or chain drive. When the motor generates motion, the force is transmitted to the roller, causing it to rotate. The roller surface contacts the goods, generating pulling and pushing forces that move the goods in the direction of the conveyor system.
Non-driven roller: A non-driven roller does not have its own motor and does not generate motion independently. It rotates when gravity or an external pushing force from the goods acts on its surface. This type is commonly used in gravity roller conveyor systems.
Conveyor belt support roller: These rollers are positioned underneath or above the conveyor belt to support the belt and maintain its running path during operation.
Belt tracking and adjustment roller: These rollers help adjust the running path and maintain the conveyor belt in the appropriate position within the system.

What Sizes Are Available for Conveyor Rollers?

Specification	Reference Size
Roller diameter	Ø42, Ø49, Ø60, Ø76, Ø89, Ø102, Ø114, Ø127, Ø159, Ø194, Ø219 mm, etc.
Roller length	100–1,400 mm
Tube wall thickness	2–7 mm
Shaft diameter	Ø8–Ø30 mm

In addition to the sizes above, rollers can be manufactured according to the actual conveyor dimensions, including shaft length, distance between the conveyor frames, and tube diameter. For heavy-duty systems, the tube size, shell thickness, shaft diameter, and bearing type should be calculated and matched accordingly.

Benefits of Using Industrial Conveyor Rollers

Increased productivity: Goods can be transported continuously and consistently, making rollers suitable for high-volume operations.
Reduced labor costs: Rollers reduce the number of workers required for repetitive pushing, pulling, or material-handling tasks.
Shorter processing time: Continuous material movement helps reduce waiting and transportation time between production stages.
Reduced physical labor: Workers do not have to repeatedly carry or manually pull goods, reducing physical strain during operations.
Easier production expansion: Roller systems can be designed and expanded as production volume increases.
Long-term cost optimization: Investing in a roller conveyor system allows businesses to gradually replace manual material handling with a more stable and efficient transportation process.
Improved conveyor system performance: Rollers support, guide, and transmit motion, helping the conveyor belt operate steadily while reducing friction and wear.

Common Types of Conveyor Rollers

Conveyor rollers can be classified according to several criteria, with the most common classifications based on material, function, design, and drive method. This classification helps businesses select the appropriate roller according to load, product characteristics, and conveyor structure.

Classification by Material

The material largely determines the load capacity, durability, and working environment of the roller. Common types include:

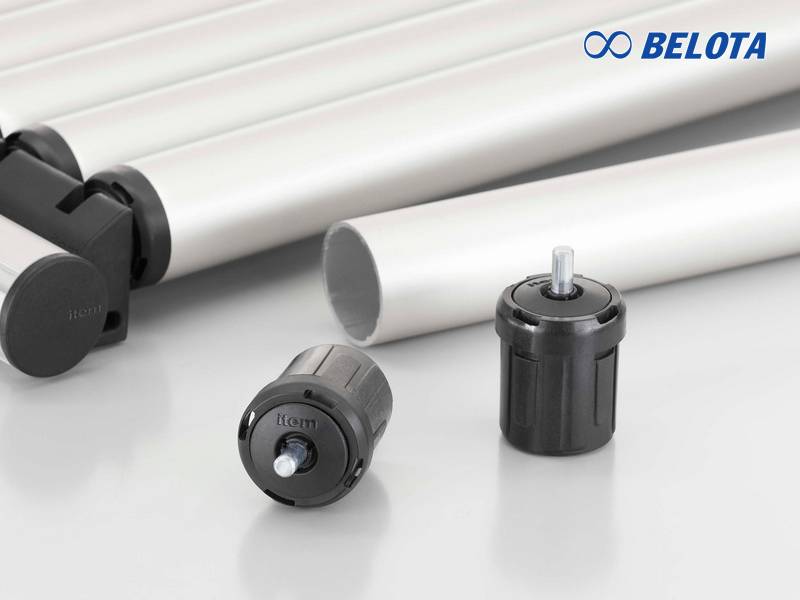

Plastic rollers: Made from PVC, PPR, POM, or PE. They are lightweight and suitable for systems requiring corrosion resistance.

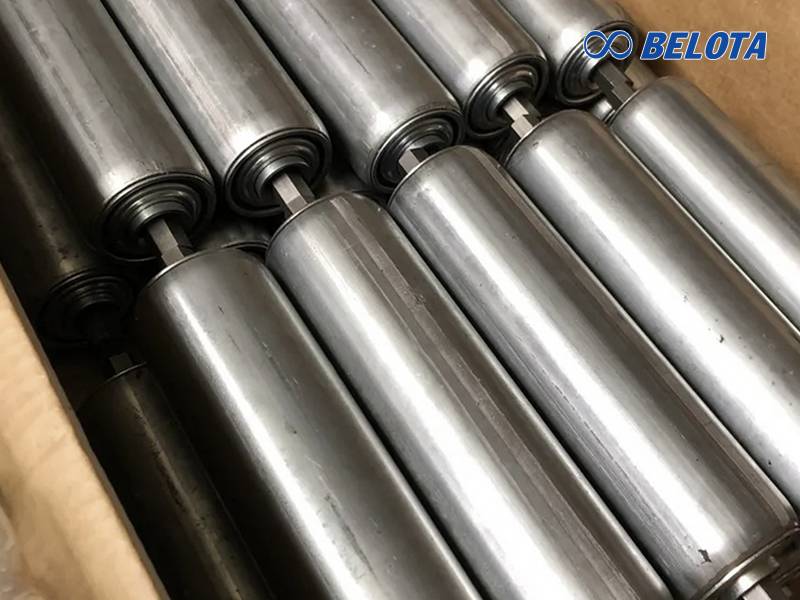

Galvanized steel rollers: Offer good load capacity and are commonly used in conveyor systems for material handling, warehouses, and logistics.

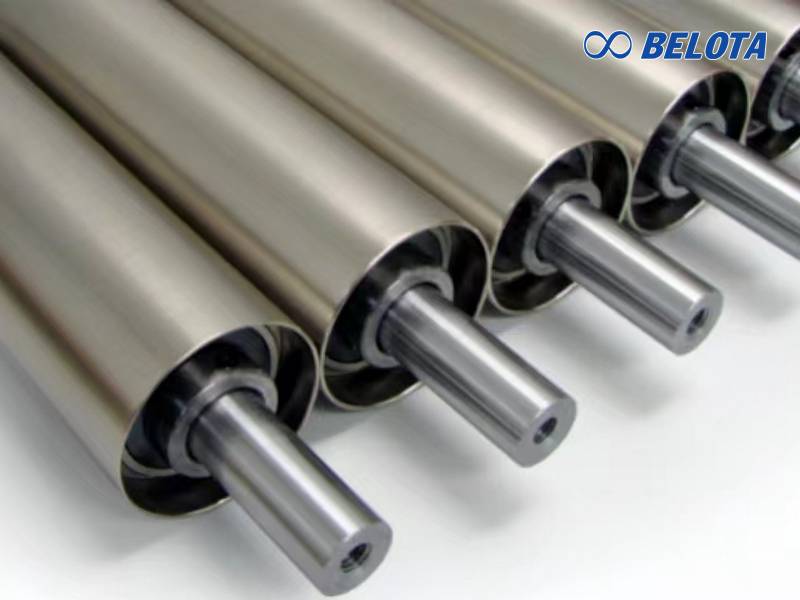

Stainless steel rollers: Available in materials such as stainless steel 201 or 304, suitable for environments requiring cleanliness and corrosion resistance.
Aluminum rollers: Lightweight and suitable for systems where reducing the weight of the conveyor structure is important.
Rubber-coated rollers: The surface is coated with rubber or silicone to increase grip and help protect products during transportation.
Brush rollers: Use a brush surface and are suitable for applications requiring contact with or surface treatment of products.

Classification by Function

Depending on their installation position and role within the system, rollers can include:

Guide rollers: Help control and guide the running path of the conveyor belt or goods.
Belt support rollers: Support the conveyor belt and maintain a stable running path.
Driven rollers: Receive motion from a motor, chain, or belt to generate pulling or pushing forces for goods or the conveyor belt.
Non-driven rollers: Do not use an independent drive system and rotate through forces from goods, the conveyor belt, or gravity.
Belt tracking and adjustment rollers: Help adjust the running path and position of the conveyor belt within the system.

Classification by Design

Based on shape and surface characteristics, rollers can be selected as follows:

Cylindrical rollers: The most common design, suitable for a wide range of material-handling systems.
Tapered rollers: Have a tapered shape and are commonly used where goods need to change direction.
Impact rollers: Help reduce the impact when goods come into contact with the roller surface.
Rough or smooth rollers: The surface finish is selected according to the characteristics of the goods and transportation requirements.
Machined rollers: Manufactured to specific dimensions and shapes using machining or turning processes.

Classification by Drive Method

Rollers can also be classified according to how motion is generated and transmitted:

Gravity rollers: Rotate through pushing force or gravity and are commonly used in gravity roller conveyors.
Chain-driven rollers: Receive motion through a chain transmission system and are suitable for applications requiring stable power transmission.
Belt-driven rollers: Transmit motion through a belt and can be used in roller conveyor systems.
Motorized rollers: Integrate an electric drive inside the roller, providing a more compact solution for automated material handling.

Applications of Conveyor Rollers

Thanks to their flexibility, conveyor rollers are used in a wide range of industrial applications:

Supporting conveyor belts: Rollers are installed underneath or above the belt to support it, maintain its running path, and ensure stable operation.
Roller conveyors: Multiple rollers are arranged consecutively to create a conveying surface for transporting goods.
Gravity roller conveyors: Use non-driven rollers, allowing goods to move through pushing force or gravity.
Flexible expandable roller conveyors: Rollers are mounted on an expandable frame that can change length, making them convenient for transporting goods at different locations.
Roller skate tracks: Use rollers to support goods as they slide or move between locations with different elevations.
Chain- or belt-driven conveyors: Driven rollers are combined with chains or belts to transmit motion and transport goods.
Turning conveyors: Use tapered rollers or suitable roller configurations to change the direction of goods.

Which Industries Are Industrial Rollers Suitable For?

With a wide range of materials, sizes, load capacities, and configurations, industrial rollers can be used in many industries that require material transportation or product guidance:

Industrial manufacturing: Transport products, semi-finished goods, and materials between different production stages.
Warehousing and logistics: Move cartons, pallets, and other goods in warehouses, sorting centers, and loading/unloading areas.
Packaging: Support product movement through packaging, inspection, and accumulation processes.
Food processing and seafood: Stainless steel, plastic, or other suitable roller materials can be used to meet the requirements of production environments.
Electronics: Transport components and finished products through assembly and inspection lines.
Paper and packaging: Move rolls, sheets, and packaging products between production stages.
Ceramics and glass manufacturing: Use suitable rollers to transport products while helping minimize impact on their surfaces.
Heavy-duty conveying lines: Steel rollers can be designed according to load requirements for transporting heavy materials and goods.

How to Choose the Right Conveyor Roller

To select the appropriate conveyor roller, consider the following technical criteria:

Load capacity: For loads above 50 kg, steel or stainless steel rollers with larger diameters, such as Ø42, Ø49, or Ø60 mm, may be required. Lightweight products can use plastic rollers.
Working environment: For wet or chemical environments, stainless steel is a suitable choice. For high-temperature or adhesive applications, silicone-coated rollers can be considered. For dusty environments, galvanized steel rollers with sealed dust protection can be used.
Product dimensions: The roller length should be at least 50 mm greater than the product width. The roller pitch, or distance between two rollers, should ensure that the bottom of the product is supported by at least three rollers at all times.
Operating speed: High-speed applications require good-quality bearings and high concentricity of the roller tube.
High-temperature applications: Use heat-resistant rollers made from materials that maintain their dimensional stability at the required operating temperature.

Signs That a Conveyor Roller Needs Replacement and Maintenance

Signs That a Roller Needs Replacement

The roller does not rotate smoothly or becomes stuck: This is commonly associated with the bearings, shaft, or accumulated dust inside the roller.

Abnormal noise: Clicking, vibration, or friction sounds during rotation may indicate that internal components are worn or damaged.
Worn or deformed roller shell: Excessive surface wear, dents, or deformation can affect the roller's ability to support and transport goods.
Roller vibration during operation: This may be related to concentricity, the shaft, or bearings and should be inspected to prevent problems from affecting the entire system.
Unstable conveyor belt tracking: If a roller is misaligned or does not rotate evenly, it can affect the running condition of the conveyor belt.

Conveyor Roller Maintenance

Regular maintenance is essential for keeping the system operating reliably:

Clean the surface: Regularly remove dust, grease, and material buildup from the roller shell to reduce slipping, jamming, and movement-related problems.
Inspect bearings and shafts: Check bearing play, rotation, and operating noise. For rollers equipped with grease fittings, lubricate them according to operating requirements.
Check alignment: Make sure the rollers are installed in the correct positions, parallel to each other, and properly aligned with the conveyor frame so that goods or the conveyor belt can move steadily.
Inspect the surface condition: For galvanized steel rollers, check the galvanized coating regularly. If scratches or corrosion appear, address them early to prevent further rust development.
Perform periodic inspections: Do not wait until a roller fails before inspecting it. Scheduled inspections help identify components that need adjustment, repair, or replacement at an early stage.

Latest Conveyor Roller Prices

The following is a reference price table for conveyor rollers based on market information from suppliers in Vietnam in 2026. Actual prices may vary depending on diameter, length, material, bearing type, and order quantity.

Conveyor Roller Type	Common Specification	Reference Price (VND/piece)
PVC plastic roller	Ø25–Ø50 mm	50,000–150,000
PP / POM roller	Ø25–Ø60 mm	80,000–180,000
Galvanized steel roller	Ø34–Ø89 mm	90,000–280,000
Stainless steel 201 roller	Ø38–Ø89 mm	130,000–320,000
Stainless steel 304 roller	Ø38–Ø89 mm	180,000–400,000
Stainless steel 316 roller	Ø38–Ø89 mm	280,000–600,000
Rubber-coated roller	Ø42–Ø76 mm	150,000–450,000
Tapered roller (Conical Roller)	Custom	250,000–700,000
Sprocket-driven roller	Custom	300,000–500,000
Poly-V / O-Belt driven roller	Custom	250,000–600,000
Heavy-duty roller	Ø89–Ø159 mm	From 400,000

Prices are for reference only and may change depending on the time of quotation.

Belota Specializes in Custom Conveyor Roller Manufacturing

Belota Co., Ltd. specializes in manufacturing custom conveyor rollers in a variety of materials, including galvanized steel, stainless steel 304, stainless steel 316, PVC plastic, and rubber-coated rollers. We manufacture rollers according to customer drawings or technical specifications, including requirements for diameter, length, load capacity, bearing type, and drive configuration. Our rollers are suitable for various industries such as food processing, packaging, logistics, electronics, and industrial manufacturing.

Belota currently supplies conveyor rollers to many factories and industrial parks in Can Tho, Ba Ria–Vung Tau, Dong Nai, Binh Duong, Ho Chi Minh City, Long An, Ninh Binh, and other provinces and cities across Vietnam. With custom manufacturing capabilities, technical consultation, and fast delivery, Belota provides reliable conveyor roller solutions for both replacement and new installation requirements.

Conclusion

Conveyor rollers play an important role in industrial material-handling systems. Selecting the right type of roller - whether plastic, steel, stainless steel, or rubber-coated—not only helps the conveyor line operate smoothly and consistently but can also help businesses reduce long-term energy and maintenance costs.

If you need to design, replace, or get a quotation for conveyor rollers, contact Belota via Hotline/Zalo: 0917 657 946 for technical consultation and a fast quotation.
