Bearings

Bearing is an essential mechanical component used to reduce friction between moving parts, helping improve operating efficiency and extend machinery lifespan. Today, the research and development of different bearing types continue to focus on improving durability, load capacity, and energy efficiency. In the article below, Belota will help you better understand this widely used industrial component.

What Is a Bearing?

A bearing, also known as a ball bearing or roller bearing, is a critical machine element that supports rotating shafts and reduces friction during motion. In modern factories and industrial systems, bearings are indispensable because most machinery operates through rotating shaft movements.

Bearings can be found in a wide range of applications, including motorcycle engines, automobile wheels, wind turbines, CNC machines, electric fans, and washing machines.

In the metallurgy and mechanical engineering industries, bearings work together with shafts and housings to ensure smooth and stable machine operation. Therefore, choosing high-quality bearings is extremely important, as counterfeit or low-quality products may cause severe damage and safety risks during operation.

Detailed Bearing Structure

Bearings come in many designs with different rolling elements. The most common type is the ball bearing, which uses spherical balls as rolling elements. This design is popular because it can handle both radial loads and axial loads while operating efficiently at high speeds.

For heavier industrial applications, tapered roller bearings and cylindrical roller bearings are commonly used due to their higher load capacity.

Standard Bearing Components

• Inner Ring & Outer Ring: Made from hardened steel with excellent heat resistance. The inner ring is mounted directly onto the shaft, while the outer ring supports and protects the rolling elements.
• Rolling Elements: These are steel balls or rollers placed evenly between the rings. They rotate continuously to create smooth, high-speed motion while withstanding high pressure and temperature.
• Cage (Retainer): The cage separates and positions the rolling elements evenly, preventing collision and ensuring stable operation.

Key Features of Bearings

Bearings provide many advantages that help industrial machinery operate more efficiently and reliably.

• Excellent Load Capacity: Modern bearings are designed to withstand heavy radial and axial loads despite their compact size.
• Reduced Friction: Friction decreases machine efficiency and increases energy consumption. Bearings minimize friction, allowing machinery to operate more smoothly, faster, and with less wear.
• Stable Rotational Support: Bearings support smooth rotation between machine components, improving stability and flexibility during operation.
• Accurate Shaft Positioning: They help maintain shaft alignment and prevent unwanted movement, which improves overall machine performance and precision.

Common Types of Bearings

Ball Bearings

Ball bearings are among the most widely used bearing types. They consist of inner and outer rings, steel balls, and a cage.

Single-Direction Thrust Ball Bearing

Designed mainly to support axial loads in one direction, though it may handle a small amount of radial load depending on the design.

Double-Direction Thrust Ball Bearing

Designed to withstand axial loads from both directions. The inner ring contains grooves on both sides, while the outer ring typically has one groove.

In ball bearings, the load is transferred from the outer ring to the balls and then to the inner ring. Because the contact area is very small, these bearings operate quietly and smoothly. However, excessive overload may deform or damage the balls.

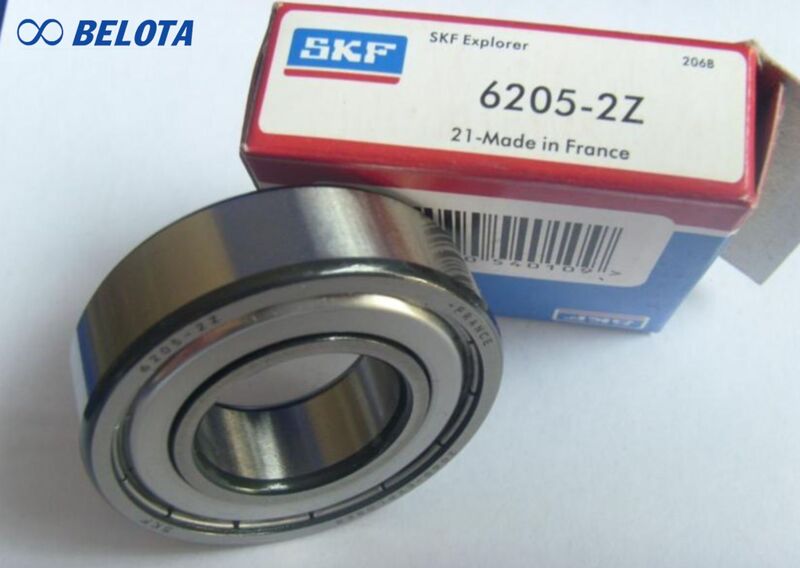

Identification: Ball bearings usually start with the number series 6.

Tapered Roller Bearings

Tapered roller bearings use cone-shaped rollers instead of balls. This design allows them to withstand much larger radial and axial loads.

They are widely used in the automotive industry, especially in wheel hubs, because of their superior load-handling capability.

The rolling elements and raceways are designed so that all cone surfaces intersect at a single point on the bearing axis, optimizing motion and reducing friction.

Identification: Commonly starts with the number series 3.

Thrust Bearings

Thrust bearings are specifically designed to handle axial loads in low-speed applications. They are available in single-row and double-row configurations.

Identification: Usually starts with the number series 5.

Besides the types above, the market also offers many other bearing products such as SKF bearings, NTN bearings, NSK bearings, spherical roller bearings, and more.

What Are Bearings Used For?

Bearings play a crucial role in reducing friction and helping machines operate smoothly. Friction between rotating shafts and supporting components is unavoidable, but bearings significantly reduce energy loss caused by friction.

In addition, bearings help:

• Protect rotating shafts
• Keep shafts properly aligned
• Prevent mechanical damage
• Support heavy loads efficiently

Each bearing type is specifically designed for particular applications to maximize machine performance and reliability.
