V Ribbed Belts

Ribbed belts (Poly-V belts or ribbed belts) are one of the most advanced power transmission technologies, widely used thanks to their high efficiency and outstanding reliability. With multiple longitudinal ribs running along the belt length, this design increases contact area with pulleys, reduces slippage, and enhances power transmission, delivering superior performance compared to traditional belts.

What Is a Ribbed Belt?

A ribbed belt is a type of drive belt featuring multiple parallel ribs on its inner surface, designed to improve grip and ensure efficient power transmission across pulleys.

Structure of Ribbed Belts

Belt body: Made from synthetic rubber such as NBR, EPDM, or neoprene, providing elasticity and heat resistance.
Longitudinal ribs: Parallel grooves that enhance grip on pulleys for stable power transmission.
Tensile cords: Typically made from polyester or Kevlar to improve strength and reduce stretching.

Key Advantages of Ribbed Belts

High efficiency: Larger contact area reduces slippage.
Smooth operation: Lower vibration and noise compared to traditional belts.
High durability: Capable of handling heavy loads and high speeds with long service life.
Wide applications: Used in automotive systems, home appliances, and industrial machinery.

Applications of Ribbed Belts

Automotive industry: Micro-V and serpentine belts drive alternators, compressors, and cooling fans.
Home appliances: PJ and PH belts are commonly used in washing machines and dryers.
Industrial sector: PL and PM belts are used in conveyors, crushers, and heavy mechanical equipment.

Common Types of Ribbed Belts

1. Poly-V Belts

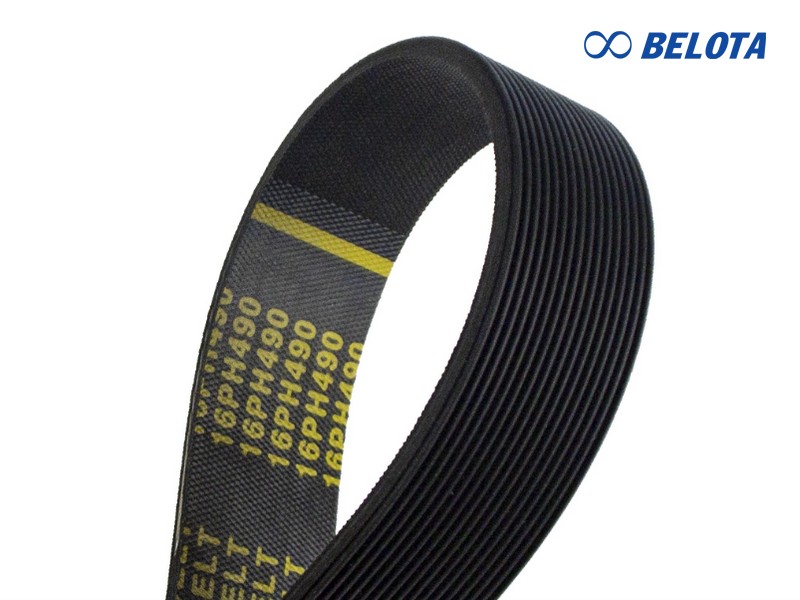

PH type: Pitch 1.6 mm, height 2.5 mm, width depends on rib count (e.g., 3PH = 4.8 mm, 5PH = 8 mm).

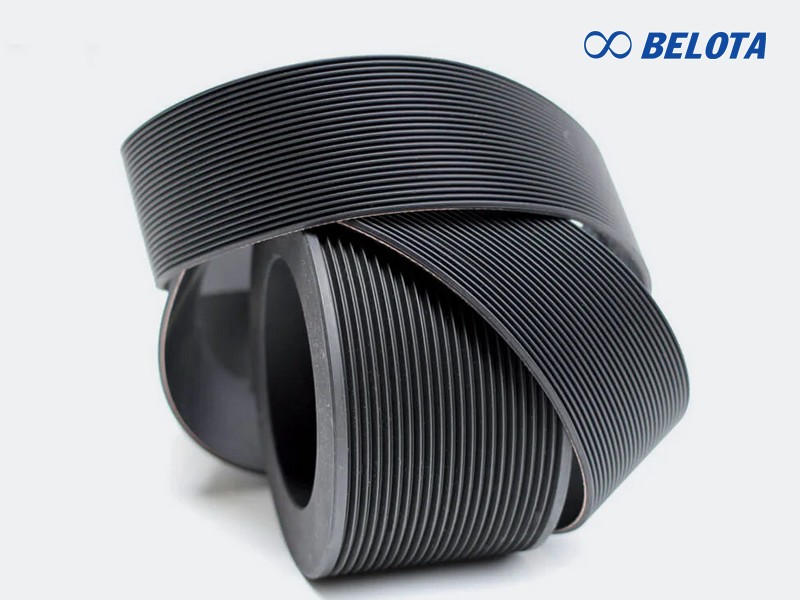

PJ type: Pitch 2.34 mm, height 3 mm (e.g., 3PJ = 7 mm, 5PJ = 11.7 mm).

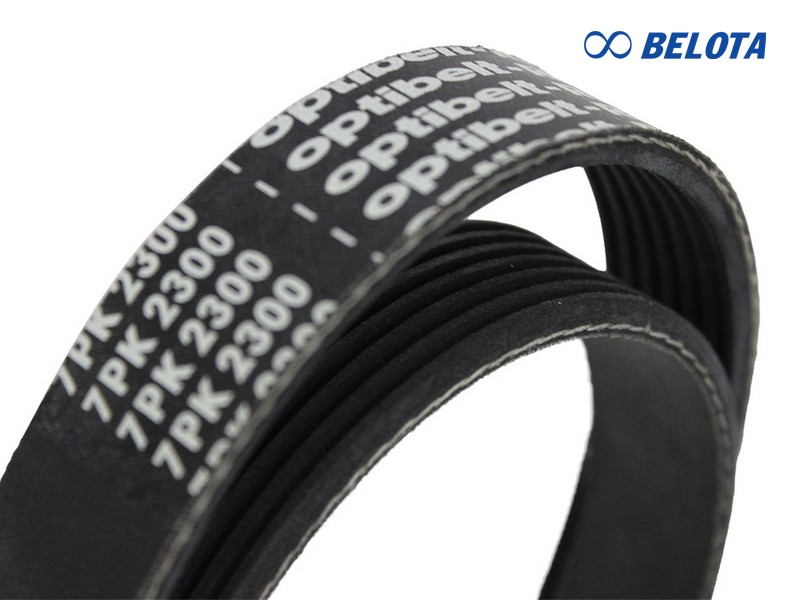

PK type: Pitch 3.56 mm, height 4.7 mm, widely used in automotive applications.
PL type: Pitch 4.7 mm, height 10 mm, suitable for heavy industrial use.
PM type: Pitch 9.4 mm, height 17 mm, designed for extremely heavy loads.

2. Special Ribbed Belts

Heat-resistant belts: Designed for high-temperature environments.
Oil-resistant belts: Suitable for applications exposed to oil and grease.
Anti-static belts: Used in explosive or static-sensitive environments.

3. Automotive Ribbed Belts

Micro-V belts: Compact belts used for engine auxiliary systems.
Serpentine belts: Long multi-rib belts driving multiple components simultaneously.

4. Ribbed Belts for Home Appliances

Washing machines: Typically use PJ or PH belts for drum rotation.
Dryers: Made from heat-resistant materials for drum operation.

5. Industrial Ribbed Belts

Heavy-duty ribbed belts: Designed for conveyors, crushers, and heavy machinery.
Light-duty ribbed belts: Flexible and easy to install for light industrial use.

Advantages of Ribbed Belts

High power transmission: Multi-rib design enables stable and efficient power transfer.
Precise pulley engagement: Improved grip reduces slippage and ensures synchronization.
Quiet operation: Reduced vibration and noise for smoother performance.
Excellent durability: Resistant to wear, heat, and oil, suitable for harsh environments.
High flexibility: Can drive multiple pulleys simultaneously across various industries.
