When replacing a bearing for electric motors, industrial machinery, or transmission assemblies, businesses need to choose a bearing with the correct dimensions, load capacity, and operating conditions. SKF 6205 bearing is a commonly used single-row deep groove ball bearing thanks to its compact design, low friction, and stable operation. This article provides an overview of its technical specifications, available SKF 6205 variants, applications, and key considerations when selecting the right product.
SKF 6205 Bearing Specifications
The SKF 6205 bearing is a single-row deep groove ball bearing designed for applications requiring radial load capacity and a certain level of axial load capacity. With standardized dimensions, it can be conveniently installed and replaced in various types of machinery.
| Specification | Value |
|---|---|
| Product name | SKF 6205 Bearin |
| Brand | SKF |
| Type | Ball Bearing |
| Bore diameter (d) | 25 mm |
| Outside diameter (D) | 52 mm |
| Width (B) | 15 mm |
| Number of rows | 1 row |
| Condition | 100% new |
| Warranty | According to the supplier's policy |
| Delivery | Nationwide |
With standard dimensions of 25 × 52 × 15 mm, the SKF 6205 bearing can be used in various rotating shaft assemblies. When replacing a bearing, it is important to check the bearing code, sealing configuration, internal clearance, and operating conditions to ensure compatibility with the equipment.

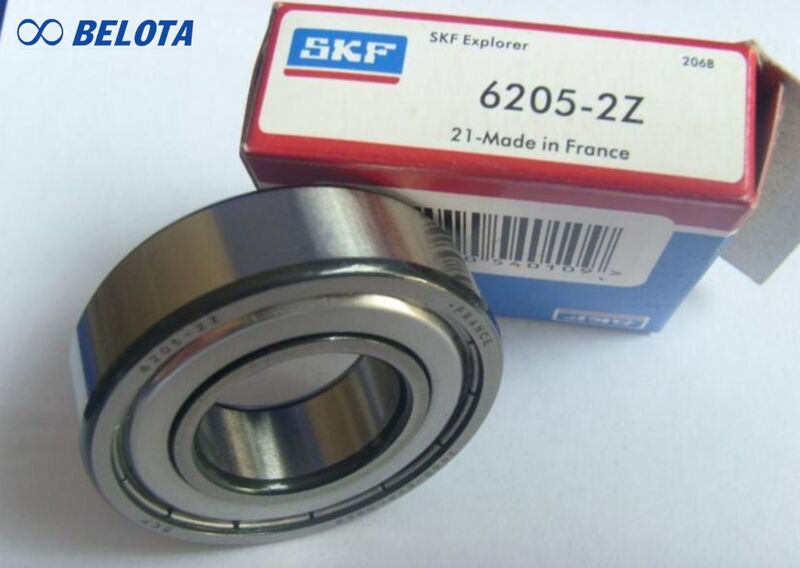

Key Advantages of SKF 6205 Bearing

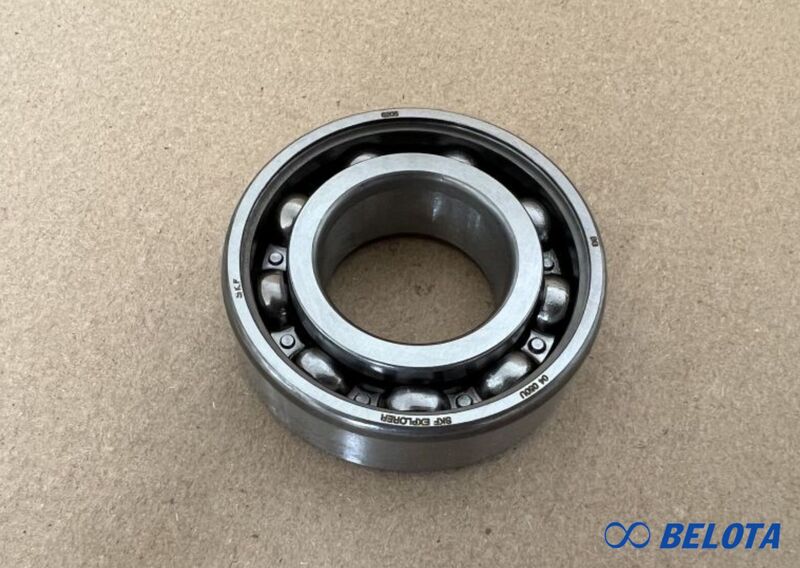

Deep Groove Ball Bearing Design
The SKF 6205 bearing features a single-row deep groove ball bearing design consisting of an inner ring, outer ring, balls, and cage. This design enables low-friction operation and is suitable for applications involving continuous rotational movement.
Radial and Axial Load Capacity
The SKF 6205 bearing can accommodate radial loads as well as axial loads in both directions within its design limits. With dimensions of 25 × 52 × 15 mm, the 6205 is larger in diameter and width than the SKF 6203 bearing (17 × 40 × 12 mm). Therefore, the two bearing sizes are typically selected for different load requirements and mounting configurations. The appropriate bearing should be selected based on the actual load, rotational speed, and housing dimensions.
Multiple Versions for Different Operating Conditions
The SKF 6205 bearing is available in different versions featuring different sealing configurations, grease retention, and internal clearances. Depending on the operating environment, users can choose an open bearing, a bearing with metal shields, or a bearing with rubber seals to meet lubrication and protection requirements.
| Bearing code | Shield/Seal type | Main characteristics | Typical use |
|---|---|---|---|
| SKF 6205 | No shield/seal | Open bearing, requires an appropriate lubrication system | Assemblies with separate lubrication |
| SKF 6205-2Z | 2 metal shields | Helps limit dust contamination and retain grease | Relatively clean environments, higher-speed applications |
| SKF 6205-2Z/C3 | 2 metal shields + C3 | Greater internal radial clearance than the standard version | Assemblies with heat generation or special clearance requirements |
| SKF 6205-2RSH | 2 contact rubber seals | Better protection against contaminants and retains grease | Environments with higher levels of contamination |
| SKF 6205/C3 | No shield/seal + C3 | Greater internal radial clearance than the standard version | Applications requiring C3 internal clearance |

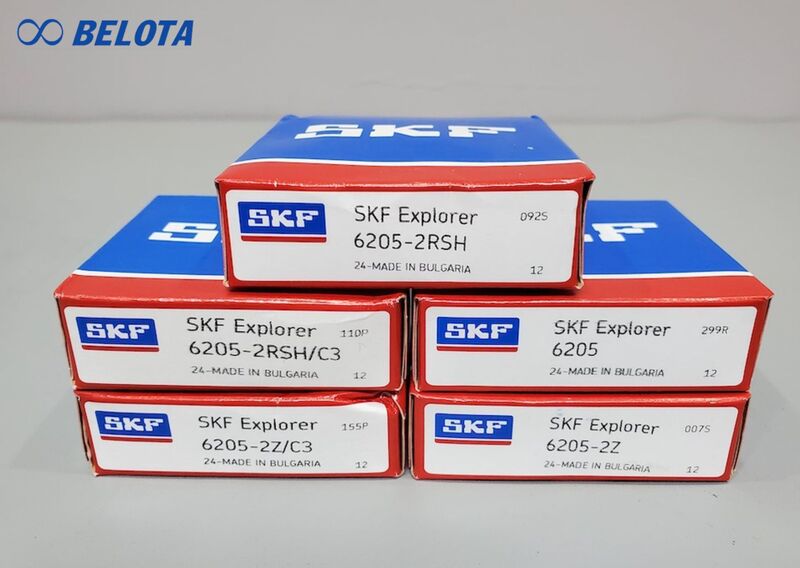

Applications of SKF 6205 Bearing
Thanks to its standardized design and flexible operating characteristics, the SKF 6205 bearing is used in various mechanical and industrial applications.
- Electric motors: Installed in rotating shaft assemblies of motors with suitable dimensions and load requirements.
- Industrial conveyors: Used in certain roller assemblies, drive shafts, and rotating mechanisms of conveyor systems.
- Production machinery: Applied in processing equipment, packaging machines, and mechanical transmission systems.
- Domestic equipment: Can be used in equipment with shaft configurations compatible with the 6205 bearing dimensions.
- Industrial pumps and fans: Installed at rotating shaft positions depending on the equipment design and operating conditions.
It is important to note that not every machine is compatible with an SKF 6205 bearing. The mounting dimensions, load, rotational speed, and sealing requirements should be checked before selecting the bearing.

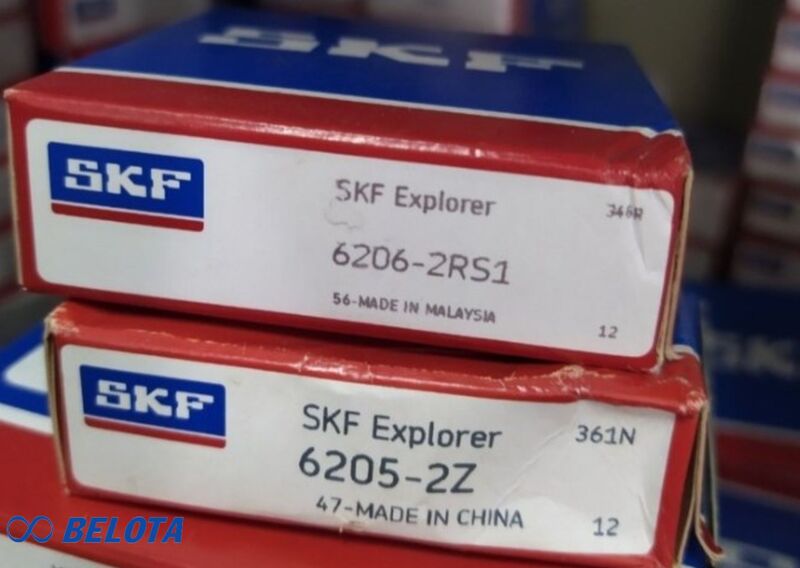

SKF 6205 Bearing Price
The market price of a genuine SKF 6205 bearing can be approximately VND 80,000–200,000 per piece, depending on the specific version, such as 6205, 6205-2Z, 6205-2Z/C3, or 6205-2RSH, as well as the supply source and distributor.
To receive an accurate quotation, customers should provide the required bearing code, quantity, and delivery requirements. For bulk orders or orders involving multiple SKF bearing codes, the supplier can recommend a suitable supply option based on the actual requirements.
Contact BELOTA for the latest quotation, stock availability, and delivery time for SKF 6205 bearings before placing an order.
Tips for Choosing Genuine SKF 6205 Bearings
When purchasing an SKF 6205 bearing, customers should consider the following points to reduce the risk of selecting an unsuitable product:
- Check the exact bearing code and standard dimensions of 25 × 52 × 15 mm.
- Determine whether an open bearing, 2Z, or 2RSH version is required based on the sealing and lubrication requirements.
- Select standard internal clearance or C3 according to the operating conditions. C3 clearance should not be assumed to be suitable for every application.
- Prioritize suppliers that provide clear product origin information, appropriate documentation, and transparent sales policies.
- Check the packaging, product markings, and relevant documentation. When authenticity needs to be verified, contact SKF or a distributor confirmed by SKF.
Selecting the correct bearing type and reliable supply source not only helps ensure that the bearing meets technical requirements but can also help businesses minimize machine downtime and unnecessary replacement costs.

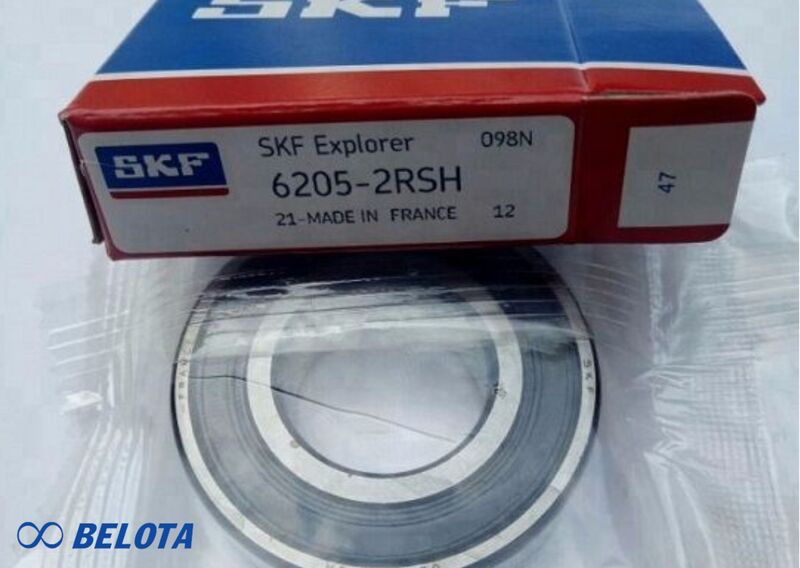

Where to Buy SKF 6205 Bearings?
Belota supplies SKF 6205 bearings for replacement, maintenance, and installation requirements in industrial machinery. When contacting Belota, customers can provide the bearing code, required quantity, product photos, or information about the equipment currently in use. This allows the technical team to help verify the bearing type, provide technical advice, and offer a suitable quotation.
We support nationwide delivery, quotation requests, and bearing selection based on actual operating conditions. For urgent replacement requirements, customers are advised to contact us in advance to confirm stock availability, delivery time, and the appropriate supply option.
Conclusion
The SKF 6205 bearing is a single-row deep groove ball bearing with standard dimensions of 25 × 52 × 15 mm, making it suitable for various types of industrial machinery and equipment. Available versions include 6205, 6205-2Z, 6205-2Z/C3, and 6205-2RSH, which address different operating requirements.
To select the right SKF 6205 bearing, businesses should check the product code, operating conditions, and mounting requirements. Contact BELOTA for technical advice, stock availability confirmation, and a quotation based on your actual requirements.
