PVC sidewall conveyor belts are widely used in many industries thanks to their stable conveying performance, anti-spillage capability, and flexibility in transporting materials on inclined systems. With sidewalls and cleats integrated on the belt surface, this conveyor system helps move products safely on slopes, minimizes material loss, and improves production efficiency. It is a popular solution in food processing, agriculture, packaging, electronics, and industrial manufacturing.
What is a PVC Sidewall Conveyor Belt?

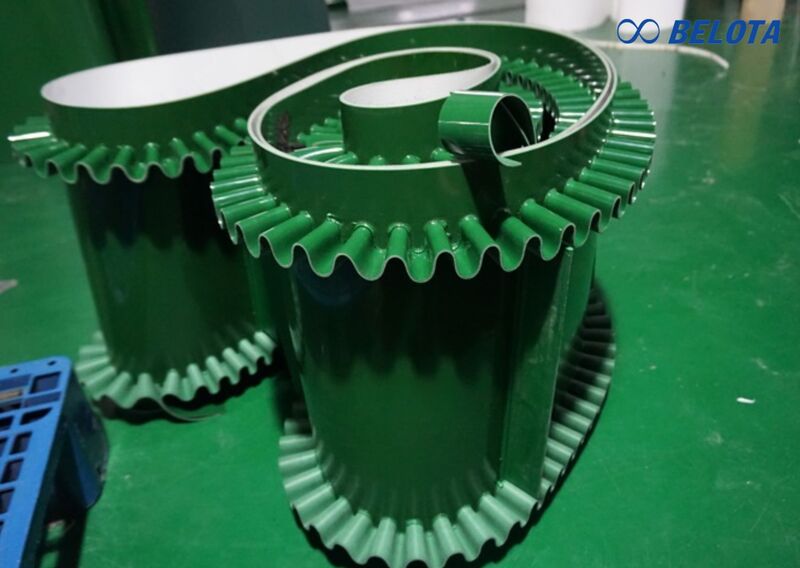

A PVC sidewall conveyor belt is a conveyor system that uses a PVC conveyor belt with corrugated sidewalls attached to both edges of the belt. These sidewalls help prevent products or materials from falling during transportation.
Some systems are also equipped with transverse cleats to improve grip and support conveying materials on steep inclines or vertical applications.
This type of conveyor is commonly designed in inclined or Z-shaped configurations to optimize installation space and improve material handling efficiency.
Structure of PVC Sidewall Conveyor Belt
PVC sidewall conveyor belts are made from PVC material combined with polyester fabric layers to improve durability, tensile strength, and resistance to stretching during operation. The belt surface can be designed in smooth or rough patterns depending on the application and the type of material being conveyed.
Corrugated sidewalls are welded directly onto both edges of the conveyor belt and are available in different heights such as 40mm, 50mm, 80mm, or 100mm. These sidewalls help prevent products and materials from falling during inclined conveying.
In addition, the belt can be equipped with transverse cleats to improve grip and support efficient transportation on steep inclines. Depending on the working environment, PVC sidewall conveyor belts can also be manufactured with different thicknesses, fabric ply layers, and special features such as oil resistance, wear resistance, or anti-static properties.

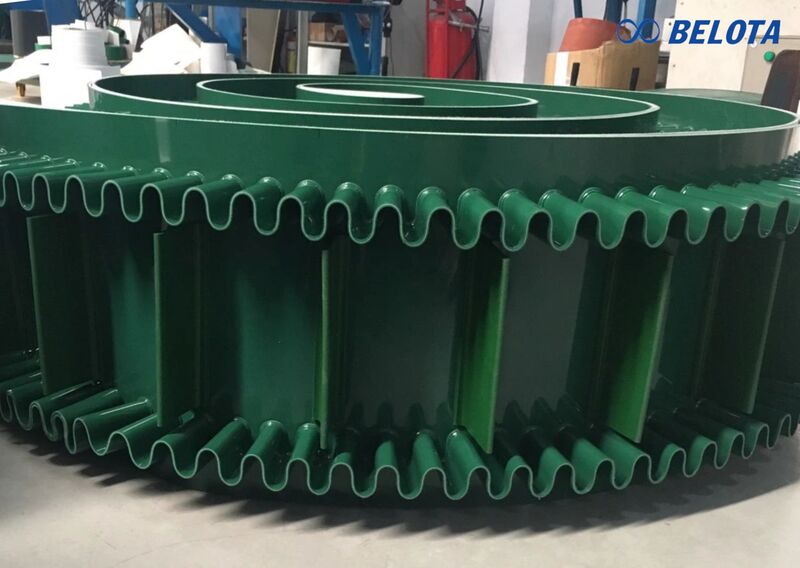

Key Features of PVC Sidewall Conveyor Belt
- Prevents materials from falling during inclined conveying.
- Sidewalls help keep products stable throughout operation.
- PVC belts provide good wear resistance and long service life.
- Resistant to moisture and suitable for humid environments.
- Can operate in temperatures ranging from low temperatures up to approximately 80°C depending on belt type.
- Stable operation with low noise levels.
- Helps reduce energy consumption thanks to efficient conveying performance.
- Easy to clean, maintain, and repair.

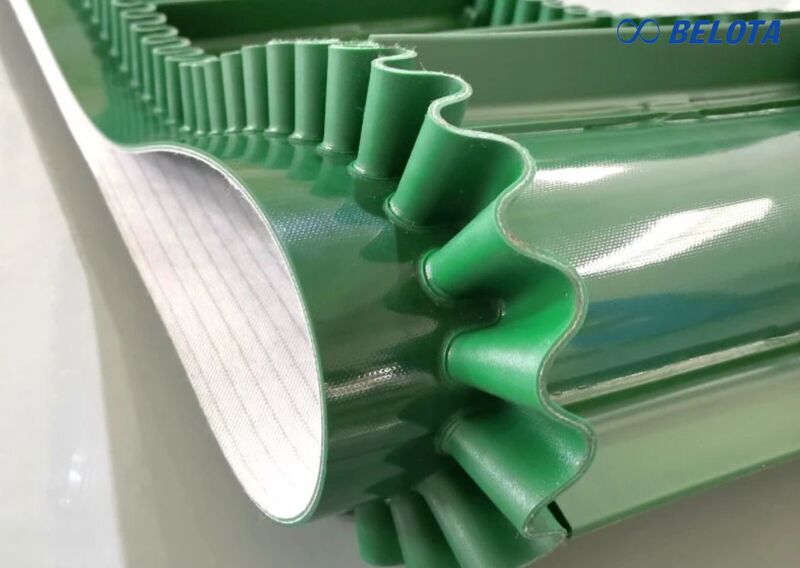

Technical Specifications
- Belt material: Green, white, or black PVC; smooth or rough surface
- Belt width: 300mm – 2000mm
- Conveyor length: Custom-made, commonly from 1m – 30m
- Belt thickness: 1.5mm – 5mm
- Fabric layers: 1 – 4 ply
- Sidewall height: 20mm – 100mm
- Cleat height: 20mm – 80mm
- Operating speed: 5 – 30 m/min
- Load capacity: 10 – 80 kg/m
- Working temperature: -10°C to +80°C
- Special options: Oil-resistant, anti-static, wear-resistant belts
Applications of PVC Sidewall Conveyor Belt

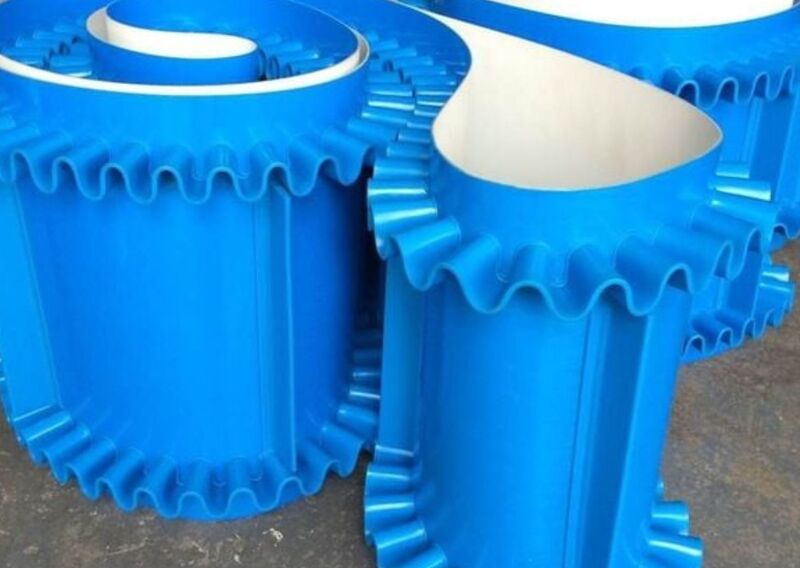

PVC sidewall conveyor belts are widely applied across many industries.
Food Industry
Used for conveying candy, vegetables, agricultural products, seafood, and packaged products. The sidewall design combined with rough-surface PVC belts improves grip and reduces product slipping during transportation.
Packaging and Electronics Industry
Suitable for transporting small components or lightweight products safely and steadily.
Mining, Fertilizer, Chemical, Feed, and Construction Material Industries
Widely used for conveying powders, granules, and bulk materials on inclined systems without material spillage.

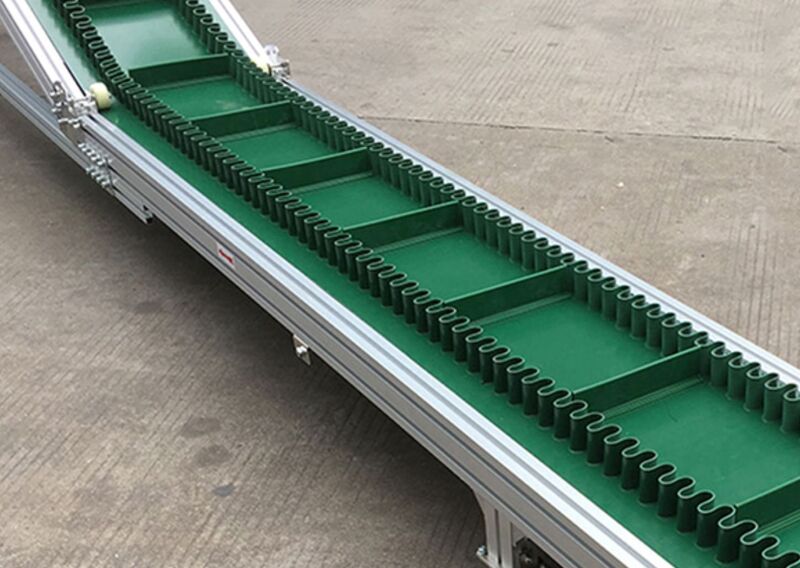

Important Considerations When Choosing PVC Sidewall Conveyor Belt
- Determine the product type, load capacity, and conveyor incline before selecting sidewall height.
- For food processing or humid environments, stainless steel frames and food-grade PVC belts are recommended.
- Choose a suitable motor capacity to ensure stable and energy-efficient operation.
Belota – Custom PVC Sidewall Conveyor Manufacturer
Belota specializes in consulting, designing, and manufacturing custom PVC sidewall conveyor systems with various sizes and configurations. We provide conveyor solutions for food processing, electronics, agriculture, warehousing, and industrial production.
Our systems are manufactured with durable structures, stable performance, and installation support based on customer requirements.
Conclusion
PVC sidewall conveyor belts are an efficient conveying solution that helps prevent material spillage, improve transportation stability, and optimize production productivity. With excellent durability, flexible applications, and reasonable investment costs, this conveyor system is widely used in many industries today.
