Uni SNB M2 34% is a straight-running plastic modular belt with a 25.4mm pitch and a 34% open area design that provides excellent water drainage, airflow, and stable operation in various production environments. It is an ideal solution for food processing, seafood, vegetables, beverages, packaging, and freezing lines thanks to its high wear resistance, easy cleaning, and long service life. In addition to the SNB M2 34% version, the Uni SNB series also includes 20%, 34% Open Rib, and 50% Open variants to meet different production requirements.
Overview of Uni SNB M2 34%
Uni SNB M2 34% belongs to the Straight Running Plastic Modular Belt series from Uni Chains – Ammeraal Beltech. It is specially designed for conveyor systems requiring efficient drainage, stable conveying performance, and easy cleaning.
With a standard pitch of 25.4mm (1.00 inch), this modular belt is widely used in modern automated production systems, especially in food processing, frozen seafood, vegetables, instant noodles, beverage, and logistics industries.
Its key advantage is the 34% open surface area, which allows faster drying, reduces water and debris accumulation, and improves cooling, freezing, and dewatering efficiency.

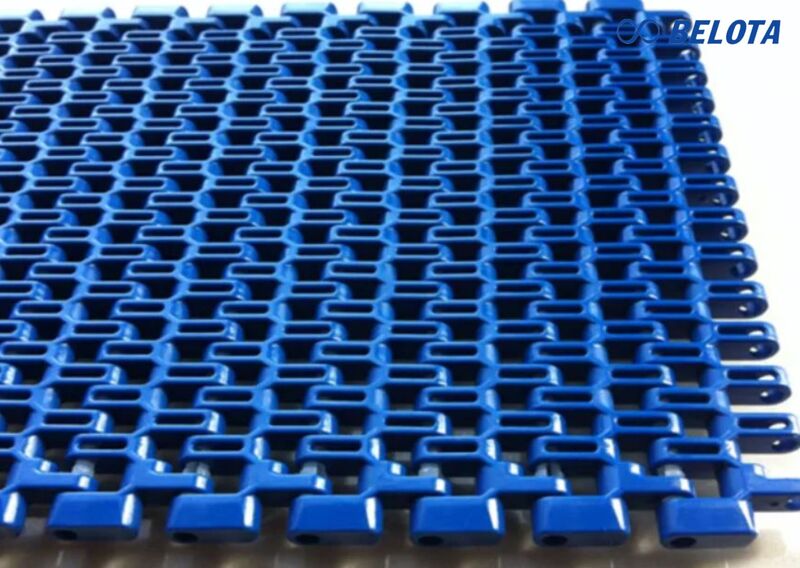

Technical Specifications
- Belt type: Straight-running modular belt
- Pitch: 25.4 mm (1.00 inch)
- Surface type: Flat Top / Rib Top
- Open area: 34%
- Backflex radius: 30.0 mm (1.20 inch)
- Rod diameter: 5 mm (0.20 inch)
- Belt materials: POM-D, POM-SLF, PP, PE
- Pin materials: PP or PE
- Colors: Blue, gray, white, black
- Brand origin: Uni Chains – Denmark
Key Features of Uni SNB M2 34%

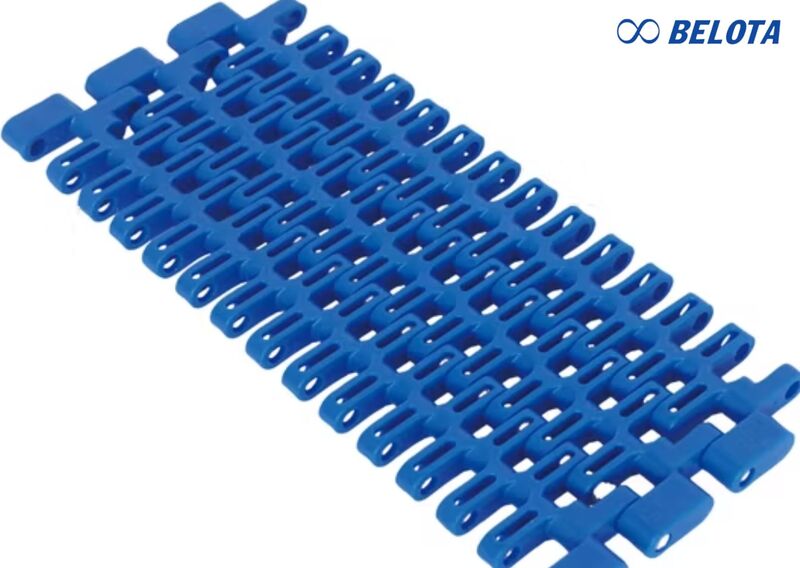

- 34% open surface improves water drainage, airflow, and cold air circulation.
- Suitable for cooling, freezing, vegetable washing, seafood processing, and dewatering systems.
- Hygienic surface design reduces dirt accumulation and simplifies cleaning.
- Helps minimize cross-contamination risks and supports food safety standards.
- Smart locking system allows quick module replacement and easier maintenance.
- Manufactured from durable materials such as POM, PP, PE, and PA6.6 for high wear resistance and load capacity.
- Stable operation in continuous and high-intensity production environments.
- Wide operating temperature range from -70°C to +430°C depending on material type.
- Effective for freezing, pasteurizing, cooking, and food cooling applications.

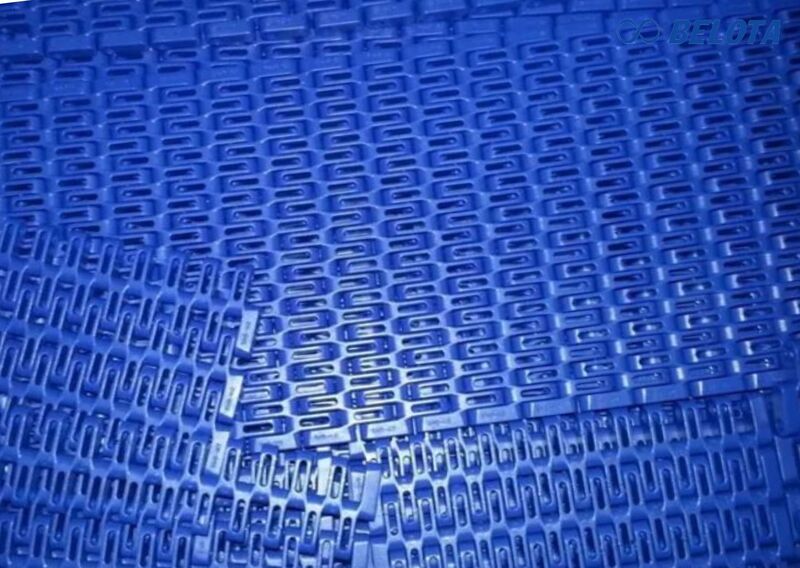

Applications of Uni SNB M2 34%
- Meat industry: Used in microwave systems, cooling lines, and food freezing systems.
- Fruit and vegetable industry: Suitable for dewatering, cooling, and quick-freezing systems after processing.
- Pasta industry: Applied in blanching machines, sterilization systems, and cooling conveyors.
- Beverage industry: Commonly used in accumulation tables, packaging feed systems, pasteurizers, and automatic palletizing lines.
- Packaging industry: Ideal for bulk conveying systems, accumulation tables, and automated pallet handling thanks to stable operation and high durability.
BELOTA – Trusted Uni SNB Modular Belt Supplier in Vietnam
BELOTA specializes in supplying genuine Uni Chains – Ammeraal Beltech modular conveyor belts in Vietnam. The company provides a wide range of products including Uni SNB modular belts, Uni Light 19.1mm pitch belts, Uni Flex plastic chains, Uni Snap-On, Uni M-TTB, Uni 880TAB, and many other food-grade plastic conveyor solutions.
With a focus on quality and application-specific solutions, BELOTA is committed to supplying genuine products with full certification documents, accurate technical consultation, on-site support, and fast nationwide delivery. The company also offers competitive pricing to help customers optimize investment costs.
Conclusion
Uni SNB M2 34% plastic modular belt is an ideal solution for businesses that require a durable, hygienic, and efficient conveyor system with excellent drainage and stable operation in continuous production environments. Besides the 34% version, the Uni SNB series also includes 20%, Open Rib, and 50% Open models, allowing businesses to choose the most suitable option for each production stage.
If you are looking for a high-quality modular conveyor belt solution for food processing, seafood, beverage, or packaging industries, contact BELOTA today for technical consultation and a quick quotation.
