Silicone Sheet For Solar Panels Lamination are essential components in the photovoltaic (PV) module manufacturing process. Made from high-quality silicone rubber reinforced with Aramid fabric, these silicone products offer excellent heat resistance, chemical resistance, and dimensional stability throughout continuous production. They are indispensable for modern solar panel manufacturing plants seeking high lamination quality and long service life. In this article, Belota will help you understand their construction, specifications, advantages, applications, and selection guidelines.
What is a Silicone Sheet For Solar Panels Lamination?

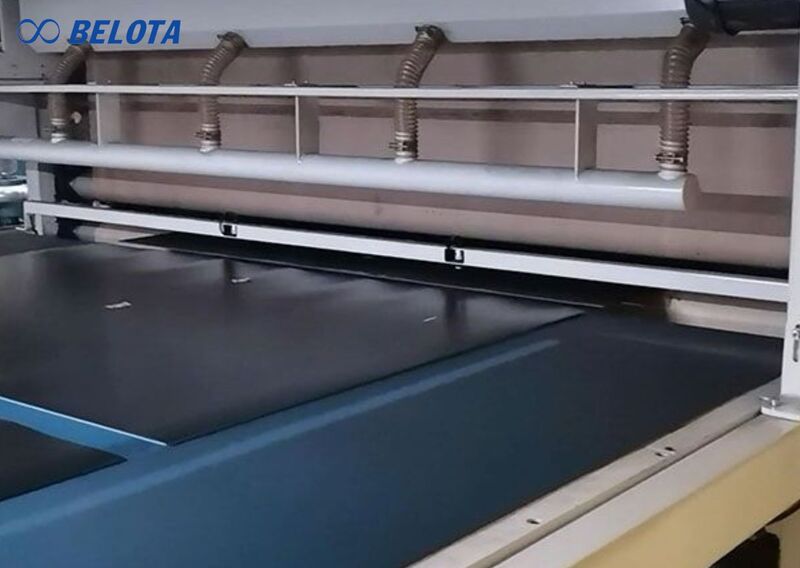

A silicone sheet for solar panels laminationt is a specialized silicone membrane used in the vacuum lamination process of photovoltaic (PV) modules. During lamination, air is removed from the module by vacuum, while heat and pressure are transferred through the silicone sheet to melt the EVA encapsulant, permanently bonding the glass, solar cells, backsheet, and other layers into a single module.
Thanks to its excellent heat resistance and stable elasticity, the silicone sheet ensures uniform heat distribution and pressure, improving lamination quality while minimizing production defects.

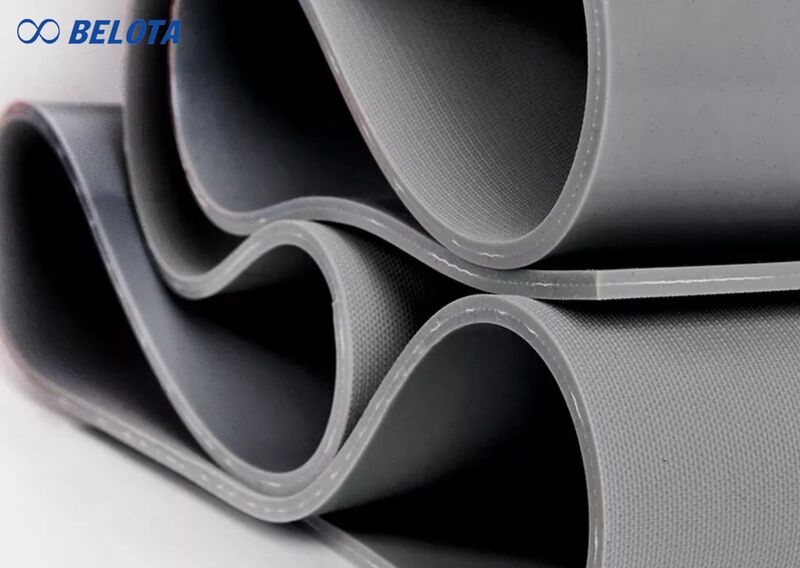

Structure of a Silicone Sheet for Solar Laminators
A high-quality solar laminator silicone sheet typically consists of:
- Heat-resistant silicone rubber layer.
- Aramid fabric reinforcement for enhanced mechanical strength.
- Anti-stick surface designed to resist the gases released from molten EVA.
Dimensionally stable construction that minimizes expansion and deformation during repeated heating cycles. The combination of premium silicone rubber and Aramid reinforcement allows the sheet to maintain excellent durability even under continuous high-temperature operation.

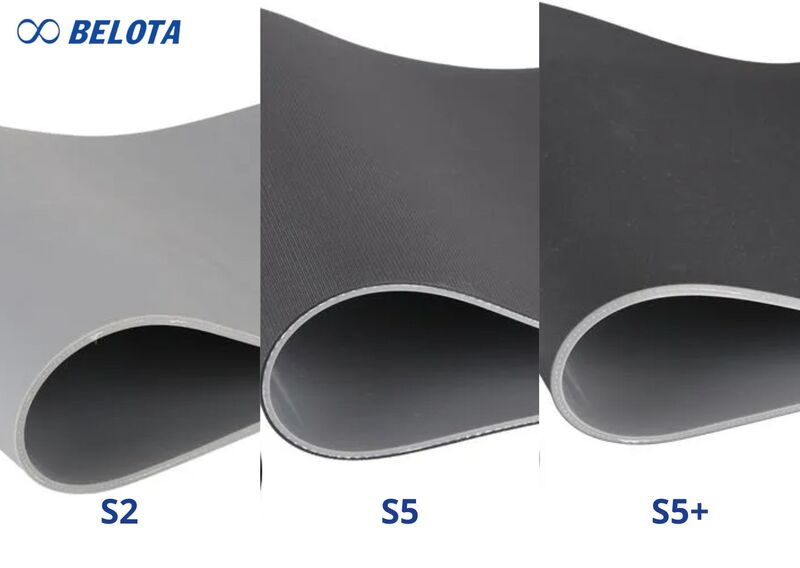

Technical Specifications
| Generation | Coating | Thickness | Reinforcement | Color | Surface | Service Life |
|---|---|---|---|---|---|---|
| S2 | Standard Silicone | 4 mm | Aramid | Gray / Gray | Smooth / Smooth | > 4,000 cycles |
| S5 | Hybrid Coating | 4 mm | Aramid | Gray / Black | Smooth / Textured | > 10,000 cycles |
| S5+ | FKM Coating | 4 mm | Aramid | Gray / Black | Smooth / Textured | > 10,000 cycles |
Available Sizes
- Maximum width: 3,800 mm
- Standard thickness: 4 mm
- Optional thickness: 3 mm
- Available in sheet or continuous roll form
- Custom manufacturing according to customer specifications
Key Advantages of Solar Panel Laminator Silicone Sheets

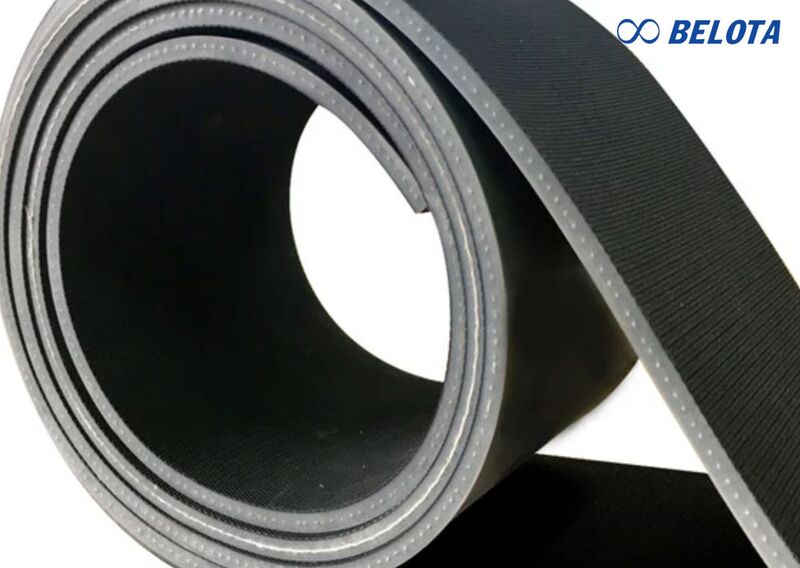

Excellent Heat Resistance
The silicone sheet operates reliably at temperatures up to 250°C, making it ideal for industrial solar panel laminating machines.
Resistance to EVA Outgassing
Its specially engineered surface minimizes the effects of gases released during EVA melting, reducing aging, cracking, and surface degradation.
Outstanding Mechanical Strength
Aramid fabric reinforcement significantly improves tensile strength, tear resistance, and dimensional stability during continuous production.
Excellent Dimensional Stability
The sheet maintains its flatness and original dimensions over thousands of lamination cycles, ensuring consistent module quality.
Long Service Life
Premium models can exceed 10,000 lamination cycles, reducing replacement frequency and maintenance costs.
Wide Machine Compatibility
Compatible with numerous solar module laminators used throughout the photovoltaic industry.

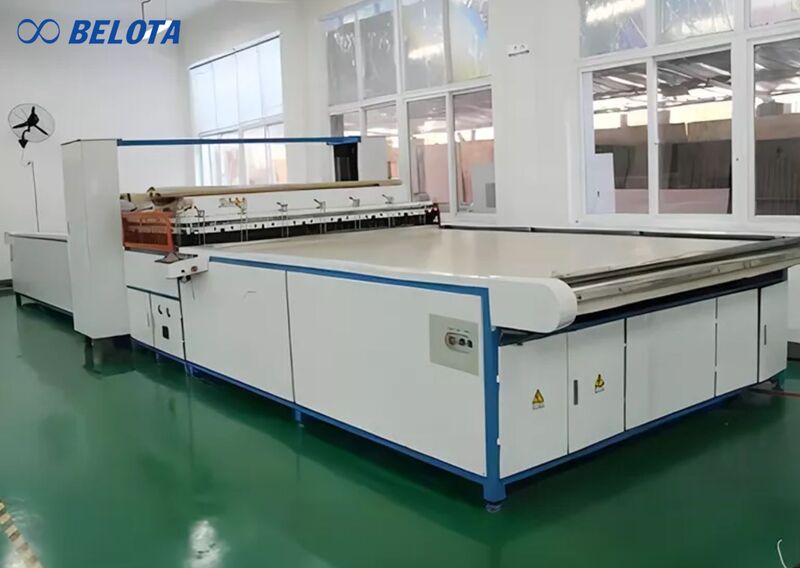

Applications of Solar Panel Laminator Silicone Sheets

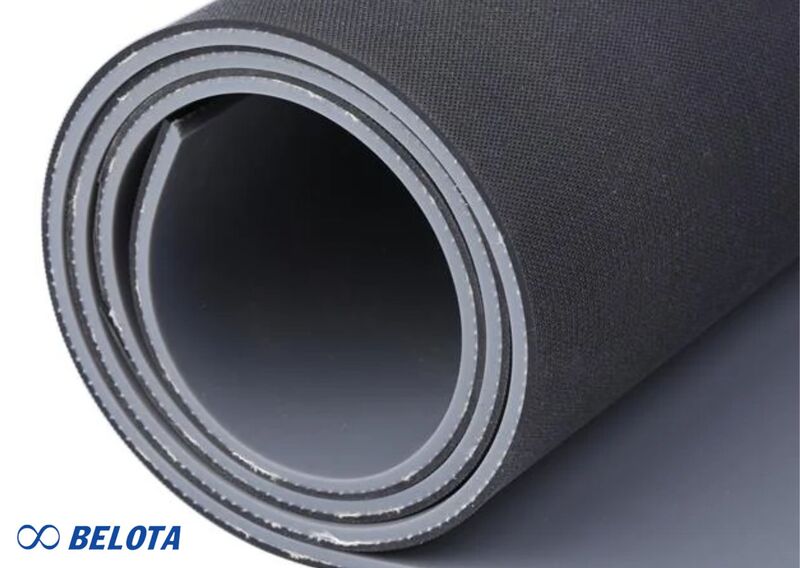

Solar Panel Manufacturing
Widely used during the vacuum lamination process of crystalline photovoltaic modules to ensure uniform bonding between material layers. Although its operating principle is similar to that of a vacuum press silicone membrane, this product is specifically engineered for solar panel production.
PV Module Encapsulation
Provides reliable bonding between glass, EVA film, photovoltaic cells, and backsheet, improving the durability and service life of finished modules.
Renewable Energy Manufacturing Plants
Suitable for high-capacity solar panel production lines operating continuously under demanding industrial conditions.
Industrial Laminating Machines
Compatible with laminating systems from major manufacturers, including Boostsolar, NPC, 3S, Mondragon, Komax, Meier, Burkle, Ecoprogetti, Orient, and ZST.
How to Choose the Right Solar Laminator Silicone Sheet
When selecting a silicone sheet, consider the following factors:
- Laminator size: Choose the correct length, width, and thickness to match the machine.
- PV module type: Different module designs may require different silicone sheet constructions.
- Operating temperature: Select a material with sufficient heat resistance for your production process.
- Production capacity: Continuous production lines require silicone sheets with superior durability and longer service life.
- Investment budget: Balance initial cost with long-term operational efficiency.
Recommendation: For high-volume production facilities operating continuously, S5 and S5+ models are recommended due to their longer lifespan and lower replacement costs.
Maintenance Guidelines
To maximize service life and maintain optimal performance:
- Clean the surface regularly to remove dust and EVA residue.
- Avoid contact with sharp tools or abrasive objects.
- Periodically inspect sheet tension and flatness.
- Replace the sheet if cracking, stretching, or reduced lamination performance is observed.
- Store in a clean, dry environment when not in use.
Proper selection and maintenance help improve PV module quality, reduce production downtime, and lower long-term operating costs.
Belota - Trusted Supplier of Solar Panel Laminator Silicone Sheets
Belota supplies high-quality solar panel laminator silicone sheets manufactured from premium imported materials sourced from reputable global suppliers. We then process each sheet in Vietnam according to the customer's required dimensions, thickness, and technical specifications. This enables manufacturers to reduce sourcing time, shorten delivery schedules, and optimize procurement costs.
Our products offer outstanding heat resistance, stable elasticity, excellent aging resistance, and long service life, making them ideal for continuous photovoltaic manufacturing. Beyond supplying silicone materials, Belota also provides technical consultation to help customers select the most suitable silicone sheet for their vacuum lamination systems, improving module quality while maximizing production efficiency.
Contact Belota today via Hotline/Zalo: +84 917 657 946 for expert consultation and a quotation on the most suitable solar panel laminator silicone sheet for your production line.
