Cotton folding machine belts are specialized conveyor belts designed for industrial laundry folding systems, including garment folders, towel folders, flatwork folders, and commercial ironing equipment. Manufactured from woven cotton reinforced with polyester, these belts provide excellent heat resistance, reliable grip, smooth operation, and gentle fabric handling throughout the folding process. Combining the softness of cotton with the strength of polyester, cotton folding belts help folding machines run consistently, improve production efficiency, and ensure neatly folded, wrinkle-free finished textiles.
What Is a Cotton Folding Machine Belt?
A cotton folding machine belt is a drive and conveying belt installed on industrial textile folding machines. Its primary function is to transport, position, and stabilize linens during the automatic folding process.
These belts are commonly used to handle flat textiles such as:
- Bed sheets
- Bath towels
- Table linens
- Pillowcases
- Hospital linens
- Uniforms
- Garments
Typical applications include commercial laundries, hotels, hospitals, textile rental services, garment manufacturers, and large-scale linen processing facilities.
Within a commercial laundry line, cotton folding belts are often used together with Ironer Guide Tapes. The guide tapes keep the fabric centered as it passes through the flatwork ironer, while the cotton belts receive the ironed fabric, transport it into the folding section, and hold it securely in position for accurate folding.
Working together, these two components help maximize productivity, reduce fabric tracking issues, and improve the overall efficiency of industrial laundry operations.

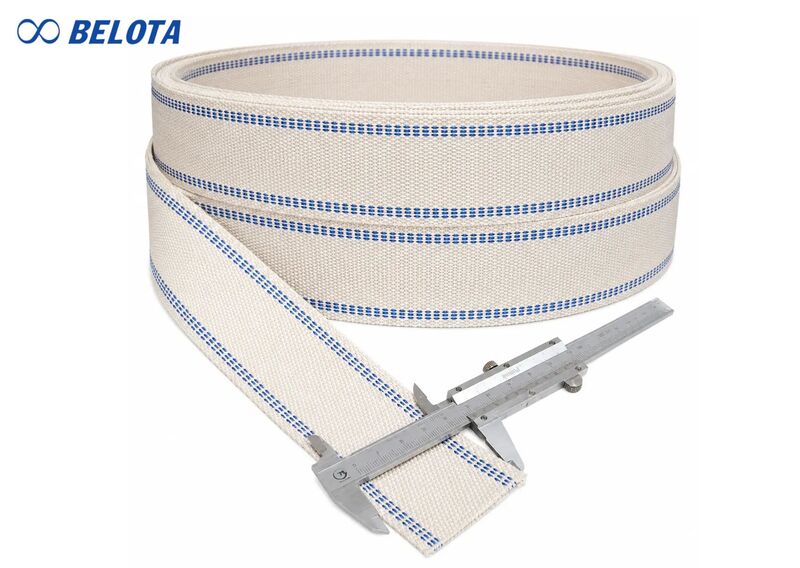

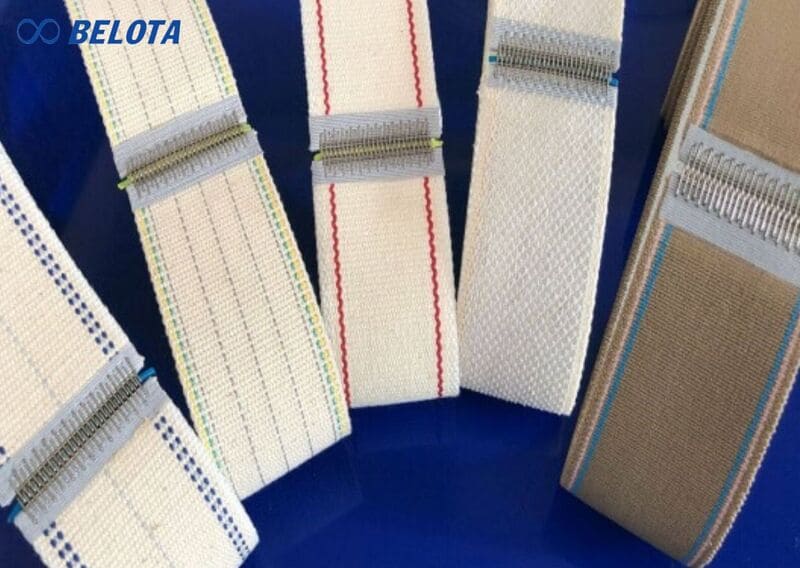

Construction of Cotton Folding Belts
Cotton folding belts consist of several key layers that work together to provide strength, durability, and reliable performance.
- Woven Cotton Surface: The soft woven cotton surface provides the proper level of friction to hold fabrics securely without damaging delicate textiles.
- Polyester Reinforcement: High-strength polyester reinforcement improves tensile strength, minimizes stretching, and extends belt service life.
- Anti-Static Layer (Optional): Conductive fibers can be incorporated to reduce static electricity, preventing lightweight fabrics from sticking to the belt or drifting during transport.

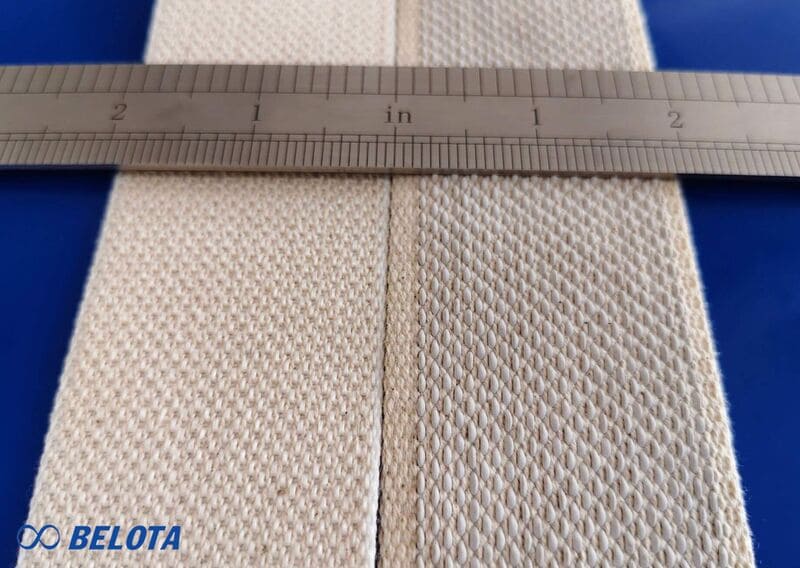

- Rubber Grip Coating (Optional): Selected models feature a rubber-coated surface that provides additional grip for applications requiring higher friction.
Technical Specifications
| Specification | Value |
|---|---|
| Material | Woven Cotton with Polyester Reinforcement |
| Edge Color | Green, Red, or Custom |
| Standard Thickness | Approximately 2 mm |
| Standard Widths | 35 mm, 50 mm, 65 mm, 75 mm, 88 mm, 100 mm |
| Roll Length | 100 m |
| Operating Temperature | 60–90°C |
| Features | Anti-slip, abrasion resistant, smooth running, long service life |
| Custom Processing | Cut-to-length, endless splicing, and custom fabrication available |
Types of Cotton Folding Machine Belts
White Cotton Belt with Green Edges
The green-edge cotton belt is one of the most widely used belts for garment folders, towel folders, and flatwork folding machines. Reinforced green edges improve durability while making installation and belt alignment easier.
Features
- Soft cotton surface that protects fabrics
- Stable friction for reliable conveying
- Suitable for elevated operating temperatures
- Designed for continuous industrial laundry service

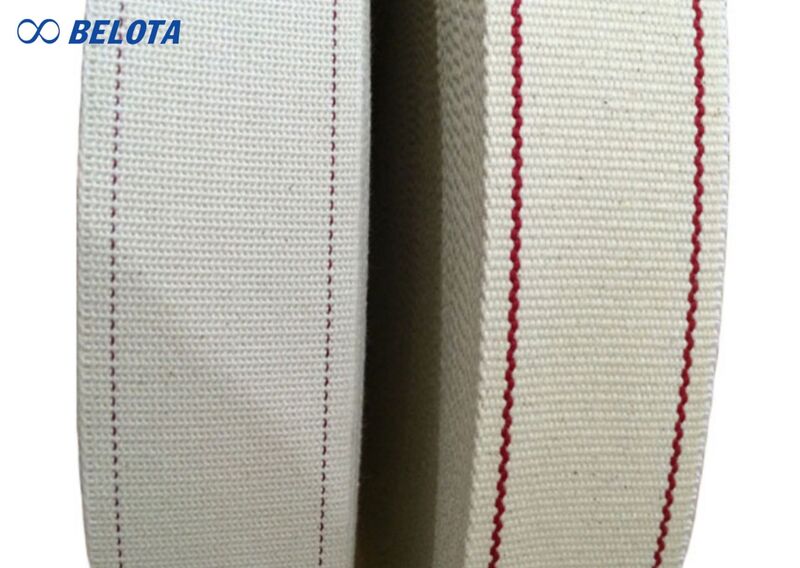

White Cotton Belt with Red Edges
The red-edge version features reinforced polyester edge construction that enhances belt strength, reduces shrinkage, and minimizes edge wear during continuous operation.
Typical specifications include:
- Widths: 50 mm, 65 mm, 75 mm, 88 mm, 100 mm
- Roll Length: 100 m
Ideal for industrial folders, linen folding systems, and textile conveying equipment.

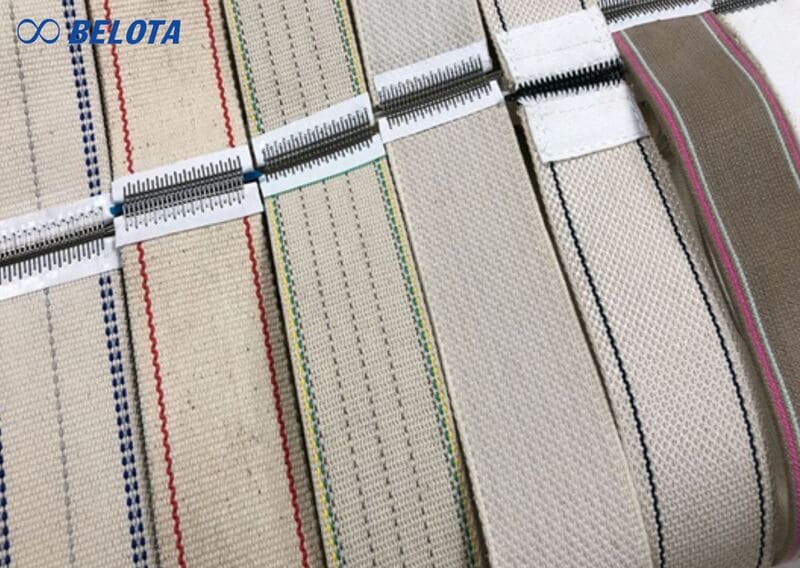

Anti-Static Cotton Belt
Anti-static cotton belts incorporate conductive fibers to dissipate static electricity. This helps prevent lightweight fabrics from clinging to the belt or shifting during folding.
Typical sizes include:
- Widths: 35 mm, 50 mm, 75 mm, 100 mm
- Roll Length: 100 m
Recommended for lightweight linens and delicate textiles.

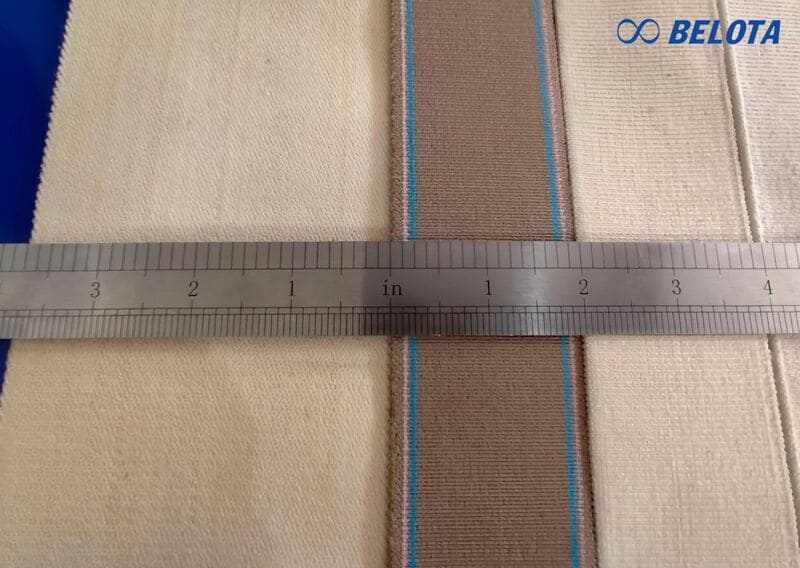

Elastic Cotton Belt
The L-043 elastic cotton belt combines woven cotton with elastic materials to provide controlled stretch and consistent belt tension.
This construction allows the belt to accommodate roller movement while maintaining smooth, stable operation.
Typical sizes:
- Widths: 50 mm, 100 mm
- Roll Lengths: 50 m, 100 m
Advantages of Cotton Folding Machine Belts
- Excellent heat resistance for continuous operation on folders and industrial ironers.
- Soft fabric-friendly surface that prevents snagging, scratching, or damage to linens.
- High tensile strength thanks to polyester reinforcement.
- Reliable grip that minimizes slipping and ensures accurate fabric tracking.
- Smooth, quiet operation that reduces wear on machine components.
- Long service life with excellent resistance to abrasion and continuous use.
- Lower maintenance costs due to reduced replacement frequency.
Applications
Cotton folding belts are widely used in various commercial laundry and textile finishing equipment, including:

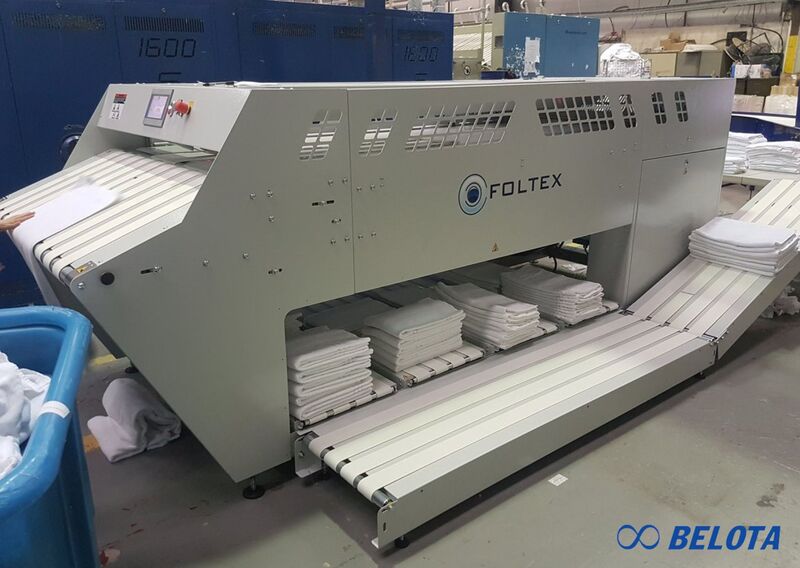

- Industrial Garment Folding Machines: Ensure stable garment transport while producing neatly folded finished products.
- Towel, Sheet and Pillowcase Folding Systems: Ideal for hotels, hospitals, commercial laundries, and linen rental operations processing large volumes of textiles.
- Flatwork Ironers: Transport fabrics smoothly through heated rollers while maintaining consistent fabric alignment.
- Complete Industrial Laundry Lines: Used throughout ironing, conveying, sorting, stacking, and folding operations.
- Compatible Machine Brands: Suitable for equipment manufactured by JENSEN, LAPAUW, ADC, ELECTROLUX, CHICAGO, CISSELL, IPSO, BRAUN, GIRBAU
Your Trusted Supplier of Cotton Folding Machine Belts
Belota Co., Ltd. supplies and fabricates a comprehensive range of cotton folding machine belts, industrial ironing belts, and conveyor belts for commercial laundry applications. Our products serve hotels, hospitals, commercial laundries, textile rental companies, and garment manufacturers throughout Vietnam.
When choosing Belota, customers benefit from:
- Expert technical consultation for selecting the right belt for each machine.
- A wide selection of belt widths, thicknesses, and specifications.
- Stock rolls or cut-to-length belts available for immediate delivery.
- Endless splicing, mechanical fasteners, and ready-to-install belt assemblies.
- Custom fabrication based on machine specifications and customer requirements.
- Compatibility with most industrial folding machines, stackers, feeders, and flatwork finishing equipment.
- High-quality products backed by dependable technical support and after-sales service.
With years of experience supplying industrial laundry components, Belota has earned the trust of customers across Ho Chi Minh City, Hanoi, Da Nang, Nha Trang, Phu Quoc, Hai Phong, Can Tho, Binh Duong, Dong Nai, Quang Ninh, and many other regions with well-established hospitality, healthcare, and commercial laundry industries.
Conclusion
Cotton folding machine belts are essential components for achieving reliable, efficient, and high-quality textile folding in commercial laundry operations. Their combination of heat resistance, gentle fabric handling, excellent traction, and long service life makes them the preferred solution for industrial folding, ironing, and linen processing systems. Belota offers a complete range of cotton folding belts in various widths, constructions, and custom configurations, including cut-to-length fabrication, endless splicing, mechanical fasteners, and ready-to-install assemblies. Contact Belota today for expert technical advice and a fast quotation tailored to your industrial laundry equipment.
