Ironer Guide Tape is an essential component of flatwork ironers used in commercial and industrial laundry systems. It helps guide linens accurately through the ironing process, preventing fabric misalignment and improving machine efficiency. Available in a range of heat-resistant materials, including Polyester, Meta-Aramid/Polyester, and 100% Nomex, these guide tapes are designed to suit different operating temperatures and ironing equipment. In this guide, Belota explores the features, specifications, common types, and applications of ironer guide tape to help you select the right solution for your laundry operation.
What Is an Ironer Guide Tape?

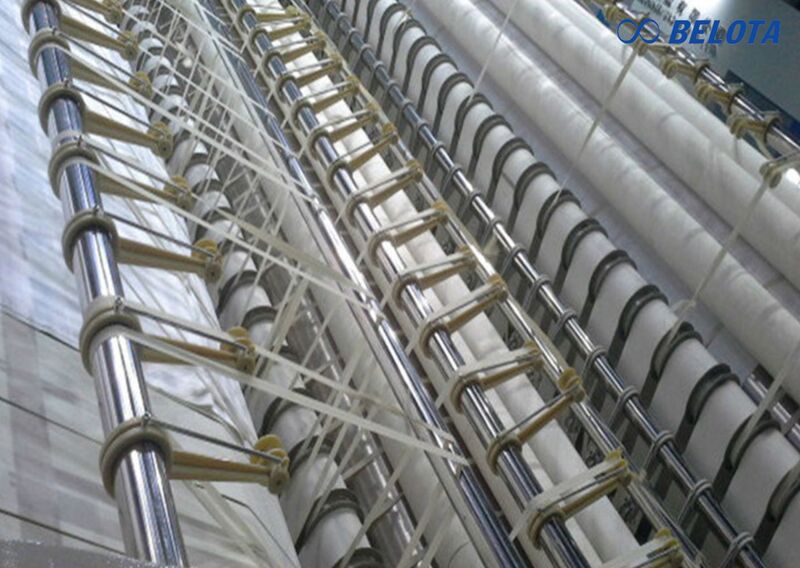

An Ironer Guide Tape (also known as a Guiding Tape) is a narrow, heat-resistant woven tape installed on flatwork ironers in commercial laundry systems. Its primary function is to guide bed linens, towels, tablecloths, and other flat textiles smoothly into the ironing cylinder while preventing them from becoming misaligned or wrapping around the compression roll.
Depending on the machine type and operating temperature, guide tapes are manufactured using different heat-resistant materials such as Polyester, Meta-Aramid/Polyester, and 100% Nomex (Aramid). Each material offers specific advantages in terms of heat resistance, tensile strength, abrasion resistance, and service life, making it suitable for different ironing systems.
Ironer guide tapes are widely used on:
- Steam-heated flatwork ironers
- Electric-heated ironers
- Thermal oil-heated ironers
- Gas-heated ironers
- High-speed commercial ironing lines

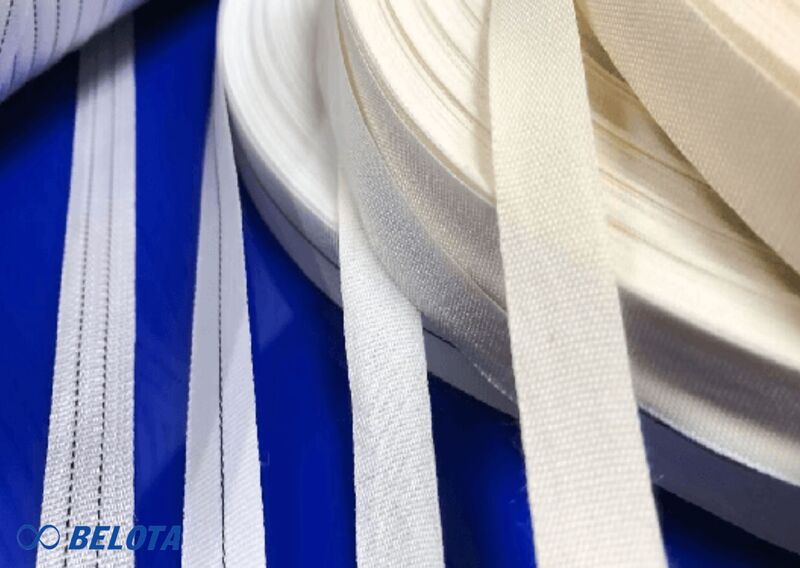

Technical Specifications of Ironer Guide Tape
| Specification | Details |
|---|---|
| Product Name | Ironer Guide Tape |
| Application | Flatwork ironers, sheet ironers, towel ironers, and commercial laundry finishing equipment |
| Materials | Polyester, Meta-Aramid/Polyester, 100% Nomex (Aramid) |
| Standard Widths | 13 mm, 15 mm, 19 mm |
| Roll Lengths | 100 m, 300 m, 400 m |
| Custom Sizes | Available upon request |
| Minimum Order Quantity | 1 Roll |
| Joining Method | High-temperature sewing thread or ultrasonic welding |
| Compatible Machines | Steam-heated, electric-heated, thermal oil-heated, and gas-heated ironers |
Belota also offers custom manufacturing services to meet specific machine configurations and operational requirements.
Types of Ironer Guide Tape
Polyester Guide Tape
Made from high-strength polyester, this guide tape provides stable tracking and reliable performance for standard commercial laundry applications.
- Material: Polyester
- Working Temperature: Up to 160–180°C
- Width: 15 mm, 19 mm
- Length: 100 m, 400 m
- Suitable for: Steam-heated flatwork ironers

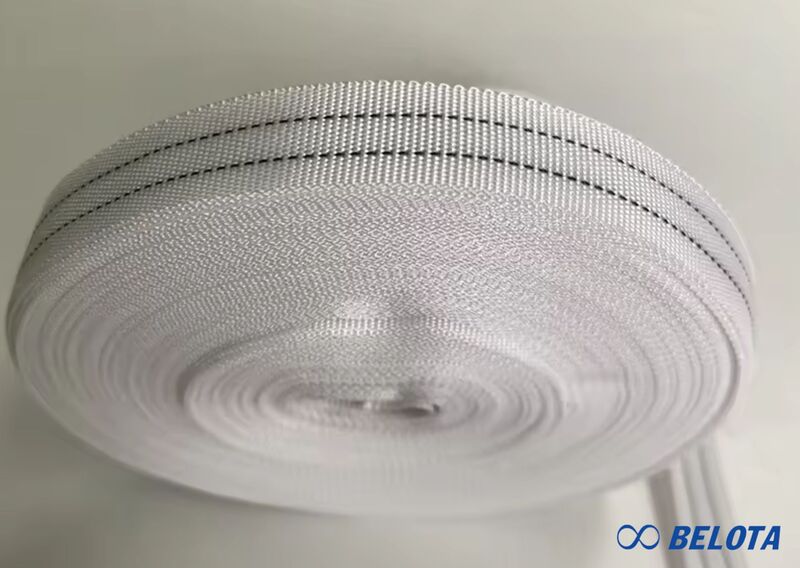

Anti-Static Polyester Guide Tape
Manufactured from 100% polyester with integrated anti-static stripes, offering excellent tensile strength and wear resistance for high-speed ironing systems.
- Material: 100% Polyester with anti-static stripes
- Working Temperature: Up to 190°C
- Width: 15 mm
- Length: 100 m, 400 m
- Suitable for: Steam-heated and high-speed flatwork ironers

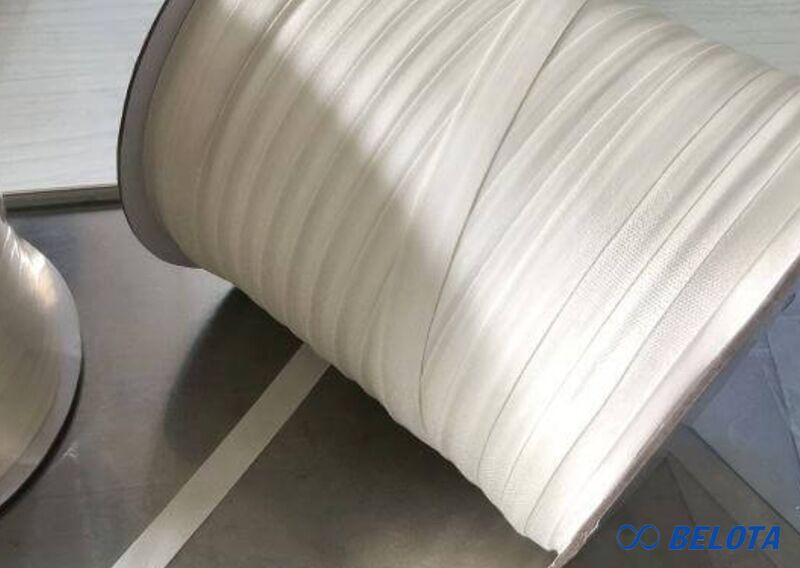

Meta-Aramid/Polyester Guide Tape
Made from a blend of Meta-Aramid and Polyester, this guide tape offers improved heat resistance and durability for higher-temperature ironing applications.
- Material: Meta-Aramid / Polyester
- Working Temperature: 180–210°C
- Width: 13 mm, 19 mm
- Length: 100 m, 400 m
- Suitable for: Electric-heated and gas-heated flatwork ironers

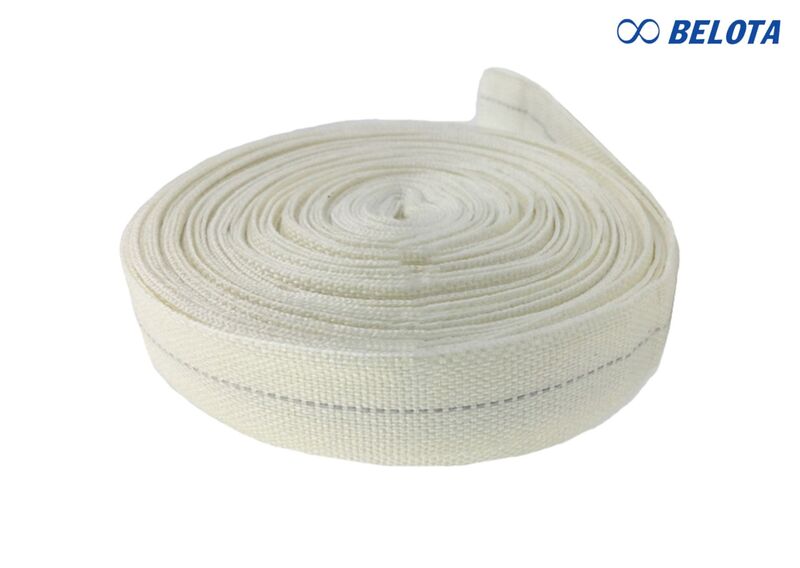

100% Nomex Guide Tape
Made from 100% Nomex® (Aramid), this premium guide tape is designed for high-temperature ironing systems requiring maximum thermal resistance.
- Material: 100% Nomex® (Aramid)
- Working Temperature: Up to 240°C
- Width: 13 mm, 19 mm
- Length: 100 m, 400 m
- Suitable for: Gas-heated flatwork ironers

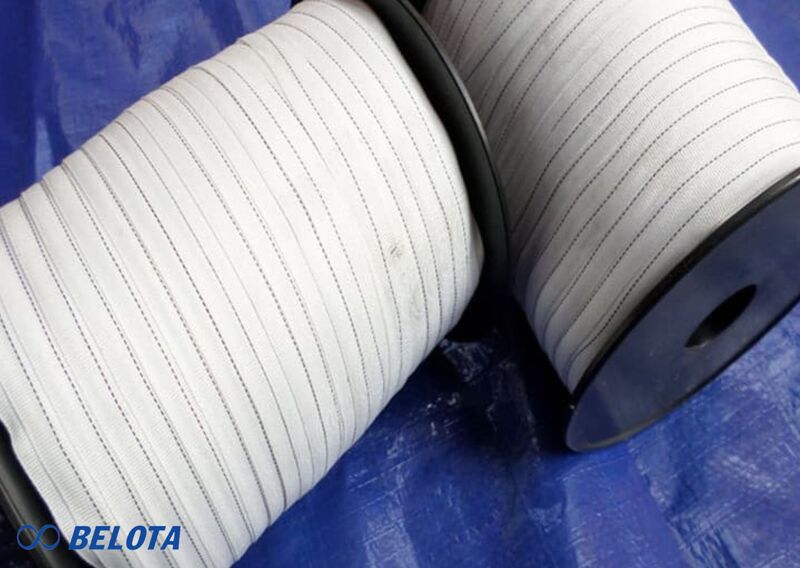

Benefits of Ironer Guide Tape
- Produces reliable, knot-free tape joints for enhanced durability and extended service life.
- Speeds up guide tape installation and replacement, helping reduce maintenance downtime.
- Suitable for joining Polyester, Meta-Aramid/Polyester, and 100% Nomex guide tapes.
- Lightweight and portable, making it ideal for on-site maintenance and servicing.
- Delivers consistent joining quality for improved operational reliability.
- Helps lower maintenance costs by extending the lifespan of guide tape connections.
Conclusion
Choosing the right Ironer Guide Tape is essential for maintaining smooth linen feeding, reducing machine downtime, and extending the service life of flatwork ironers. Whether you require Polyester for standard steam-heated systems, Meta-Aramid blends for higher operating temperatures, or 100% Nomex for demanding gas-heated applications, selecting the appropriate material will improve ironing performance and lower maintenance costs. At Belota, we offer a complete range of high-quality ironer guide tapes in standard and custom sizes to meet the needs of commercial laundry facilities worldwide.
