In modern material handling systems, roller turntable conveyors are considered an optimal conveyor solution for changing the direction of goods movement flexibly and accurately. The system allows pallets, cartons, and products to rotate at different angles such as 90°, 180°, or 360° while maintaining stable and continuous transportation.

With the ability to connect multiple conveyor lines within the same production system, roller turntable conveyors help optimize installation space, improve operational efficiency, and enhance factory automation. These systems are widely used in logistics centers, warehouses, product sorting systems, and industrial production lines.

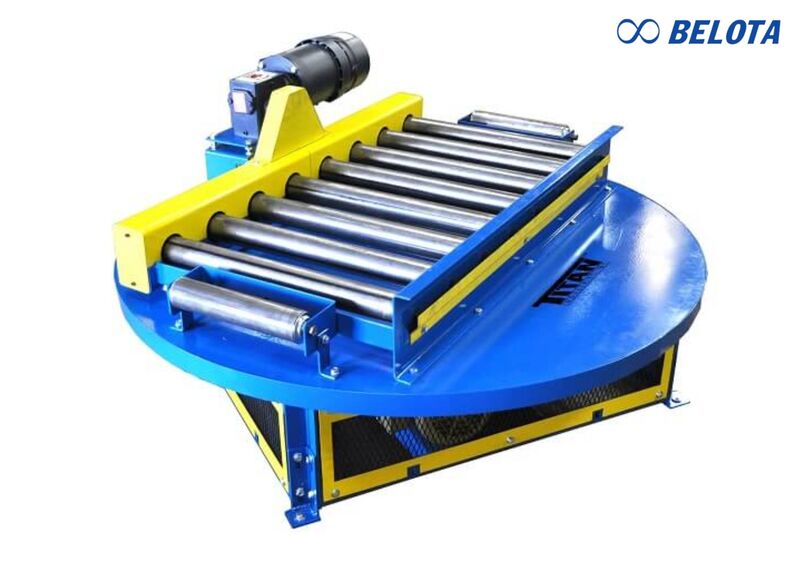

What Is a Roller Turntable Conveyor?

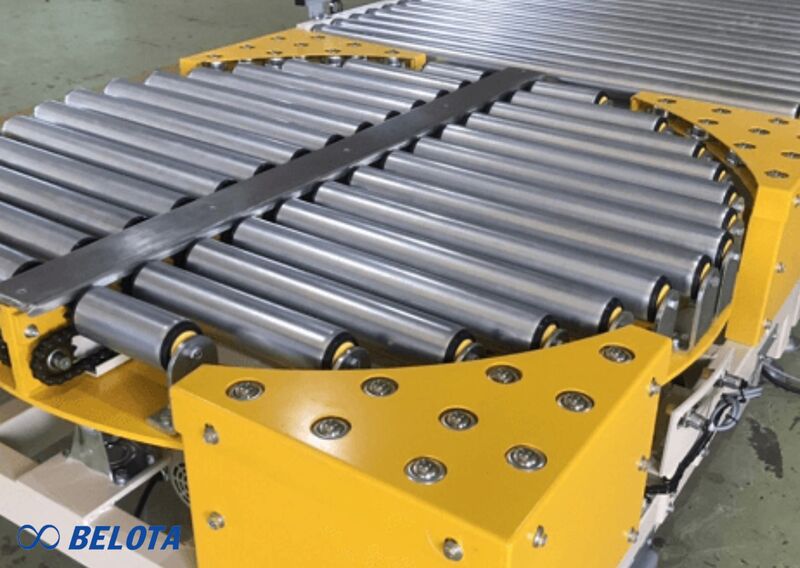

A roller turntable conveyor is an automated handling device designed to change the moving direction of products within a conveyor system. The equipment allows pallets, boxes, or products to rotate at different angles such as 90°, 180°, 270°, or 360° while maintaining stable positioning on the roller surface.

The system is commonly integrated with roller conveyor systems to support flexible product transfer without manual intervention.

Thanks to its flexible directional movement, roller turntable conveyors are widely applied in sorting lines, logistics systems, industrial manufacturing, and automated pallet handling systems.

Structure of a Roller Turntable Conveyor

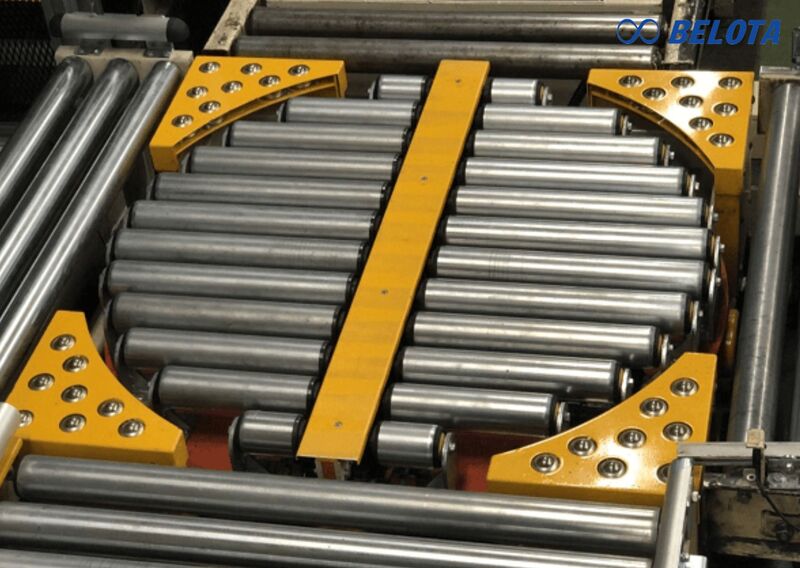

The roller turntable conveyor is designed with a durable structure to ensure high load capacity and stable operation during continuous use. The system typically includes the following main components:

  • Central rotating platform: The main component responsible for rotational movement and changing the transportation direction of goods.
  • Heavy-duty steel frame: Manufactured from powder-coated steel or stainless steel to provide high rigidity and excellent load-bearing capacity in industrial environments.
  • Roller conveying system: Uses galvanized steel rollers or stainless-steel rollers to allow smooth product transfer in and out of the turntable while reducing friction and improving operational stability.
  • Rotating drive mechanism: Commonly equipped with a gear motor combined with chain or gear transmission systems to ensure accurate rotation angles.
  • Control system: Can integrate PLCs or frequency inverters for speed adjustment, angle positioning, and synchronization with other production line equipment.
  • Support legs and leveling system: Help maintain stable operation, reduce vibration, and simplify height adjustment during installation.

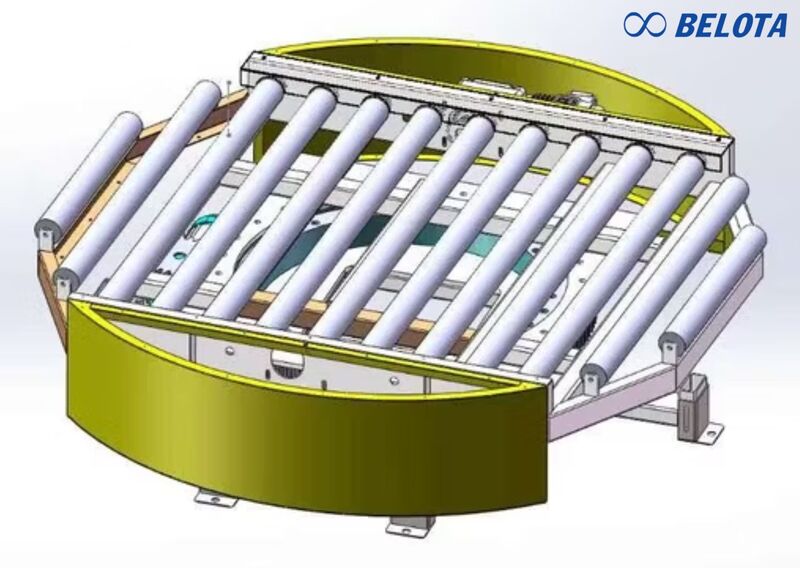

Technical Specifications of Roller Turntable Conveyors

  • Turntable diameter: commonly ranges from 800 mm to 2000 mm.
  • Transportation capability: suitable for pallets, cartons, and industrial packages.
  • Supported rotation angles: flexible rotation at 90°, 180°, 270°, and 360°.
  • Rotating speed: adjustable through a frequency inverter according to production line requirements.
  • Frame material: manufactured from powder-coated steel or SUS304 stainless steel.
  • Load capacity and corrosion resistance: suitable for continuous operation in demanding industrial environments.
  • Roller system: available with gravity rollers or chain-driven rollers.
  • Customized engineering design: tailored to actual load requirements, product dimensions, and operating speed.
  • Automation integration capability: easily connected with PLCs and modern automation systems.
  • Operational stability: designed for stable performance in continuous multi-shift production environments.

Advantages of Roller Turntable Conveyors in Automation Systems

  • Optimize installation space and reduce the need for multiple fixed curved conveyors.
  • Make conveyor systems more compact and flexible in limited factory spaces.
  • Support product rotation and direction changes at multiple angles such as 90°, 180°, and 360°.
  • Suitable for automatic sorting systems and intersecting conveyor lines.
  • Improve synchronization during pallet and package transportation.
  • Reduce product handling and transfer time within production lines.
  • Operate stably under heavy loads and continuous working conditions.
  • Easily integrated into modern automation systems.
  • Improve operational efficiency and optimize internal logistics processes.
  • Reduce product collisions during directional changes.

Practical Applications of Roller Turntable Conveyors

Logistics and Warehousing

Roller turntable conveyors help transfer pallets, cartons, and packages quickly between different transportation lines. They are widely used in sorting centers, smart warehouses, and automatic line distribution systems to optimize material flow and reduce handling time.

Industrial Manufacturing

In manufacturing systems, roller turntables support directional changes between production stages while maintaining synchronization and operational stability. They are suitable for automated assembly systems, packaging lines, and semi-finished product transportation.

Food Industry

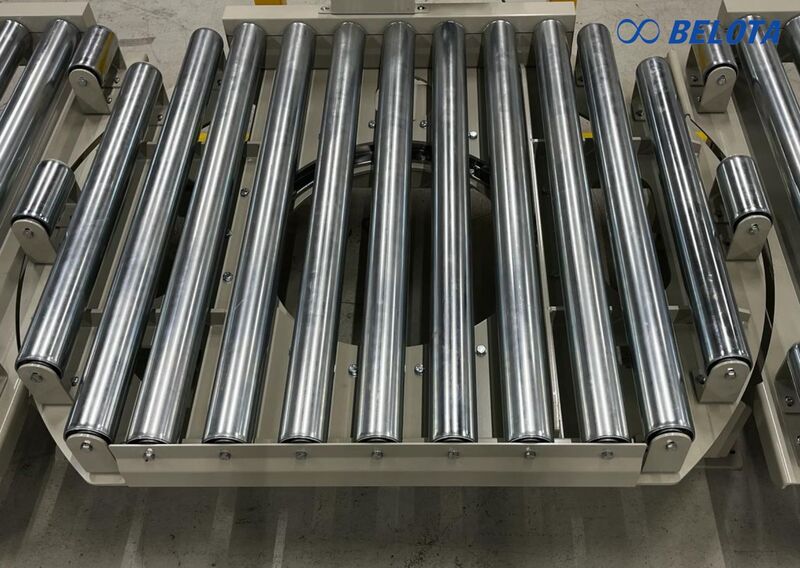

Roller turntable conveyors are applied in food processing and packaging lines to redirect trays, cartons, and products across multiple production lines. Stainless steel 304 models ensure hygiene standards and corrosion resistance while integrating easily with stainless steel roller conveyors in continuous transport systems.

Electronics Industry

In electronics manufacturing, the equipment helps transport and redirect components accurately between automated production areas. Stable operation minimizes vibration and protects precision components.

Printing and Footwear Industry

Roller turntables support flexible product transfer between printing, drying, and processing stages. Fast directional changes help optimize factory space and improve operational productivity.

Mining and Heavy Industry

For heavy-duty environments, roller turntable conveyors are used to redirect pallets and heavy materials in automated transport systems. The equipment is designed for continuous operation with high durability under harsh industrial conditions.

Why Choose Roller Turntable Conveyors from Belota?

Belota provides customized roller turntable conveyor solutions with flexible dimensions, load capacities, and rotation angles suitable for various production systems. Products are manufactured using high-quality materials to ensure stable operation and long service life.

Our engineering team supports on-site surveys and provides optimal solutions based on actual factory layouts and operating processes. Customers also receive installation support, maintenance services, and detailed operational guidance to ensure long-term efficiency.

If your business is looking for a solution to redirect pallets, packages, or optimize automated conveyor systems, Belota is ready to design and provide suitable roller turntable conveyor systems according to your operational requirements. With extensive experience in industrial rollers and conveyor systems, Belota delivers optimized solutions in terms of load capacity, dimensions, rotation angles, and system
