A PVC longitudinal cleat conveyor belt is widely used in packaging, sorting, and product handling lines that require high transport stability. With longitudinal cleats attached along the belt surface, the system helps guide products in a straight line, minimizing misalignment and product congestion during operation. Thanks to its flexible customization options, this type of conveyor belt is commonly applied in the food, packaging, pharmaceutical, and automated production industries.
What is a PVC Longitudinal Cleat Conveyor Belt?

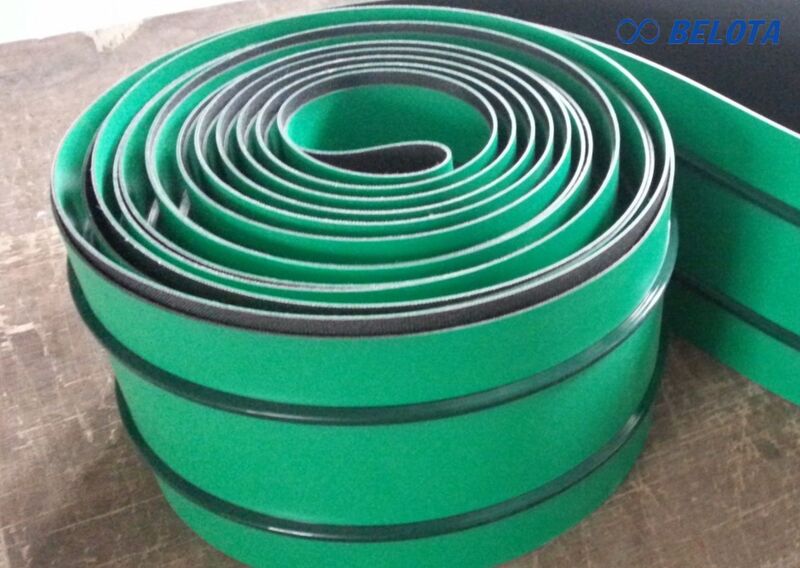

A PVC longitudinal cleat conveyor belt is a standard flat PVC conveyor belt that is modified with additional cleats running parallel to the belt’s traveling direction. These cleats are typically heat-welded or bonded directly onto the belt surface to guide products along a fixed path and prevent side drifting during operation.
Unlike V-cleat or transverse cleat belts designed for inclined conveying, longitudinal cleats mainly focus on maintaining product positioning and transport accuracy in automated production lines.
Working Principle
During transportation, especially with lightweight, unstable, or loose products such as bottles, cartons, and flexible packaging, issues like product drifting, clustering, or collision can easily occur.
The longitudinal cleats function as:
- Soft guiding rails on the conveyor surface
- Product lane separators
- Stabilizers that keep products moving straight without shifting sideways
As a result, products move more consistently, reducing operational errors and improving overall line efficiency.

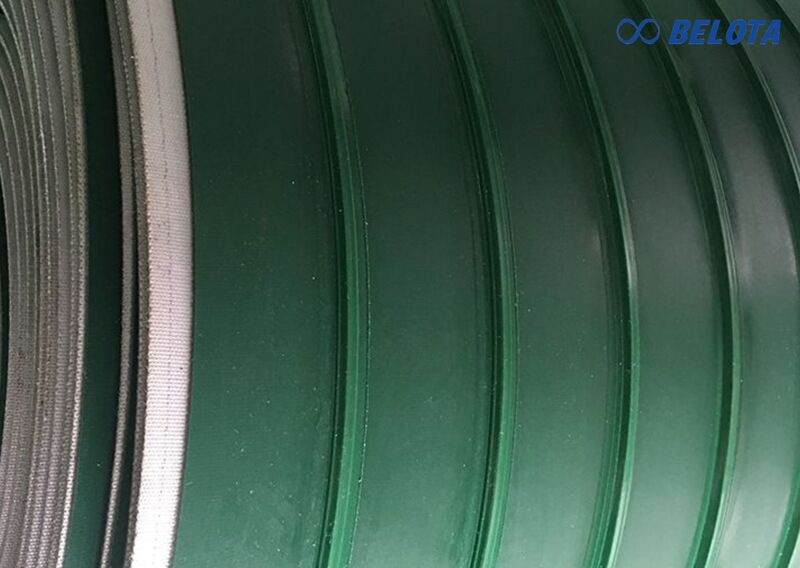

Structure of a PVC Longitudinal Cleat Conveyor Belt
A typical system includes:
- PVC base belt: Smooth, light textured, or patterned surface depending on the application
- Reinforcement layer: Usually polyester fabric for tensile strength and dimensional stability
- Longitudinal cleats (PVC or PU):
- Heat welded or bonded directly onto the belt surface
- Cleat height: 5mm – 50mm (customizable)
- Cleat spacing adjusted according to product dimensions
Technical Specifications
| Parameter | Reference Value |
|---|---|
| Material | PVC |
| Color | Green, white, black, gray |
| Belt thickness | 1mm – 5mm (or customized) |
| Belt width | Custom-made |
| Belt length | Designed per conveyor system |
| Cleat type | Longitudinal cleats (bonded/welded) |
| Operating temperature | -10°C to 80°C |
| Anti-static option | Optional |
| Accessories | Cleats, sidewalls, corrugated edges, guides |
Key Advantages of PVC Longitudinal Cleat Conveyor Belts

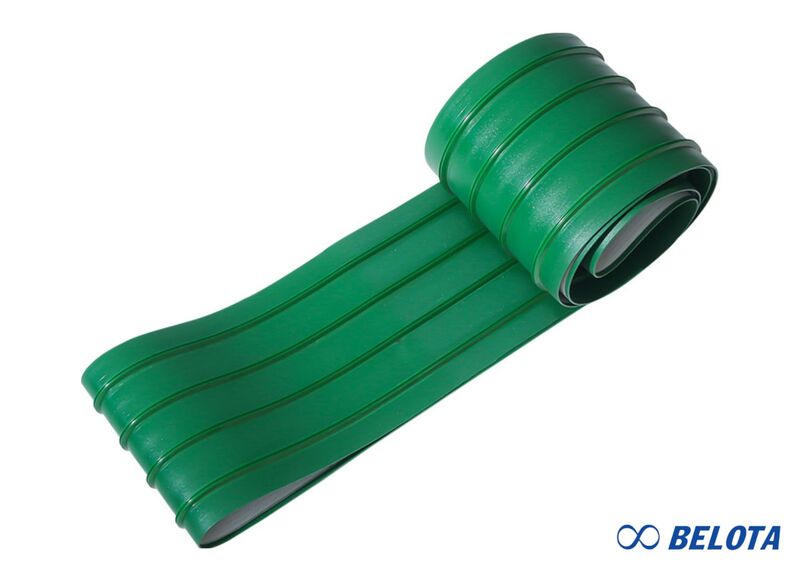

1. Keeps products aligned and stable: This is the most important advantage. Longitudinal cleats help maintain clear product positioning, especially in packaging, sorting, and automated feeding systems.
2. Improves operational stability: Reduces product congestion, overlapping, and line jams, minimizing downtime and production errors.
3. Flexible customization: The number, height, and spacing of cleats can be fully customized according to product size and application requirements.
4. Easy modification and replacement: Cleats can be added to existing conveyor belts without replacing the entire system.
5. More cost-effective than mechanical guides: Compared to stainless steel guide rails, longitudinal cleats provide a more economical and easier-to-clean solution.

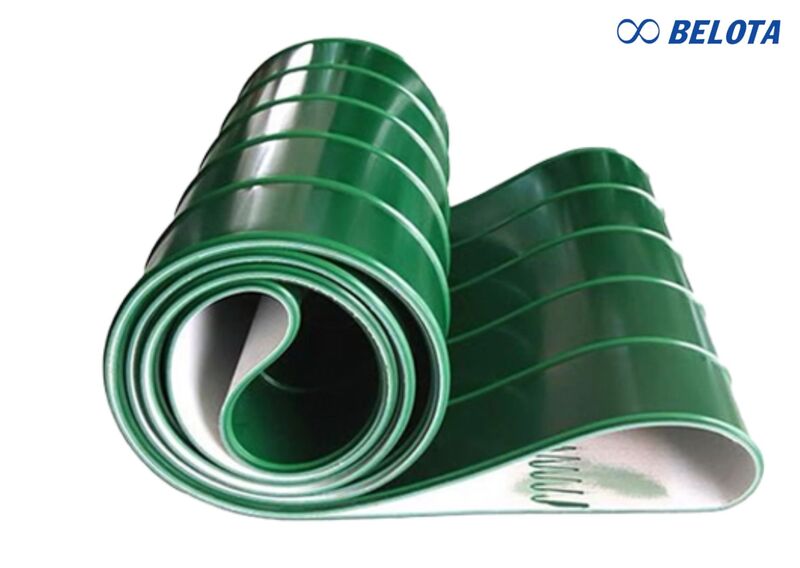

Practical Applications
- Food & beverage: Guiding bottles, cans, and boxes; product lane separation before packaging; stabilizing products at high speeds.
- Packaging industry: Conveying cartons, bags, and flexible packaging while maintaining product spacing and alignment.
- Pharmaceutical industry: Guiding blister packs and small bottles with high transport precision.
Comparison: Longitudinal Cleats vs Transverse Cleats
| Criteria | Longitudinal Cleats | Transverse Cleats |
|---|---|---|
| Main function | Product guiding and anti-deviation | Prevent product slipping on inclines |
| Cleat direction | Parallel to belt movement | Perpendicular to belt movement |
| Applications | Packaging and sorting lines | Inclined conveyors and lifting conveyors |
PVC Longitudinal Cleat Conveyor Belt Fabrication at Belota
Belota provides customized conveyor fabrication solutions, including:
- Longitudinal cleat bonding/welding based on product dimensions
- Optimized cleat layout design for each production line
- Belt joining, heat pressing, and on-site installation
- Fast maintenance and replacement services
With practical experience in industrial conveyor systems, Belota not only supplies products but also provides effective operational solutions tailored to real production needs.
Conclusion
A PVC longitudinal cleat conveyor belt is more than just a conveyor component — it is a technical solution that improves product guidance, reduces operational errors, and enhances the overall stability of production lines. If your system is experiencing product drifting, lane congestion, or positioning issues, this solution is worth considering for both efficiency and cost optimization.
