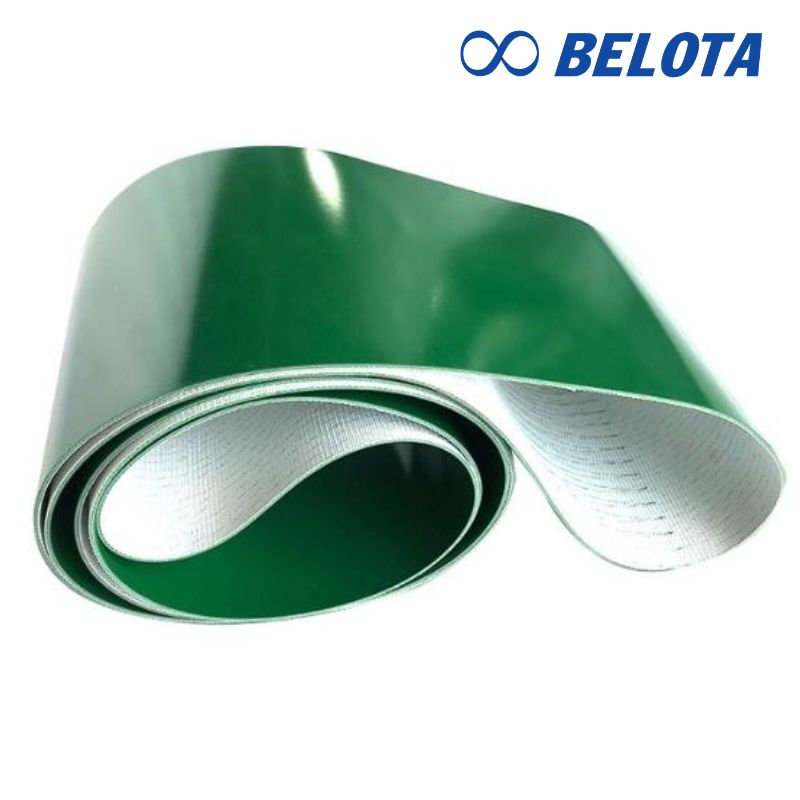

Heat Resistant PVC Conveyor Belt

Typical Technical Specifications:

• Material: Reinforced synthetic PVC with heat-resistant additives, offering high durability and flexibility.

• Standard thickness: Available from 1 mm to 5 mm, customizable according to product load.

• Reinforcement layers: Constructed with 1–4 plies of woven polyester fabric, providing excellent tensile strength and low elongation.

• Operating temperature: Stable performance from –10°C to +80°C.

• Surface characteristics: Optional smooth surface or textured finishes such as rough, chevron, or cleated patterns.

• Belt width: Maximum production width up to 3000 mm, cut and fabricated to customer requirements.

• Tensile strength: Ranges from 80 to 200 N/mm, ensuring stable operation with minimal belt take-up.

• Custom fabrication options: Support for adding guide ribs, sidewalls (corrugated edges), or other attachments as required.
