A vertical bucket elevator is a material handling system designed to transport bulk materials vertically. It is widely used in industries such as cement, animal feed, agriculture, chemicals, fertilizers, and mining. With its large conveying capacity, stable operation, space-saving design, and efficient vertical lifting capability, the vertical bucket elevator has become an ideal solution for modern industrial production lines. In this article, BELOTA provides a detailed overview of this unique conveyor system, including its structure, operating principle, advantages, and practical applications.

What Is a Vertical Bucket Elevator?

A vertical bucket elevator is a mechanical conveying system used to transport granular, powdered, or bulk materials from a lower position to a higher position vertically or at an inclined angle.

The system operates through a belt or chain mechanism combined with a series of buckets attached continuously along the conveyor line. During operation, the buckets scoop materials from the loading section at the bottom, lift them upward, and discharge them at the top outlet through centrifugal force or gravity.

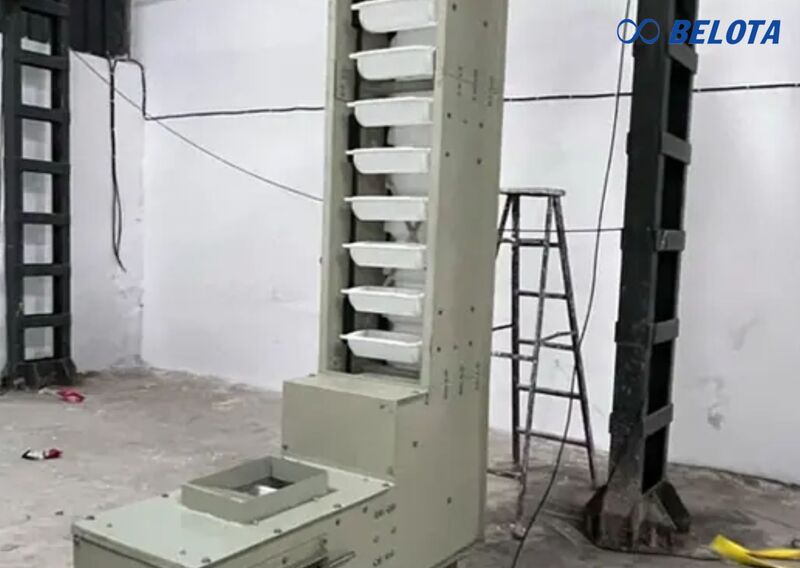

Gầu tải đứng là thiết bị cơ khí chuyên dùng để vận chuyển vật liệu rời từ vị trí thấp lên vị trí cao theo phương thẳng đứng hoặc nghiêng

Structure of a Vertical Bucket Elevator

A standard vertical bucket elevator consists of the following main components:

Automatic Drive System

The drive system includes an electric motor, gearbox, drive pulley, and tail pulley. The drive pulley transfers power to move the bucket belt, while the tail pulley maintains proper belt tension for stable operation.

Elevator Frame

The frame is typically fabricated from CT3 steel, reinforced steel, or stainless steel 304 depending on the operating environment. It supports the entire system structure and is enclosed with sheet metal or steel panels to minimize material spillage.

Conveyor Belt

The bucket belt transfers motion from the motor to the buckets. It is usually manufactured from high-strength synthetic rubber materials such as:

  • EP 600
  • EP 800
  • EP 1000
  • PVC 300
  • PVC 450
  • PVC 600
  • 600 YP
  • 800 YP
  • 1000 YP

These materials provide excellent tensile strength and durability for continuous industrial operation.

Buckets

Buckets are the components directly responsible for carrying and transporting materials. They can be made from:

  • Standard steel

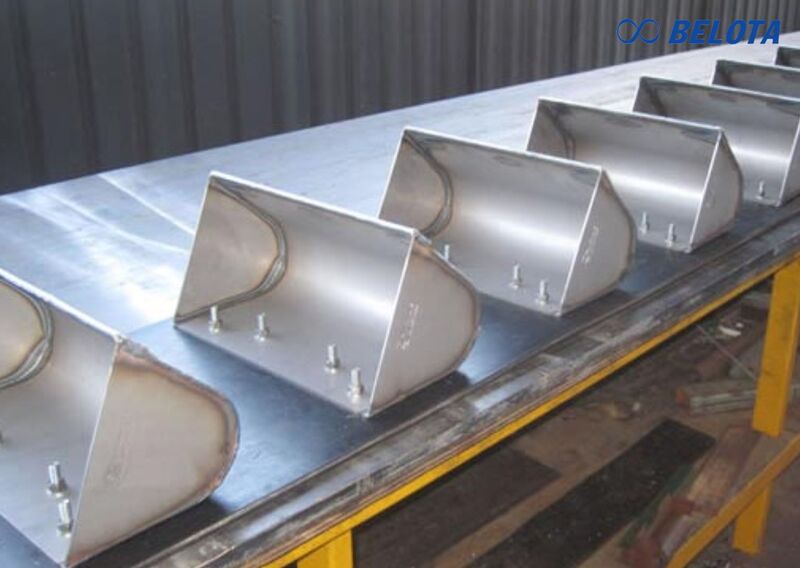

  • Stainless steel
  • High wear-resistant plastic

The bucket material is selected based on the characteristics of the conveyed material.

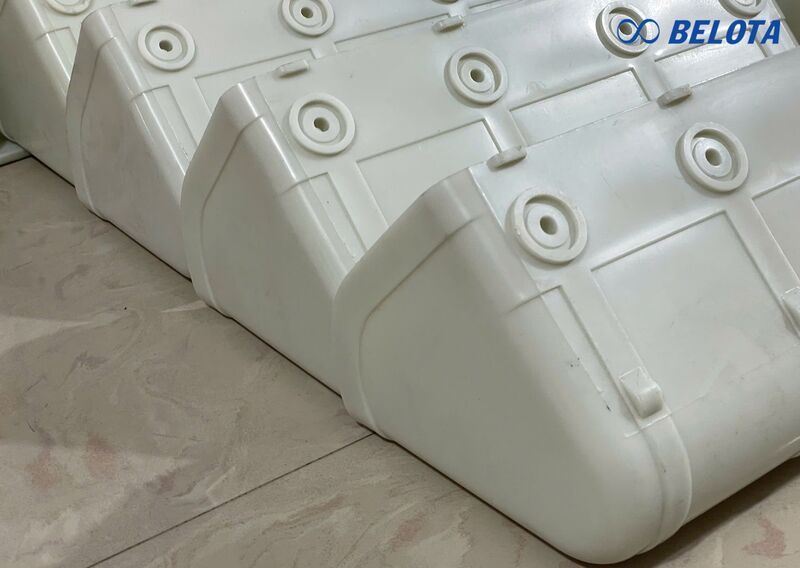

Gầu tải được thiết bị được chế tạo từ vật liệu chắc chắn, chịu mài mòn tốt

Bucket Bolts

Bucket bolts are used to securely fasten the buckets to the belt. They are commonly manufactured from galvanized and heat-treated steel for improved hardness and durability.

Inlet Hopper and Discharge Outlet

The inlet hopper allows materials to enter the system smoothly, while the discharge outlet ensures materials are released accurately with minimal loss.

Electrical Control Cabinet

The control cabinet integrates inverters, sensors, and control systems to ensure stable operation, adjustable speed, and safe performance.

Working Principle of a Vertical Bucket Elevator

Materials are fed into the inlet hopper at the bottom of the bucket elevator. When the motor starts operating, the drive pulley rotates and generates pulling force, causing the bucket belt to move continuously in a vertical direction.

As the system operates, the buckets continuously scoop materials from the lower section and lift them upward. When the buckets pass over the head pulley, centrifugal force combined with gravity causes the materials to discharge automatically into the outlet chute, completing the conveying process.

There are two common discharge methods:

  • Centrifugal discharge: Suitable for dry, light, and fine materials such as grain, feed, and fertilizer.
  • Gravity discharge: Suitable for heavy, sticky, or large-sized materials such as stone, ore, and coal.

Technical Specifications

  • Conveying capacity: 5 – 40 tons/hour
  • Large-capacity systems: 30 – 200 m³/hour
  • Belt speed: 1 – 2 m/s
  • Lifting height: Customized based on requirements
  • Power supply: 380V – 3 phase – 50Hz
  • Construction materials: Steel, stainless steel, engineering plastics
  • Drive system: Motor + gearbox + pulley

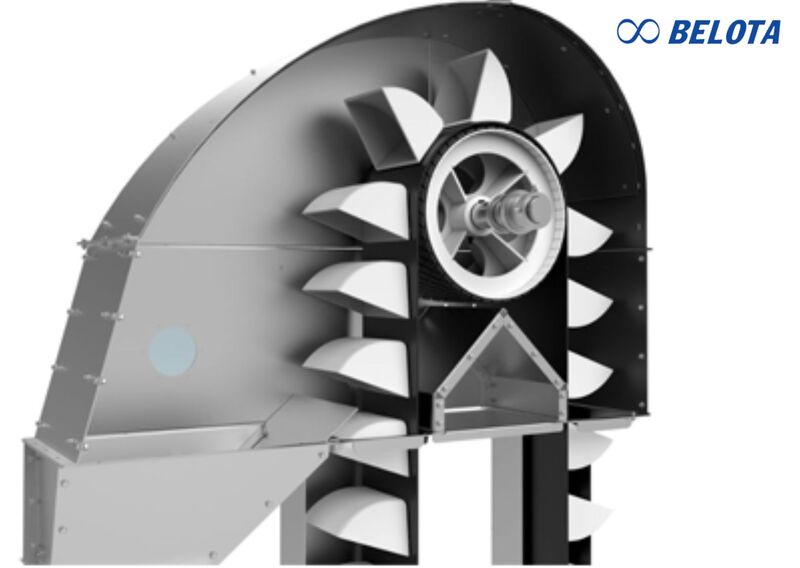

Thông số kỹ thuật gầu tải đứng

Advantages of Vertical Bucket Elevators

  • Space-Saving Design: The vertical structure maximizes factory height usage, making it ideal for facilities with limited floor space.
  • Large Conveying Capacity: The system can transport heavy materials such as coal, iron ore, cement, bricks, clinker, and other bulk products.
  • High Operational Efficiency: Continuous and stable operation with high capacity helps improve overall production productivity.
  • Reduced Spillage and Dust: The enclosed system design minimizes material loss while improving workplace cleanliness and environmental safety.
  • High Durability: Manufactured from strong and wear-resistant materials, bucket elevators offer long service life and reliable operation.
  • Easy Maintenance and Installation: The simple structure allows convenient installation, maintenance, and replacement of components.

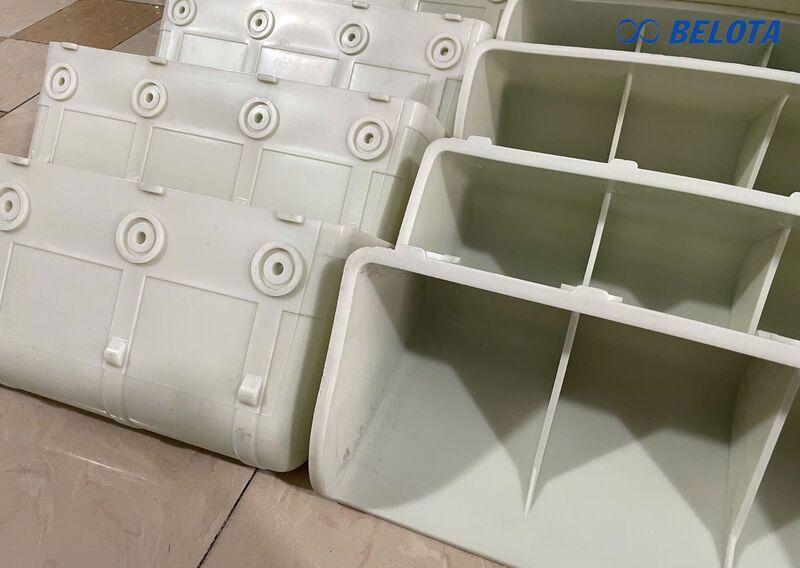

Belota nhập khẩu nhiều dòng gầu tải, linh kiện và vật tư từ các nhà cung cấp nước ngoài uy tín

Applications of Vertical Bucket Elevators

Construction Industry: Used for transporting sand, stone, cement, limestone powder, clinker, and kiln materials.

Animal Feed Industry: Suitable for conveying feed pellets, corn powder, soybean meal, and mixed ingredients into silos.

Agricultural Industry: Commonly used for lifting rice, grain, corn, coffee beans, beans, and various agricultural products.

Chemical & Fertilizer Industry: Used to transport NPK fertilizer, organic fertilizer, chemicals, powders, and granular materials.

Mining Industry: Suitable for handling coal, iron ore, minerals, and heavy crushed materials.

Why Choose Vertical Bucket Elevators from BELOTA ?

BELOTA specializes in supplying and designing high-quality vertical bucket elevator systems tailored to the operational requirements of different industries.

We are committed to:

  • Designing systems with the correct operating capacity and specifications
  • Using durable and wear-resistant materials with long service life
  • Providing precise fabrication and professional installation
  • Offering customized solutions for industries such as food processing, agriculture, cement, and animal feed
  • Delivering competitive pricing directly from the manufacturer

In addition, BELOTA imports various bucket elevator components and materials from trusted international suppliers, helping customers access high-quality products at optimized costs. With stable supply sources and strict quality control, BELOTA systems ensure excellent durability, reliable performance, and efficient long-term operation.

With strong support capabilities across Southern Vietnam, BELOTA can quickly provide consultation, delivery, installation, and technical assistance for customers in Ho Chi Minh City, Binh Duong, Dong Nai, Long An, Tay Ninh, and nearby industrial zones.

Conclusion

A vertical bucket elevator is an efficient material handling solution for vertical conveying applications, helping businesses save space and optimize operational costs. With high conveying capacity, stable performance, and versatile industrial applications, it has become an essential system in modern production lines.

If your business is looking for a reliable and high-quality vertical bucket elevator solution, BELOTA
 is always ready to provide the most suitable system for your production needs.
