E Section V-belts are large-size V-belts designed for very heavy-duty and continuous power transmission systems. Thanks to their robust construction, high load-bearing capacity, excellent pulley grip, and outstanding durability, E-type V-belts meet demanding operating requirements in heavy industries such as cement, mining, steel, and construction. In this article, Belota will help you gain a better understanding of the features, technical specifications, and practical applications of this drive belt type, enabling you to choose the right belt for your power transmission system.
Introduction to E Section V-Belts
E Section V-belts belong to the large classical V-belt category and are specifically engineered for high-power transmission systems. These belts deliver superior strength and ensure stable performance even under harsh working conditions.
Standard Technical Specifications
- Top width: 40 mm
- Thickness: 25.5 mm
- V-angle: 40°
E Section V-Belt Size Reference Chart
Below is the standard size reference table for E Section V-belts, covering models from E160 to E500, with consistent specifications:
|
Mã sản phẩm |
Độ dài dây (mm) |
Chiều ngang (mm) |
Độ dày (mm) |
Góc nghiêng (độ) |
|
E160 |
4064 |
40 |
25,5 |
40 |
|
E165 |
4191 |
40 |
25,5 |
40 |
|
E170 |
4318 |
40 |
25,5 |
40 |
|
E175 |
4445 |
40 |
25,5 |
40 |
|
E180 |
4572 |
40 |
25,5 |
40 |
|
E185 |
4699 |
40 |
25,5 |
40 |
|
E190 |
4826 |
40 |
25,5 |
40 |
|
E195 |
4953 |
40 |
25,5 |
40 |
|
E200 |
5080 |
40 |
25,5 |
40 |
|
E205 |
5207 |
40 |
25,5 |
40 |
|
E210 |
5334 |
40 |
25,5 |
40 |
|
E215 |
5461 |
40 |
25,5 |
40 |
|
E220 |
5588 |
40 |
25,5 |
40 |
|
E225 |
5715 |
40 |
25,5 |
40 |
|
E230 |
5842 |
40 |
25,5 |
40 |
|
E235 |
5969 |
40 |
25,5 |
40 |
|
E240 |
6096 |
40 |
25,5 |
40 |
|
E245 |
6223 |
40 |
25,5 |
40 |
|
E250 |
6350 |
40 |
25,5 |
40 |
|
E255 |
6477 |
40 |
25,5 |
40 |
|
E260 |
6604 |
40 |
25,5 |
40 |
|
E265 |
6731 |
40 |
25,5 |
40 |
|
E270 |
6858 |
40 |
25,5 |
40 |
|
E275 |
6985 |
40 |
25,5 |
40 |
|
E280 |
7112 |
40 |
25,5 |
40 |
|
E285 |
7239 |
40 |
25,5 |
40 |
|
E290 |
7366 |
40 |
25,5 |
40 |
|
E295 |
7493 |
40 |
25,5 |
40 |
|
E300 |
7620 |
40 |
25,5 |
40 |
|
E305 |
7747 |
40 |
25,5 |
40 |
|
E310 |
7874 |
40 |
25,5 |
40 |
|
E315 |
8001 |
40 |
25,5 |
40 |
|
E320 |
8128 |
40 |
25,5 |
40 |
|
E325 |
8255 |
40 |
25,5 |
40 |
|
E330 |
8382 |
40 |
25,5 |
40 |
|
E335 |
8509 |
40 |
25,5 |
40 |
|
E340 |
8636 |
40 |
25,5 |
40 |
|
E345 |
8763 |
40 |
25,5 |
40 |
|
E350 |
8890 |
40 |
25,5 |
40 |
|
E355 |
9017 |
40 |
25,5 |
40 |
|
E360 |
9144 |
40 |
25,5 |
40 |
|
E365 |
9271 |
40 |
25,5 |
40 |
|
E370 |
9398 |
40 |
25,5 |
40 |
|
E375 |
9525 |
40 |
25,5 |
40 |
|
E380 |
9652 |
40 |
25,5 |
40 |
|
E385 |
9779 |
40 |
25,5 |
40 |
|
E390 |
9906 |
40 |
25,5 |
40 |
|
E395 |
10033 |
40 |
25,5 |
40 |
|
E400 |
10160 |
40 |
25,5 |
40 |
|
E405 |
10287 |
40 |
25,5 |
40 |
|
E410 |
10414 |
40 |
25,5 |
40 |
|
E415 |
10541 |
40 |
25,5 |
40 |
|
E420 |
10668 |
40 |
25,5 |
40 |
|
E425 |
10795 |
40 |
25,5 |
40 |
|
E430 |
10922 |
40 |
25,5 |
40 |
|
E435 |
11049 |
40 |
25,5 |
40 |
|
E440 |
11176 |
40 |
25,5 |
40 |
|
E445 |
11303 |
40 |
25,5 |
40 |
|
E450 |
11430 |
40 |
25,5 |
40 |
|
E455 |
11557 |
40 |
25,5 |
40 |
|
E460 |
11684 |
40 |
25,5 |
40 |
|
E465 |
11811 |
40 |
25,5 |
40 |
|
E470 |
11938 |
40 |
25,5 |
40 |
|
E475 |
12065 |
40 |
25,5 |
40 |
|
E480 |
12192 |
40 |
25,5 |
40 |
|
E485 |
12319 |
40 |
25,5 |
40 |
|
E490 |
12446 |
40 |
25,5 |
40 |
|
E495 |
12573 |
40 |
25,5 |
40 |
|
E500 |
12700 |
40 |
25,5 |
40 |
Applications of E Section V-Belts
E Section V-belts are designed for extremely heavy-duty power transmission systems that require high tensile strength and continuous operation. Thanks to their robust structure and excellent resistance to slippage, they are widely used in:

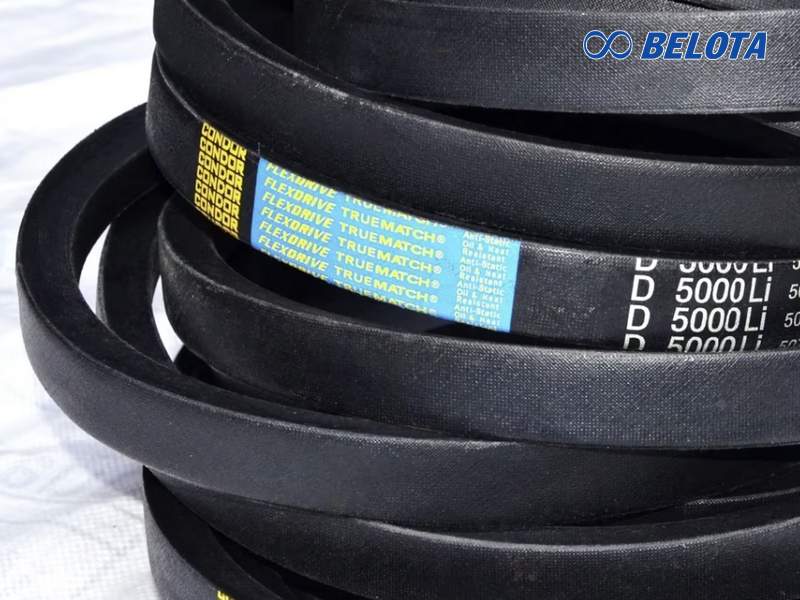

- Heavy industrial machinery: stone crushers, cement mills, steel rolling machines, and high-capacity presses. These are applications where D-section V-belts may struggle to meet performance requirements as load demands and power transmission needs increase.
- Mining and mineral processing: heavy conveyor systems, vibrating screens, ore separation equipment
- Cement plants and power stations: large industrial fans, blowers, high-capacity compressors
- Large-scale construction equipment: concrete batching plants, industrial mixers, foundation drilling machines
- Industrialized agriculture: large choppers, grinders, and drive systems for processing lines. For small- to medium-power machinery, smaller belt profiles such as B and A-section V-belts are generally more suitable.
- Continuous-duty transmission systems: applications requiring minimal elongation, reduced vibration, and long-term operational stability
Where to Buy Genuine E Section V-Belts
Stable power transmission, strong pulley grip, and long-lasting performance – high-quality E Section V-belts from Belota are the optimal choice for modern industrial machinery. We are committed to providing:
✅ Premium materials – High-grade synthetic rubber and PU, excellent strength and wear resistance
✅ Optimized transmission efficiency – Reduced slippage, stable torque, extended equipment lifespan
✅ Wide product range – V-belts, timing belts, PU belts, flat belts, round belts for all applications
✅ Custom sizing – Cut-to-length solutions based on load, speed, and pulley requirements
✅ Industrial-grade reliability – Oil-resistant, heat-resistant, stable in harsh environments
✅ Expert technical consultation – Professional support to select the correct belt for each machine
✅ Fast installation and replacement – Nationwide service with standard-compliant procedures
✅ Lower operating costs – Minimal stretching and wear, reduced maintenance frequency
✅ Easy integration – Compatible with pumps, compressors, CNC machines, conveyors, and production equipment
📞 Contact Belota at 0917.657.946 for professional consultation and to select the right V-belt for your transmission system.
