The C106 V-belt has an inside length of 2,692 mm (106 inches) and a 22 × 14 mm cross-section. It is well suited to industrial drive systems that require a longer drive belt, reliable load handling, and stable continuous operation. Belota supplies C106 V-belts from leading brands including Bando, Gates, Mitsuboshi, and Optibelt.

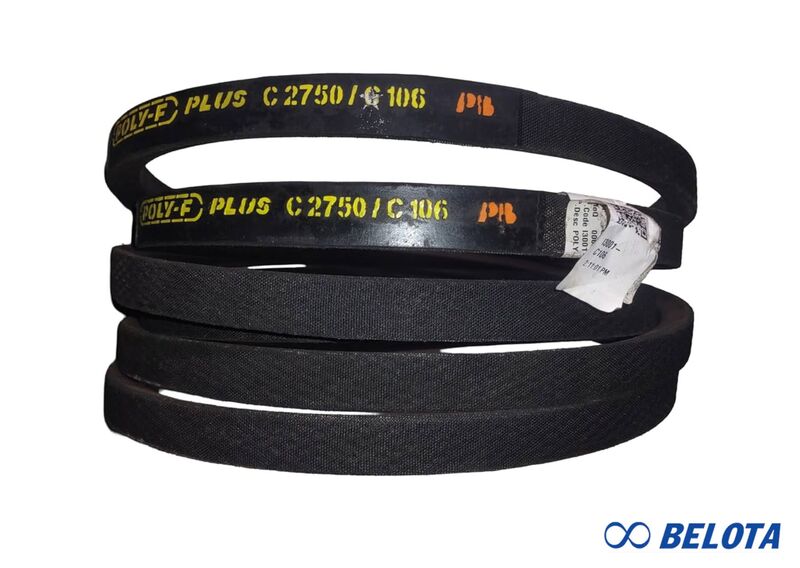

What Is a C106 V-Belt?

The C106 V-belt is a Classical V-belt with a Section C profile, designed to transmit power from a motor to pulleys in mechanical equipment. With a nominal length of 106 inches, this belt is suitable for drive systems with relatively large center-to-center pulley distances.

The belt consists of a synthetic rubber outer layer reinforced with high-strength tensile cords. This construction provides good tensile strength, secure pulley grip, reduced slippage, and effective vibration absorption during operation. Compared with C104 and C105, the C106 is 25.4 mm longer for each size increment, so the correct belt should be selected based on the actual dimensions of the drive system.

Common brands available for the C106 include:

  • Bando C106 V-Belt
  • Mitsuboshi C106 V-Belt
  • Gates C106 V-Belt
  • Optibelt C106 V-Belt
  • PIX C106 V-Belt
  • Sundt C106 V-Belt

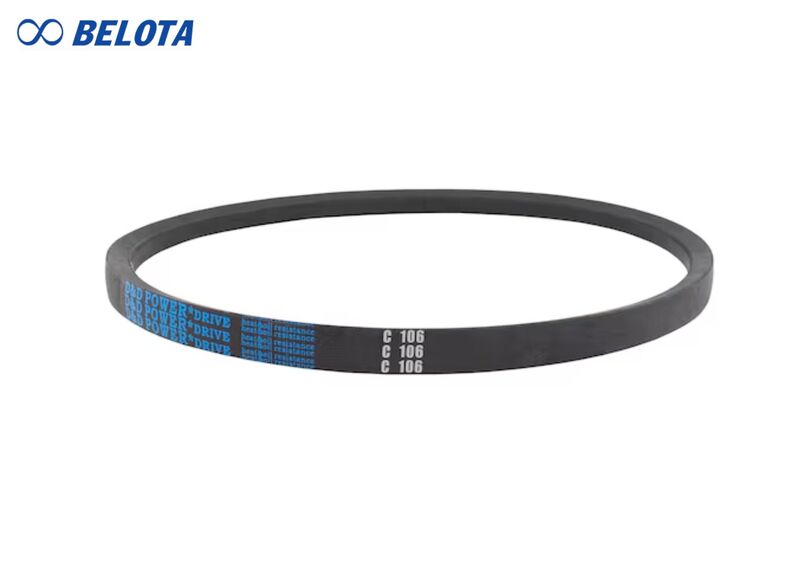

C106 V-Belt Technical Specifications

  • Belt Code: C106
  • Belt Type: Classical V-Belt – Section C
  • Inside Length: 2,692 mm (106 inches)
  • Outside Length: 2,794 mm
  • Top Width: 22 mm
  • Thickness: 14 mm
  • Included Angle: 40°
  • Minimum Pulley Diameter: 180 mm
  • Maximum Belt Speed: 30 m/s
  • Operating Temperature: -30°C to 90°C
  • Material: Synthetic Rubber
  • Standard: RMA

Note: Specifications may vary slightly between manufacturers. Before replacing a belt, check the dimensions of the existing belt and refer to the manufacturer's catalogue to ensure proper pulley compatibility.

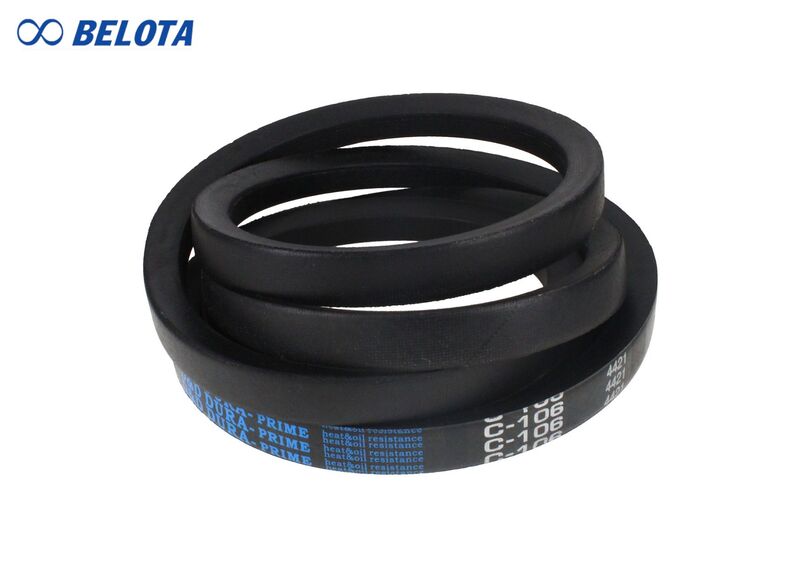

Applications of the C106 V-Belt

With its Section C profile and reliable power transmission capability, the C106 V-belt is used in a wide range of industrial machinery:

  • Machining equipment: Used on lathes, milling machines, drilling machines, cutting machines, and other equipment requiring stable power transmission.
  • Industrial conveyor systems: Installed in conveyor drive assemblies, particularly where the motor and pulley have a relatively large center distance.
  • Woodworking machinery: Suitable for saws, planers, sanders, and other woodworking equipment.
  • Crushers and mixers: Used in machinery that requires reliable torque transmission and continuous operation.
  • Cement and mining equipment: Applied to crushers, screens, feeders, and heavy-duty drive systems operating in demanding environments.
  • Agricultural machinery: Used on grinders, threshers, animal-feed processing machines, and other agricultural equipment.

Compared with the C105 V-belt, the C106 has an inside length that is 25.4 mm longer, making it more suitable for drive systems that require a longer belt. However, belt selection should not be based on the code alone. Pulley dimensions, center distance, and operating conditions should also be checked.

Belota - Supplier of Genuine C106 V-Belts

Belota supplies C106 V-belts from reputable brands such as BANDO, Gates, Mitsuboshi, Optibelt, and PIX, serving replacement and maintenance needs across various industrial applications.

When purchasing a C106 V-belt from Belota, customers receive:

  • Products with clear and traceable origins.
  • Assistance checking and confirming the correct C106 belt code.
  • Brand recommendations based on load requirements and operating conditions.
  • Support checking the existing belt and pulley dimensions before ordering.
  • Nationwide delivery across Vietnam.

CO/CQ documentation when available or required for specific products or projects.

If you are unsure about the correct belt code, you can provide the dimensions of your existing belt, machine details, or photos of the pulleys. The Belota technical team can help check the specifications and recommend a suitable replacement.
