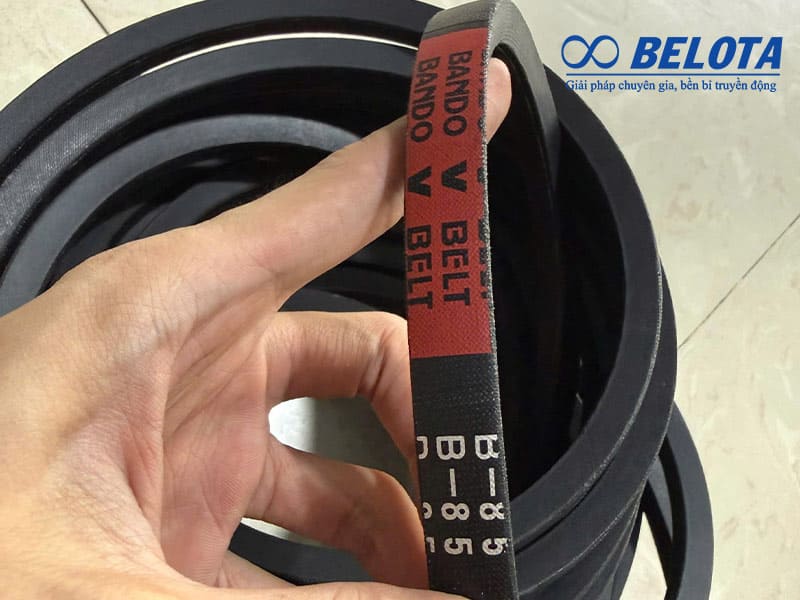

B85 V-belt

The B85 V-belt is widely used in industrial power transmission systems thanks to its stable power transfer, high mechanical strength, and compatibility with standard pulleys. This drive belt is suitable for a wide range of equipment, from agricultural machinery and air compressors to woodworking machines and general industrial applications, helping optimize operating efficiency and reduce maintenance downtime.

B85 V-Belt Specifications

The B85 belt is a classical V-belt manufactured according to international dimensional standards.

Technical Note: The nominal length (Ld) is the most important parameter when selecting a replacement belt. Depending on the manufacturer, the outside length (Lo) or pitch length (Lp) may vary slightly.

Construction of the B85 V-Belt

A B85 belt is typically composed of multiple layers to ensure excellent load-carrying capacity and long service life.

• Protective Rubber Cover: Protects internal components from abrasion, moisture, and environmental exposure.
• Fabric Layer: Improves mechanical strength and helps maintain dimensional stability.
• Tension Member: Usually made from polyester or aramid (Kevlar) cords to withstand tensile loads during operation.
• Compression Section: Contacts the pulley groove directly, generating friction for power transmission while absorbing vibration and shock loads.

Materials Used

Most B85 V-belts available on the market are manufactured from the following materials:

• Synthetic Rubber (CR, EPDM, SBR): Provides excellent heat resistance, oil resistance, and aging performance.
• Polyester or Kevlar Cords: Offer high tensile strength and minimal elongation.
• Nylon or Polyester Fabric: Enhances wear resistance and structural stability.

Selecting the appropriate materials helps maintain reliable transmission efficiency under various operating conditions.

Advantages of the B85 V-Belt

The B85 belt is widely used due to several technical advantages:

• Stable power transmission in mechanical drive systems.
• Excellent anti-slip performance thanks to its V-shaped profile.
• High mechanical durability for continuous-duty applications.
• Effective vibration absorption, reducing dynamic loads.
• Compatible with standard B-section pulleys.
• Easy installation and maintenance without lubrication requirements.

Applications of the B85 V-Belt

The B85 V-belt is commonly used in various industrial and agricultural equipment, including:

• Agricultural Machinery: Used in combine harvesters, rice milling machines, feed grinders, and other agricultural processing equipment.
• Air Compressors: Suitable for medium and large reciprocating air compressors, ensuring reliable power transmission between the motor and compressor head.
• Woodworking Machinery: Applied in saws, planers, sanders, and industrial wood-processing equipment.
• Water Pumps: Widely used in irrigation systems, industrial water supply pumps, and domestic pumping applications.
• Industrial Fans: Installed in dust collection fans, factory ventilation systems, and exhaust air handling equipment.
• Crushers and Grinding Machines: Used in stone crushers, raw material grinders, and feed processing machinery.
• Conveyor Systems: Applied in material handling conveyors, construction material transport systems, and automated production lines.
• Other Mechanical Equipment: Suitable for mixers, packaging machines, small generators, and numerous industrial transmission systems.

In these applications, the B85 belt serves as a critical component connecting the motor to driven equipment, ensuring smooth power transmission and maintaining operational efficiency.

How to Select the Right B85 V-Belt

Several technical factors should be considered when choosing a B85 belt:

• Pulley Dimensions: Verify that the pulley uses a standard B-section groove (17 mm width) with a 40° groove angle.
• Center Distance: Ensure that the 85-inch belt length matches the center distance between the pulleys.
• Motor Power and Speed: For heavy-duty applications, multiple belts operating in parallel may be required to increase power transmission capacity.
• Operating Environment: In environments exposed to oil, high temperatures, or excessive dust, belts made from specialized rubber compounds are recommended.
• Brand and Product Quality: Choosing belts from reputable manufacturers ensures dimensional accuracy, consistent quality, and extended service life.

When Should a B85 Belt Be Replaced?

Regular inspection and timely replacement help prevent unexpected downtime. Common signs indicating belt replacement include:

• Cracks or rubber deterioration on the belt surface.
• Uneven wear or excessive edge wear.
• Squealing noises during startup or under load.
• Excessive stretching or belt sagging.
• Belt misalignment or jumping out of the pulley groove.
• Reduced transmission efficiency.

As a general recommendation, belt conditions should be inspected every 500–1,000 operating hours or according to the equipment manufacturer's maintenance schedule.

Where to Buy Genuine B85 V-Belts

When selecting a supplier, consider the following factors:

• Genuine products with clear origin and traceability.
• Technical consultation for selecting the correct belt model.
• Adequate inventory and fast delivery capability.
• Warranty policies and reliable after-sales support.

Belota supplies a wide range of industrial power transmission components, including B85 V-belts from various reputable manufacturers. With extensive inventory and experienced technical staff, Belota assists customers in selecting the most suitable belt solutions for their transmission systems.
