The 880 TAB plastic conveyor chain is a flexible solution for industrial conveyor systems that require both straight and curved movement. With its beveled chain design and secure side tabs, this type of conveyor ensures smooth operation, product stability, and high load capacity - even at high-speed curves. It is widely used in beverage, food, pharmaceutical, and logistics industries. Let’s explore this product in more detail with Belota below.

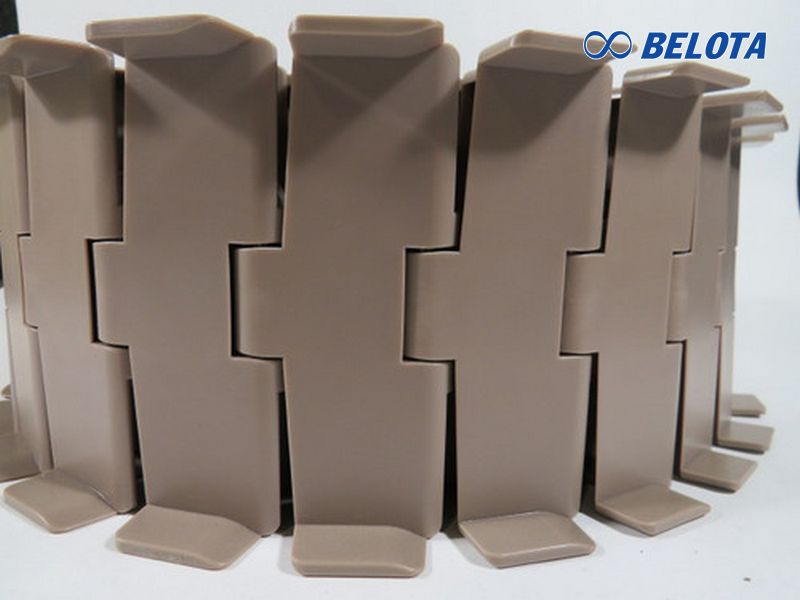

What is an 880 TAB Plastic Conveyor Chain?
The 880 TAB plastic conveyor chain is a side-flexing chain designed with beveled links and a special pin system that allows each link to rotate relative to the others, creating smooth curved movement.
Its most distinctive feature compared to other plastic conveyor chains is the TAB (side tab) design underneath the chain, which helps keep the chain securely engaged with the guide rail and prevents it from lifting or slipping during operation.
Standard Technical Specifications
- Chain type: 880 TAB (side-flexing plastic chain)
- Material: Low-friction POM (LF – Low Friction)
- Pin material: Stainless steel 304 (corrosion-resistant)
- Pitch: 38.1 mm (1.5 inch)
- Temperature range: -20°C to +90°C
- Minimum turning radius: 500 mm
- Weight: ~0.9 – 1.4 kg/m (depending on width)
- Speed range: 5 – 50 m/min
- Standard length: 1 box = 80 links = 3.048 m (10 ft)
Types of 880 Plastic Conveyor Chains
880 TAB (Table Top – Most Common)
- Equipped with side tabs underneath the chain
- Tabs engage with guide rails to prevent lifting at curves
- Most widely used in modern factories
880 BEV (Beveled Type)
- Features beveled edges instead of tabs
- Compatible with trapezoidal guide rails
- Easier to remove for cleaning
880 MAG (Magnetic Type)
- Uses magnetic pins or compatible design
- Works with magnetic guide tracks
- Allows quick installation and maintenance
880 EL Grip Top
- Surface coated with high-friction rubber
- Ideal for incline/decline conveying or wet products
Common 880 Chain Sizes
- 880 TAB K325: 82.6 mm (3.25”) – Min radius: 500 mm
- 880 TAB K450: 114.3 mm (4.50”) – Radius: 500–610 mm
- 880 TAB K600: 152.4 mm (6.00”) – Radius: 610 mm
- 880 TAB K750: 190.5 mm (7.50”) – Radius: 610 mm
Key Advantages
- Flexible layout design: Easily connects machines at right angles or parallel positions without turntables or complex transfer systems—something that straight-running chains like 820 or 821 cannot achieve.
- Stable product handling: Flat surface and optimized turning radius keep bottles and cans stable even at high speeds.
- Low friction performance: High-quality POM (LF) reduces wear between the chain and curved guide rails.
- Cost efficiency: Minimizes additional equipment and reduces maintenance costs in complex conveyor layouts.
Applications
The 880 plastic conveyor chain is widely used across industries thanks to its flexibility and smooth operation:
- Beverage industry: PET bottles, cans, beer, soft drinks
- Food industry: Sauce bottles, cooking oil, packaged goods
- Pharmaceutical industry: Medical liquids, alcohol, medicine bottles
- Logistics: Packaging lines and material handling systems
Buy Genuine 880 Conveyor Chain at Belota
Curved conveyor systems are more demanding than straight ones. Poor-quality materials can cause TAB breakage due to high friction at curves, leading to chain derailment and production downtime.
At Belota, we provide reliable solutions:
- Standard 880 TAB chains: Compatible with all common curved guide systems
- High-quality POM material: Excellent wear resistance and durability
- Radius consultation: Technical support to ensure correct curve fitting
- Multiple brands: Rexnord, System Plast, Hongsbelt, Uni Chains
📞 Hotline/Zalo: 0917 657 946
Conclusion
The 880 TAB plastic conveyor chain stands out with its flexible side-flexing capability, durable POM material, and secure TAB design. It ensures stable operation, protects products, and extends service life. At Belota, customers receive high-quality chains, expert consultation, and reliable solutions to optimize any curved conveyor system.
