In modern production lines, the Eye-Flex mesh conveyor belt plays a critical role in drying, baking, and freezing processes thanks to its excellent heat resistance, heavy load capacity, and outstanding durability. With its open mesh design that enhances airflow and heat transfer, this conveyor ensures stable performance even in harsh environments. As a specialist in custom industrial conveyor fabrication, BELOTA delivers tailored solutions to meet precise production requirements.

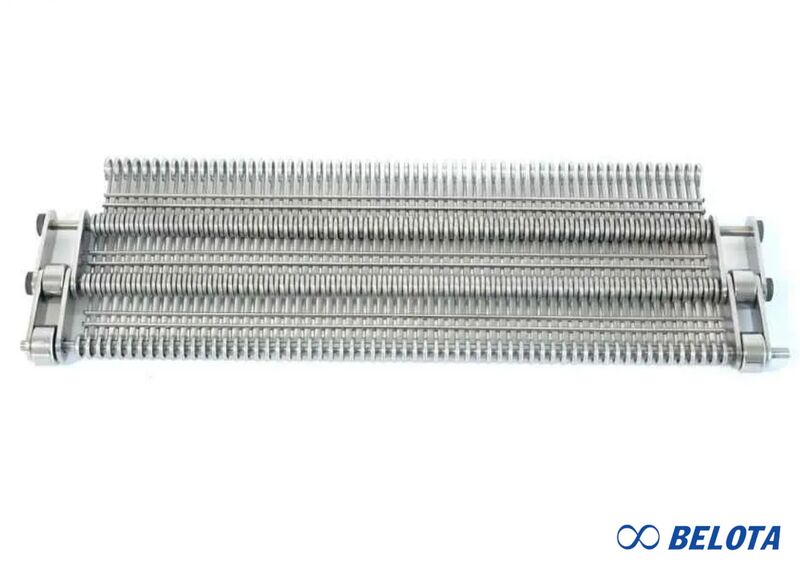

What is an Eye-Flex Mesh Conveyor Belt?

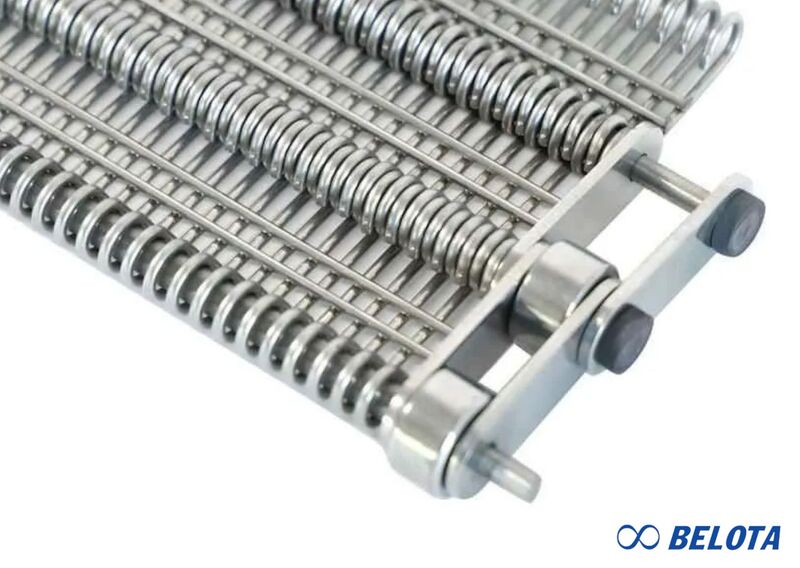

An Eye-Flex mesh conveyor belt is a type of stainless steel mesh conveyor, constructed by weaving or welding metal wires into an open-grid structure with a flat surface. The mesh openings typically have a narrow rectangular or eye-shaped pattern.

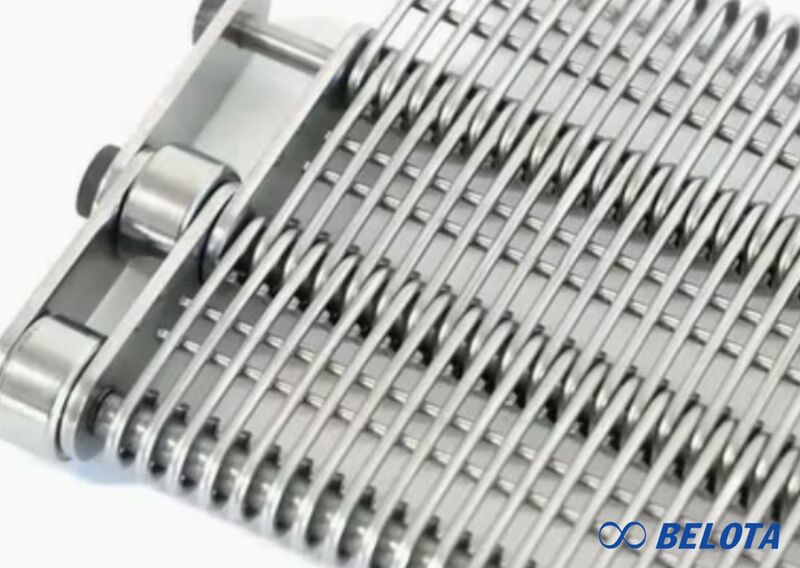

This conveyor is designed for heavy-duty applications, capable of handling high loads and operating reliably in extreme environments without significant deformation or elongation.

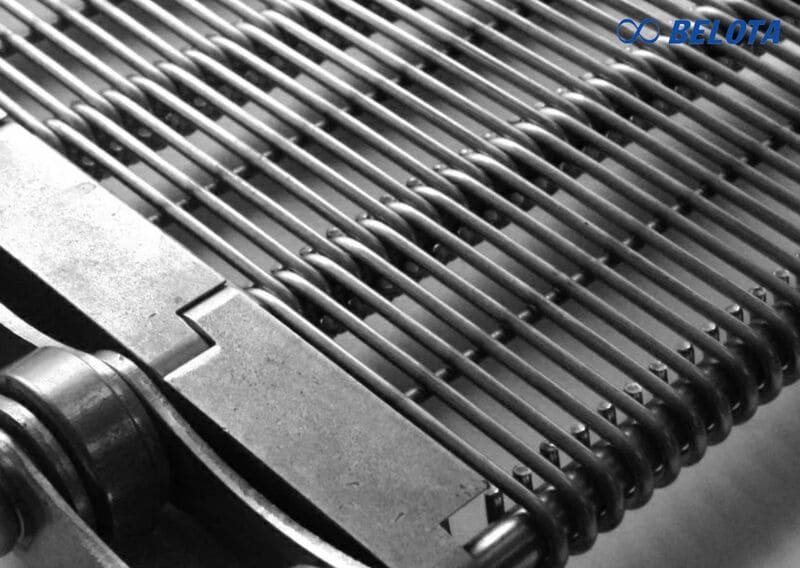

Technical Specifications

  • Material: Stainless steel 304, stainless steel 316, galvanized steel
  • Mesh pitch: 15 mm to 100 mm
  • Width: Customizable, up to 3,960 mm
  • Weaving ratio: Commonly 2:1 (e.g., 12x6 mm, 30x15 mm, 20x10 mm)
  • Wire diameter: 1 mm – 3 mm
  • Connecting rod diameter: 3.2 mm – 8.0 mm
  • Weight: From 5 kg to several hundred kg depending on design
  • Edge options: Chain edge, reinforcing plates, or hollow pin chains
  • Accessories: Cross flights for incline conveying, side guards to prevent product spillage

Note: The 2:1 weaving ratio is the most common, but can be customized (e.g., 25/20 or 15/10) depending on product size and application.

Specifications by Configuration

Depending on how the mesh opening is fixed, specifications may vary:

  • Without spacers: Pitch 15.875–100 mm | Gap 1.40–4.00 mm | Straight modular design, easy to clean
  • Underwelded wires: Pitch 15.875–75 mm | Gap 2.00–3.30 mm | 1–3 support wires underneath, max gap up to 50 mm
  • Rings (spacers): Pitch 25–75 mm | Gap 4.00–8.00 mm | Adjustable increments (2.0 / 2.5 / 4.0 mm)
  • Springs: Pitch 25–100 mm | Gap 7.00–12.00 mm | Standard openings: 8, 10, 12, 15, 17.5, 20 mm

Common Types of Mesh Conveyor Belts

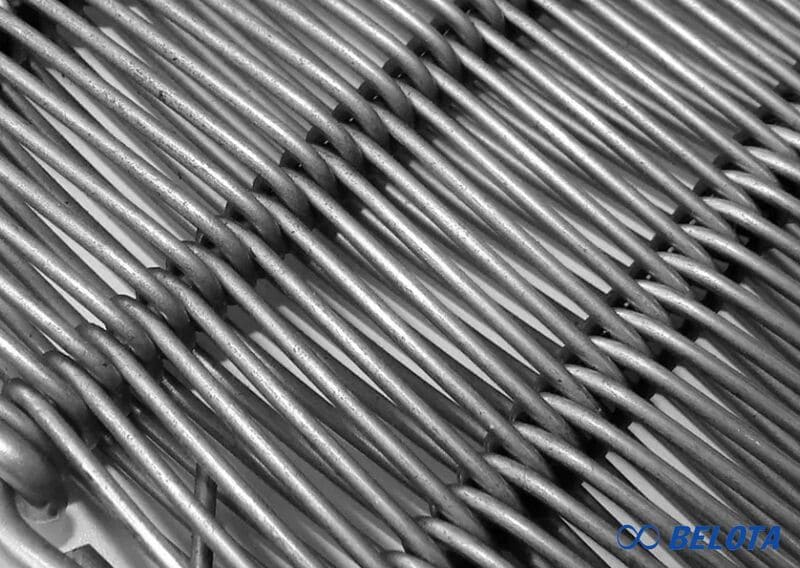

Chain Edge Mesh Belt

  • Ideal for heavy-duty and continuous 24/7 operations.
  • Combines mesh belt with side chains for stable, non-slip drive
  • Heat resistance up to 538°C (1000°F)
  • Modular design allows easy replacement and reduced maintenance cost

Fixed Rod Welded Mesh Belt

  • Known for rigidity and deformation resistance.
  • Cross rods welded directly to the mesh
  • Provides a completely flat and stable conveying surface

Common in baking ovens and vegetable washing systems, and can be combined with Ladder Belt designs to enhance drainage and heat transfer

Other Variants

  • Hooked edge mesh belt: Flexible structure, easy manual assembly and disassembly
  • Curved mesh belt: Designed for product direction changes in limited space

Advantages of Eye-Flex Mesh Conveyor Belt

  • High load capacity and durability: Stainless steel construction withstands heavy loads and impact
  • Flexible and customizable design: Adjustable mesh openings and optional accessories
  • Flat and open surface: Ensures product stability and efficient airflow/liquid flow
  • Hygienic design: Open structure reduces debris buildup and simplifies cleaning
  • Stable drive system: Sprocket-driven system prevents slipping and misalignment
  • Excellent thermal performance: Maintains stability under high heat and freezing conditions; compared to Flat Wire Balance Weave belts, its rigid modular structure reduces sagging under combined heat and heavy loads
  • Easy maintenance: Modular design allows quick part replacement, minimizing downtime

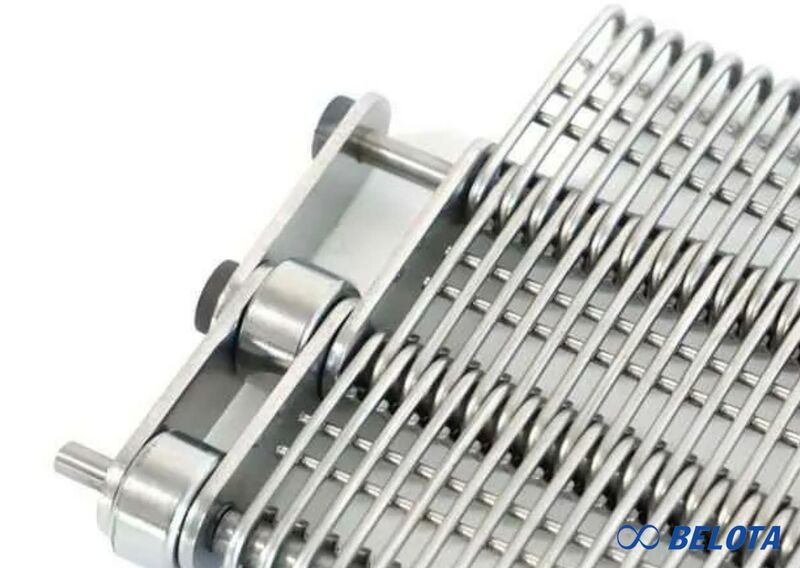

Industries Using Mesh Conveyor Belts

  • Food processing: Meat, seafood, vegetables; cooking, frying, baking, freezing, cooling
  • Heavy industry: Heat treatment, degreasing, washing, drying
  • Environmental systems: Waterway cleaning, fish farms, hydroelectric plants
  • Paper & textile: Material handling in humid environments

BELOTA – Reliable Mesh Conveyor Belt Manufacturer

BELOTA specializes in custom manufacturing of mesh conveyor belts for various industrial applications:

  • Engineering and consulting solutions tailored to load and working conditions
  • Use of certified stainless steel 304/316 for durability and corrosion resistance
  • Precision fabrication customized to each system’s specifications
  • Competitive pricing with installation support and long-term warranty

With extensive experience and strong technical capability, BELOTA delivers durable, stable, and cost-effective conveyor solutions for modern industries.
