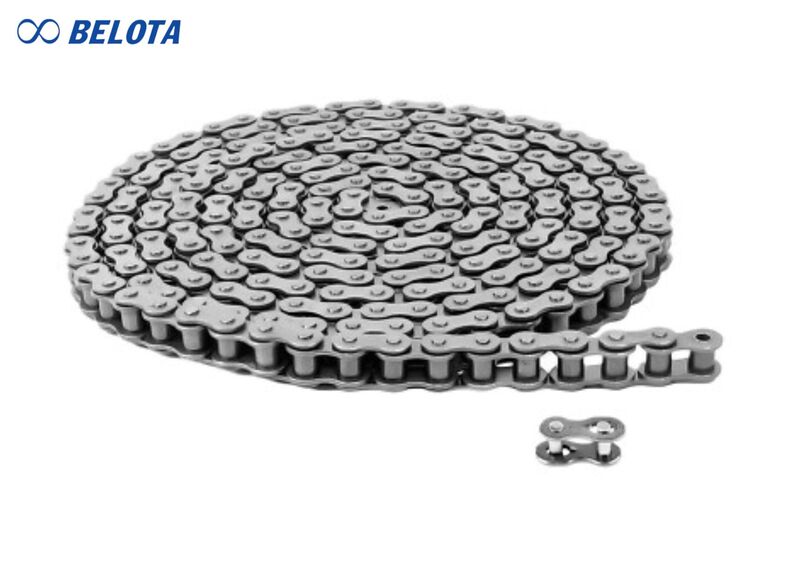

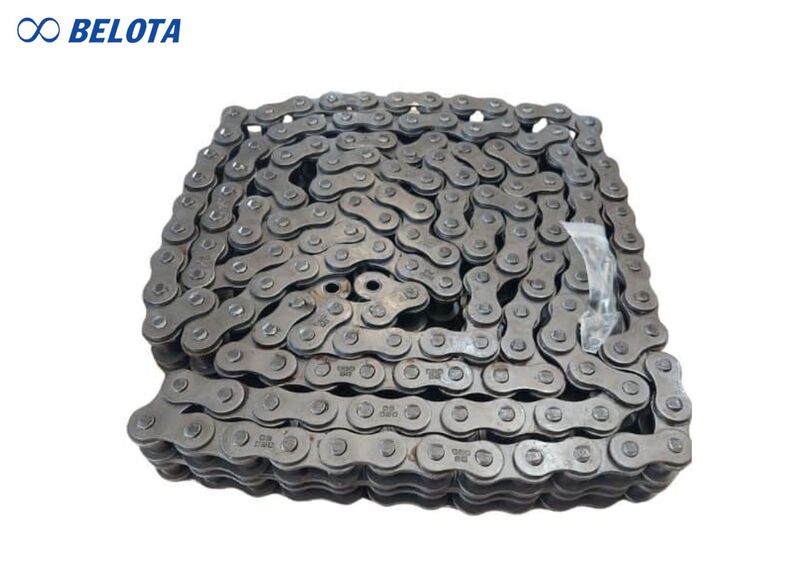

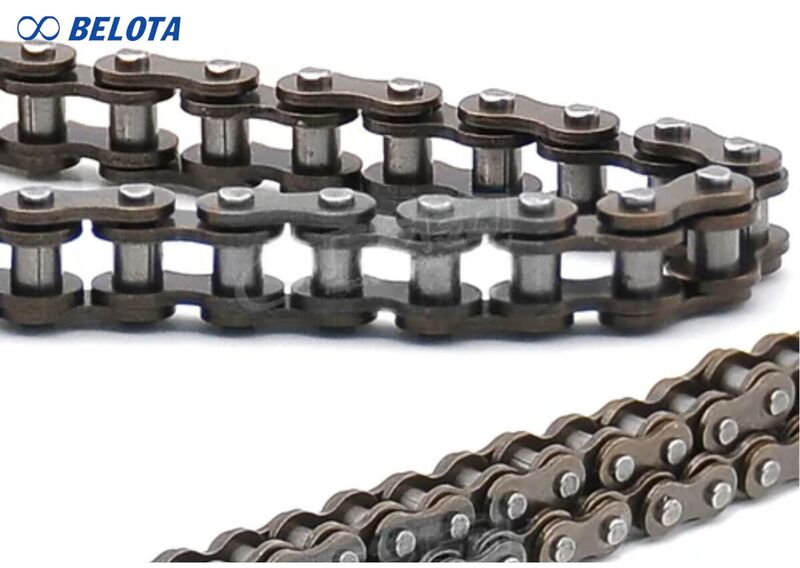

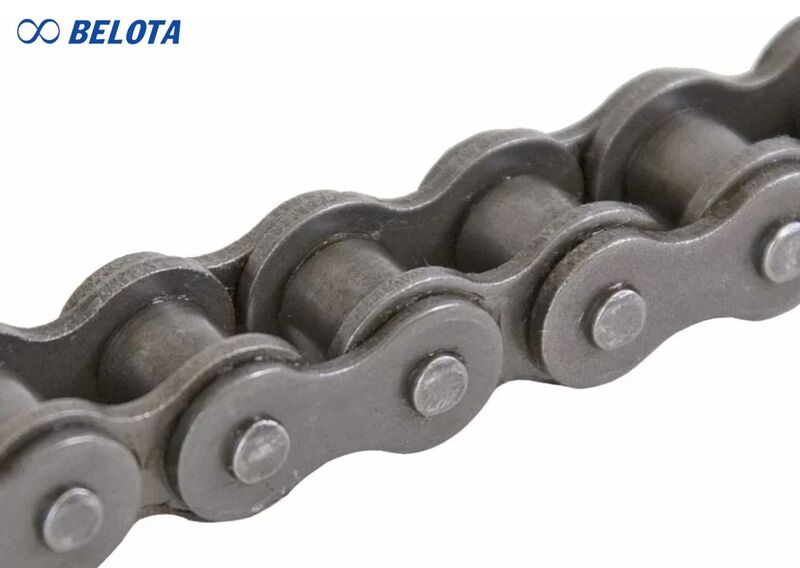

ANSI 35 Roller Chain

Technical Specifications of 35 Chain (ANSI 35):

• Chain type: 35-1 (single strand), 35-2 (double strand), 35-3 (triple strand)

• Pitch (P): 9.525 mm

• Inner width (W): 4.77 mm

• Roller/bush diameter (D): 5.08 mm

• Pin diameter (d): 3.58 mm

• Side plate thickness (T): 1.30 mm

• Side plate height (H): 9.0 mm

• Overall width (L2): 12.0 mm (35-1) | 22.5 mm (35-2) | 32.7 mm (35-3)

• Transverse pitch (C): 10.13 mm (applicable to 35-2 and 35-3)

• Average tensile strength: 10.1 kN (35-1) | 18.0 kN (35-2) | 28.0 kN (35-3)

• Minimum breaking load: 7.9 kN | 15.8 kN | 23.7 kN

• Weight: 0.33 kg/m (35-1) | 0.66 kg/m (35-2) | 1.01 kg/m (35-3)
