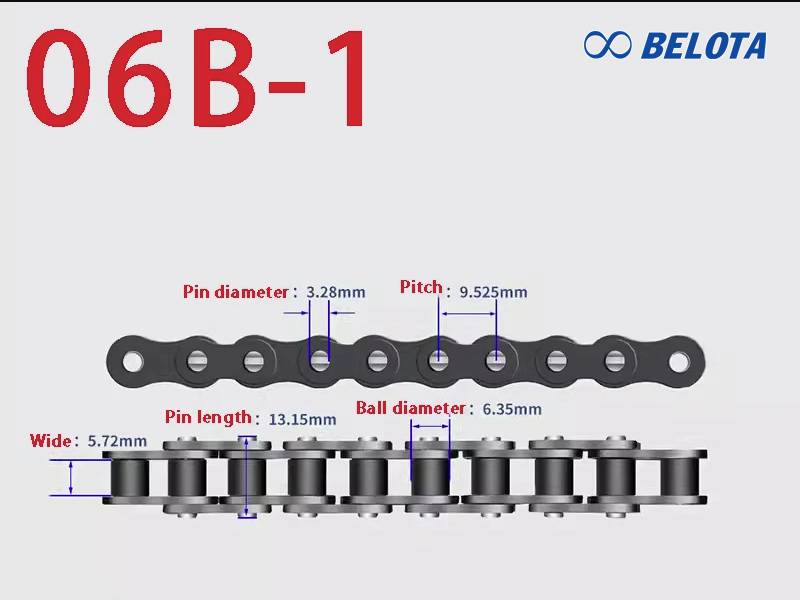

Technical Specifications of 06B Roller Chain (ISO 606 / DIN 8187):
-

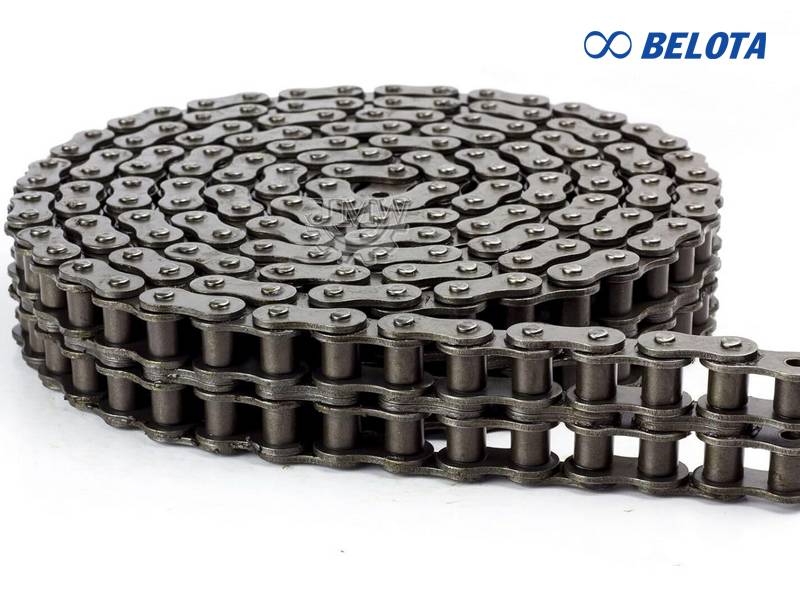

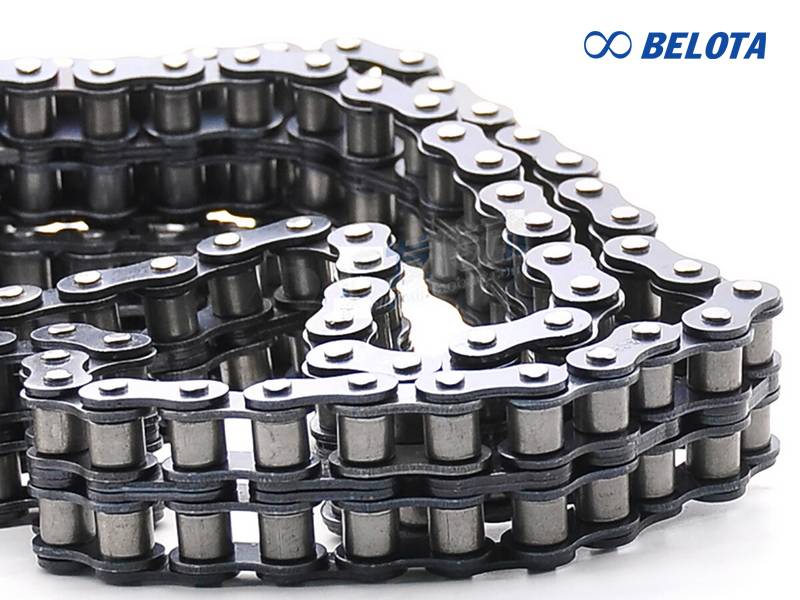

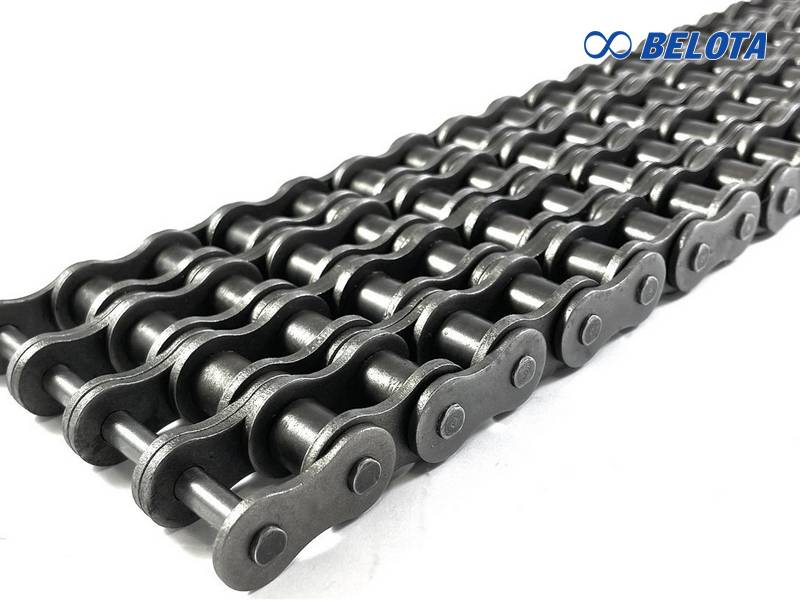

Chain designation: 06B-1 (single strand), 06B-2 (double strand), 06B-3 (triple strand)
-
Pitch (P): 9.525 mm
-
Inner width (W / b1): 5.72 mm
-
Roller diameter (D / d1): 6.35 mm
-
Pin diameter (d / d2): 3.28 mm
-
Plate thickness (T): 1.30 mm
-
Plate height (H / g): 8.26 mm
-
Overall width (L max): 06B-1: 13.5 mm | 06B-2: 23.8 mm | 06B-3: 34.0 mm
-
Strand spacing (Pt / C): 06B-2 & 06B-3: 10.24 mm
-
Minimum tensile strength: 06B-1: 9.0 kN | 06B-2: 16.9 kN | 06B-3: 24.9 kN
-
Weight: 06B-1: 0.41 kg/m | 06B-2: 0.78 kg/m | 06B-3: 1.18 kg/m
