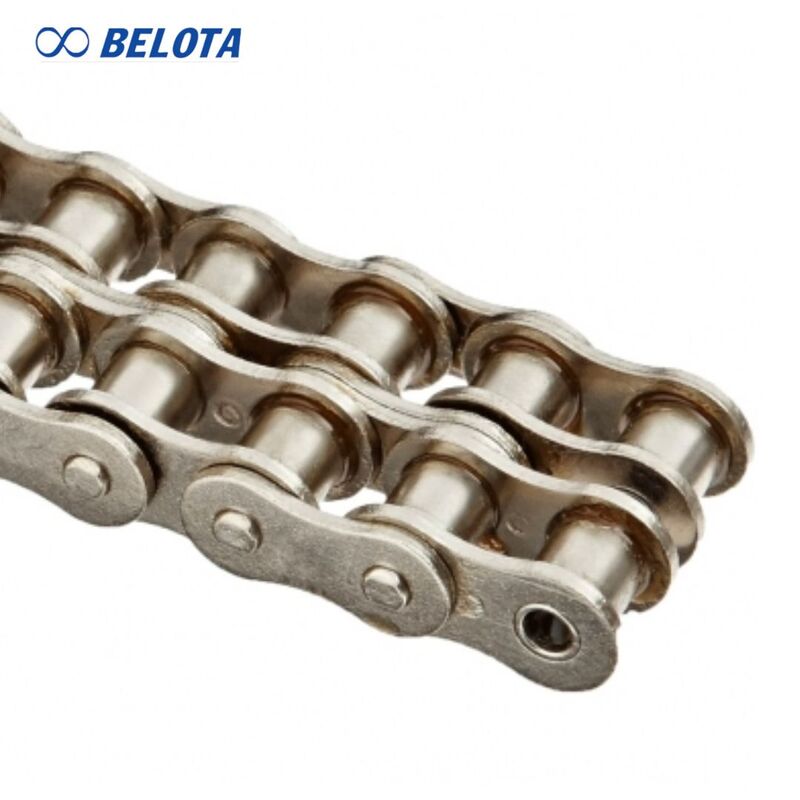

10B roller chain is a standard industrial roller chain widely used in power transmission systems and conveyor applications thanks to its stable load capacity, durable operation, and easy replacement. Manufactured according to ISO/BS standards with synchronized technical specifications, 10B chain is ideal for continuous operation in demanding industrial environments such as woodworking, packaging, logistics, and mechanical manufacturing.

This article provides detailed information about the features, technical specifications, and practical applications of 10B chain to help businesses choose the most suitable chain for their systems.

Features of 10B Roller Chain

Manufactured to international standards: Produced according to ISO/BS standards for high precision and compatibility with various industrial drive systems.

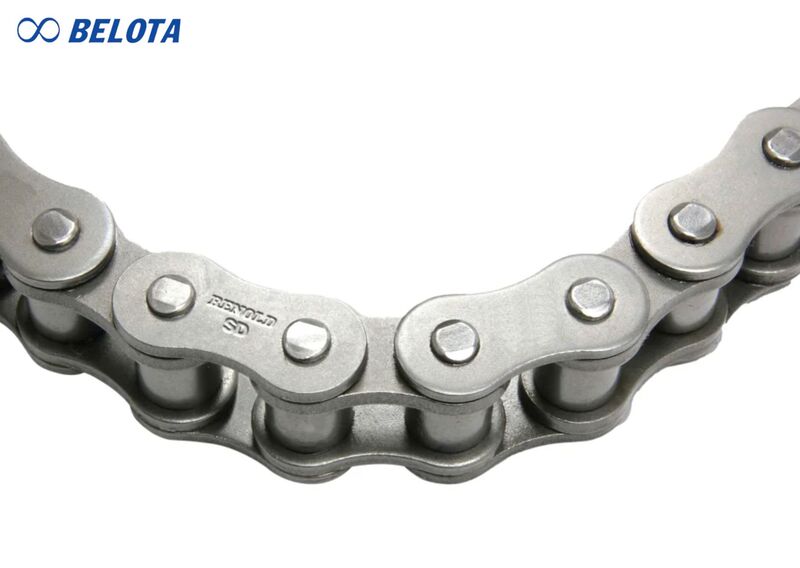

Strong structure and high durability: Made from high-quality alloy steel with heat treatment for enhanced hardness, ensuring excellent wear resistance and load capacity.

Stable load-bearing performance: Suitable for conveyor systems and transmission applications operating continuously under medium to heavy loads.

Smooth and low-vibration operation: Precision chain link design helps ensure smooth transmission, reduced noise, and longer equipment lifespan.

Flexible applications: Widely used in industrial conveyors, processing machines, production lines, packaging systems, and automation equipment.

Easy installation and maintenance: Standardized structure allows quick replacement, reducing maintenance time and operating costs.

Effective corrosion resistance: Can be zinc-plated or anti-rust coated for use in humid, dusty, or mildly chemical environments.

Optimized system performance: Lightweight and efficient design reduces machine load and improves overall operational efficiency.

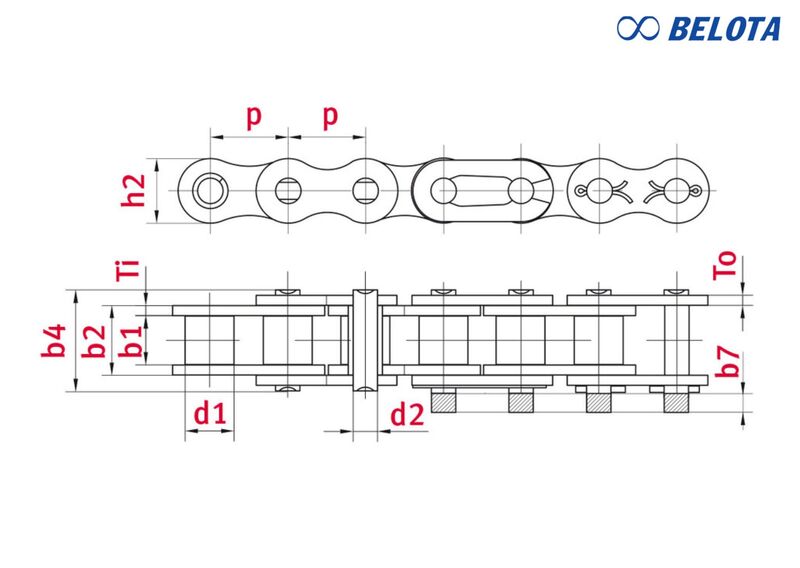

Standard Technical Specifications

The table below compares the specifications of single-strand (1-row), double-strand (2-row), and triple-strand (3-row) 10B chains.

Specification Group Symbol 10B-1 10B-2 10B-3
Chain Pitch P 15.875 15.875 15.875
Inner Width W (b1) 9.65 9.65 9.65
Roller Diameter D (d1) 10.16 10.16 10.16
Pin Diameter d (d2) 5.08 5.08 5.08
Plate Thickness T 1.70 1.70 1.70
Plate Height H (g) 14.7 14.7 14.7
Chain Width L2 19.5 36.1 52.7
Overall Width L 20.9 37.5 54.1
Transverse Pitch C (Pt) – 16.59 16.59
Tensile Strength kN 22.4 44.5 66.7
Maximum Load kN 27.5 56.2 84.5
Weight kg/m 0.93 1.84 2.77

Important Note: 10B chain has the same pitch size (15.875mm) as ANSI 50 chain. However, the inner width, pin diameter, and plate thickness are different. Therefore, 10B chain is not interchangeable with ANSI 50 sprockets and vice versa.

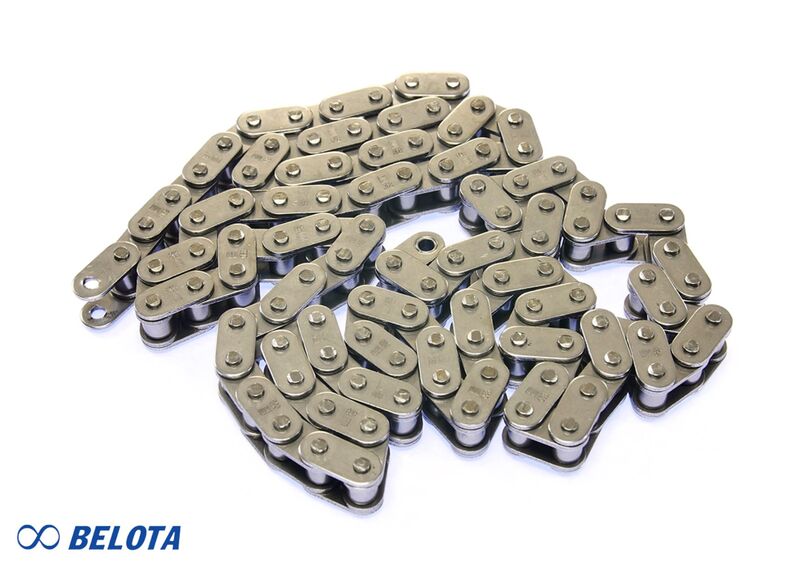

Common Applications of 10B Roller Chain

Wood Processing Industry

Used in:

  • Wood cutting machines
  • Timber conveying systems
  • Suitable for dusty environments with impact loads from sawdust and wood materials.

Paper & Packaging Industry

Applied in:

  • Paper roll handling systems
  • Large industrial printing machines

Pallet Conveyor Systems

Double-strand and triple-strand 10B chains are commonly used in:

  • Chain conveyors
  • Roller conveyors
  • Heavy-duty pallet handling systems in logistics warehouses

Agricultural Machinery

Used in:

  • Harvesters
  • Tractors
  • Agricultural drive systems

Often equipped with attachment plates for scraper bar installation.

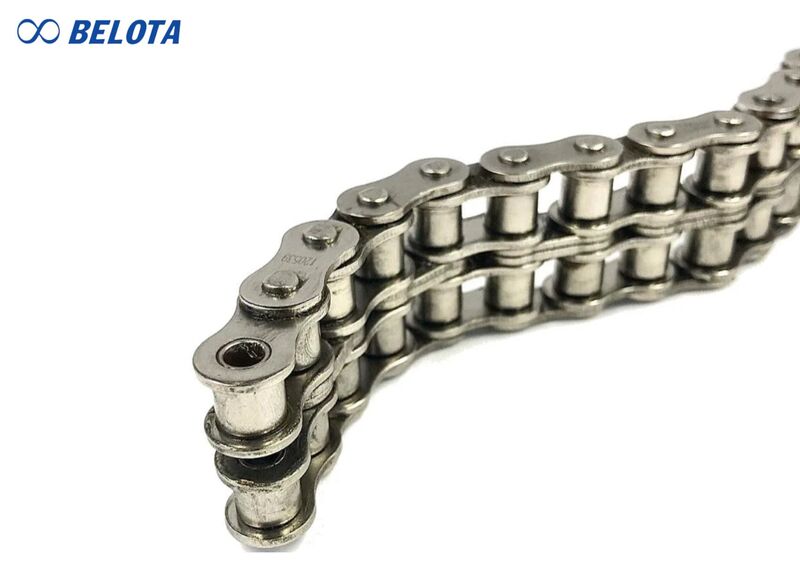

Where to Buy Genuine 10B Roller Chain?

Using low-quality 10B chain can lead to serious problems such as:

  • Rapid chain elongation
  • Sprocket wear
  • Unexpected chain breakage
  • Production line downtime

BELOTA provides comprehensive 10B chain solutions with:

  • Genuine quality products
  • Ready stock availability
  • Fast delivery
  • Competitive pricing

Contact BELOTA via Hotline/Zalo: 0917 657 946 for technical consultation and the best quotation for your application.

Other ISO DIN Chain Sizes

Other common ISO DIN roller chain sizes include:

  • 08B Chain
  • 06B Chain
  • 05B Chain
  • 04B Chain
  • and many more.
